Vado DX Photon 1 Outlet 2 Handle Thermostatic Concealed Shower Valve - Polished Chrome

The Vado DX Photon 1 Outlet 2 Handle Thermostatic Concealed Shower Valve in Polished Chrome is a premium solution for precise shower temperature control and modern bathroom aesthetics. Designed for vertical wall mounting, this valve features a rectangular backplate with two handles—one for thermostatic temperature control and one for water flow—offering smooth and reliable operation. Compatible with gravity-fed, pumped, combination boiler, and pressurised plumbing systems, it ensures versatility across most bathroom setups. The valve incorporates a high-quality thermostatic cartridge (V-704-34S) and flow cartridge (C-803-33X/3X) for consistent temperature performance and safety. Installation is straightforward with wall mount tolerances of 70–95mm and an optimum depth of 82mm. Additionally, a bleed valve facilitates system flushing during installation. Finished in polished chrome, this valve delivers sleek modern style, durable construction, and comes with a 15-year guarantee.

Specifications

• Guarantee: 15 Years
• Product type: Concealed Shower Valve
• Brand: Vado
• Collection: DX Photon
• Colour: Polished Chrome
• Style: Modern
• Shape: Rectangular
• Mounting: Wall
• Number of Outlets: 1
• Orientation: Vertical
• Number of Handles: 2
• Handle Type: Lever/Knob
• Minimum Operating Pressure: 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath)
• Maximum Operating Pressure: 5.0 Bar HP

Special Features

• Easy to install and use
• Images are shown for illustration purposes only

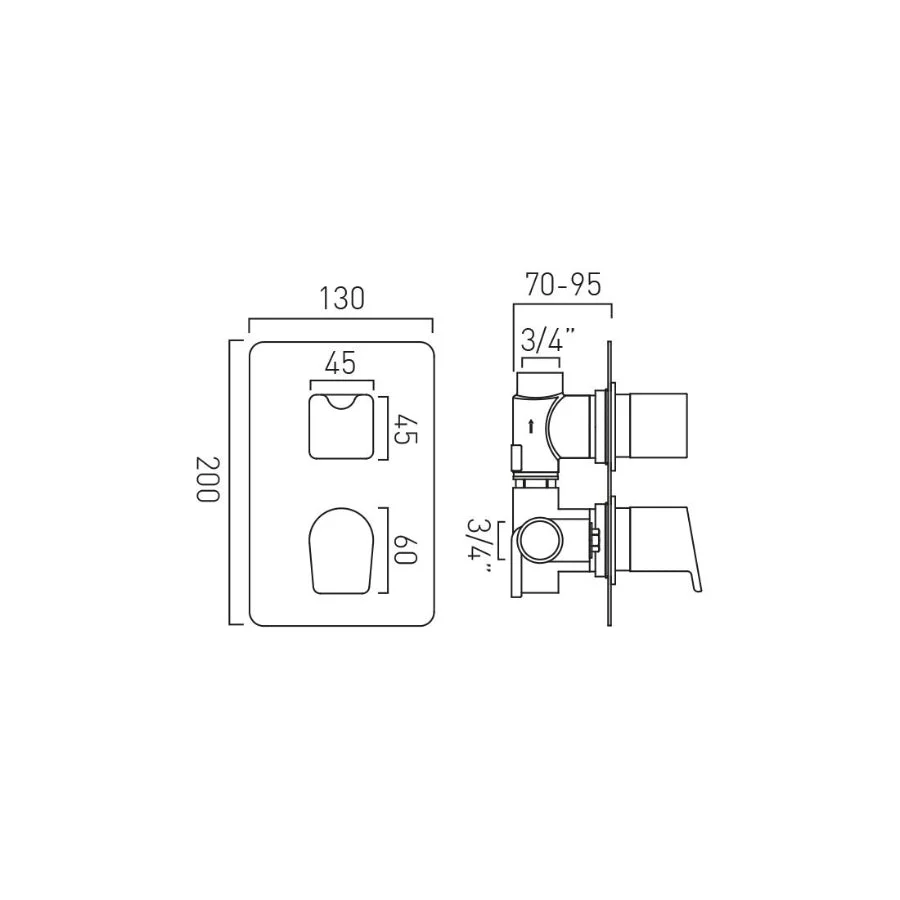

• Installation Tolerances: min-max wall mount 70-95mm optimum installation depth 82mm
• Connections/Fittings: 2 x 3/4” female inlets 2 x 3/4” female outlets
• Thermostatic cartridge V-704-34S flow cartridge C-803-33X/3X
• Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
• With Rectangular Backplate
• Bleed Valve for System Flush on Installation
