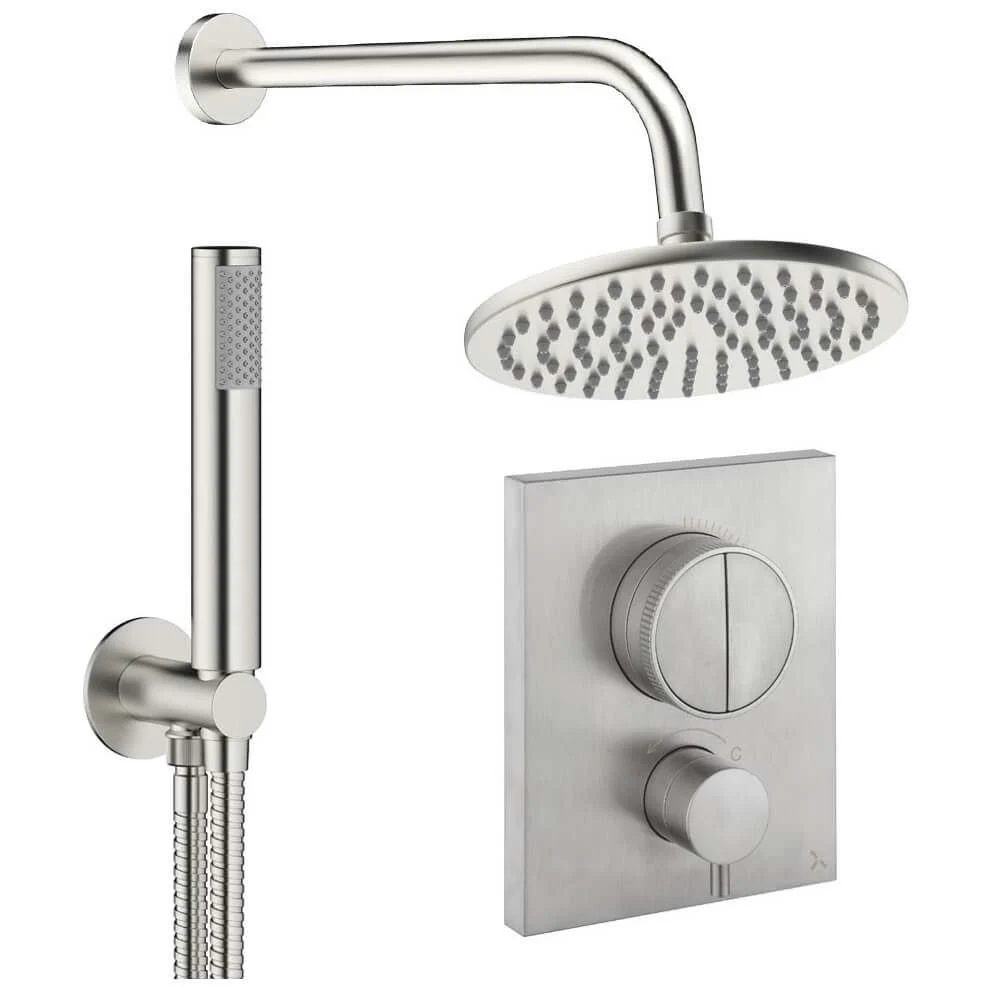

Crosswater Crossbox Push Shower Set 1

The Crosswater Crossbox Push Shower Set 1 is a stylish and efficient shower solution designed to deliver modern performance and convenience in contemporary bathrooms. Combining sleek design with advanced engineering, this two-outlet shower system offers reliable temperature control, flexible installation, and a comfortable showering experience. For additional convenience during installation, the system includes a flush-block testing plate that enables easy pressure testing before final installation. The valve also supports both front and rear mounting options, giving installers greater flexibility depending on the bathroom layout. A built-in quick flow reversal feature allows the water feeds to be corrected easily if hot and cold connections are accidentally installed the wrong way around.

Completing the set is a modern shower handset with a minimalist round design. The handset features a single spray pattern and is supplied with a durable hose and a wall-mounted outlet with an integrated holder for convenient storage. With a handset height of 194.5mm, it offers comfortable handling and practical everyday use. The handset is WRAS-approved and suitable for both low and high water pressure systems, operating within a range of 0.2 to 5.0 bar. The Crosswater Crossbox Push Shower Set 1 combines elegant design, advanced thermostatic technology, and flexible installation features to create a dependable and stylish shower solution suitable for a wide range of modern bathrooms.

Specifications:

• Warranty: 15 Years
• Product Type: Shower Set
• Brand: Crosswater
• Collection: Crossbox
• Style: Modern
• Material: Brass
• Outlets: 2
• Handles: 2
• Handle Type: Knob
• Minimum Operating Water Pressure: 1 Bar

Special Features:

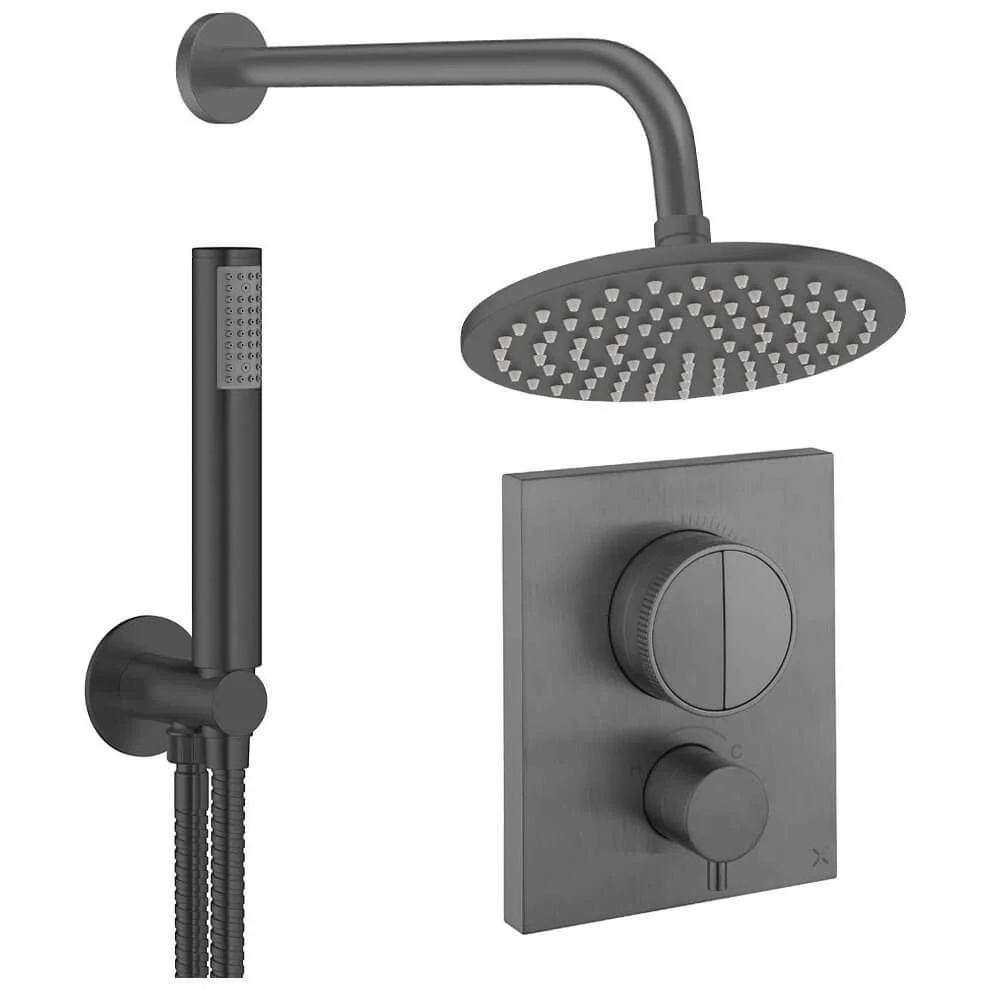

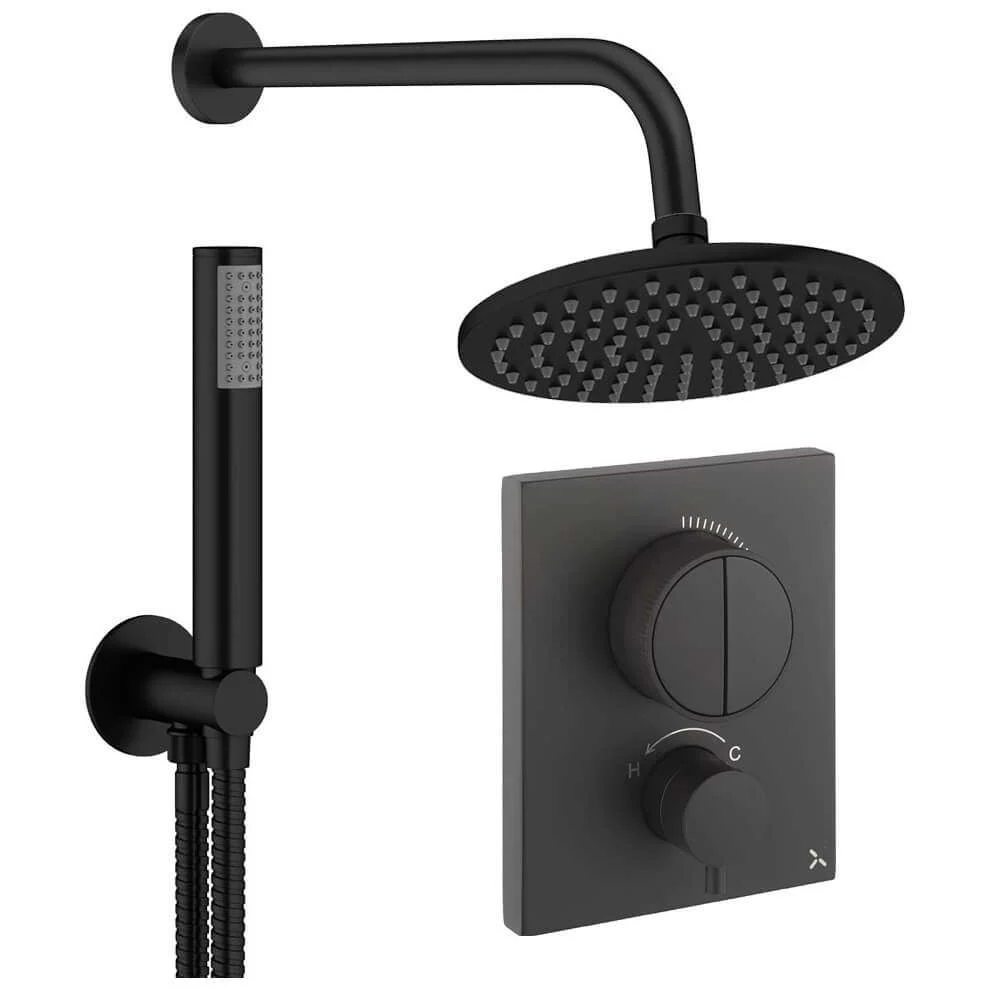

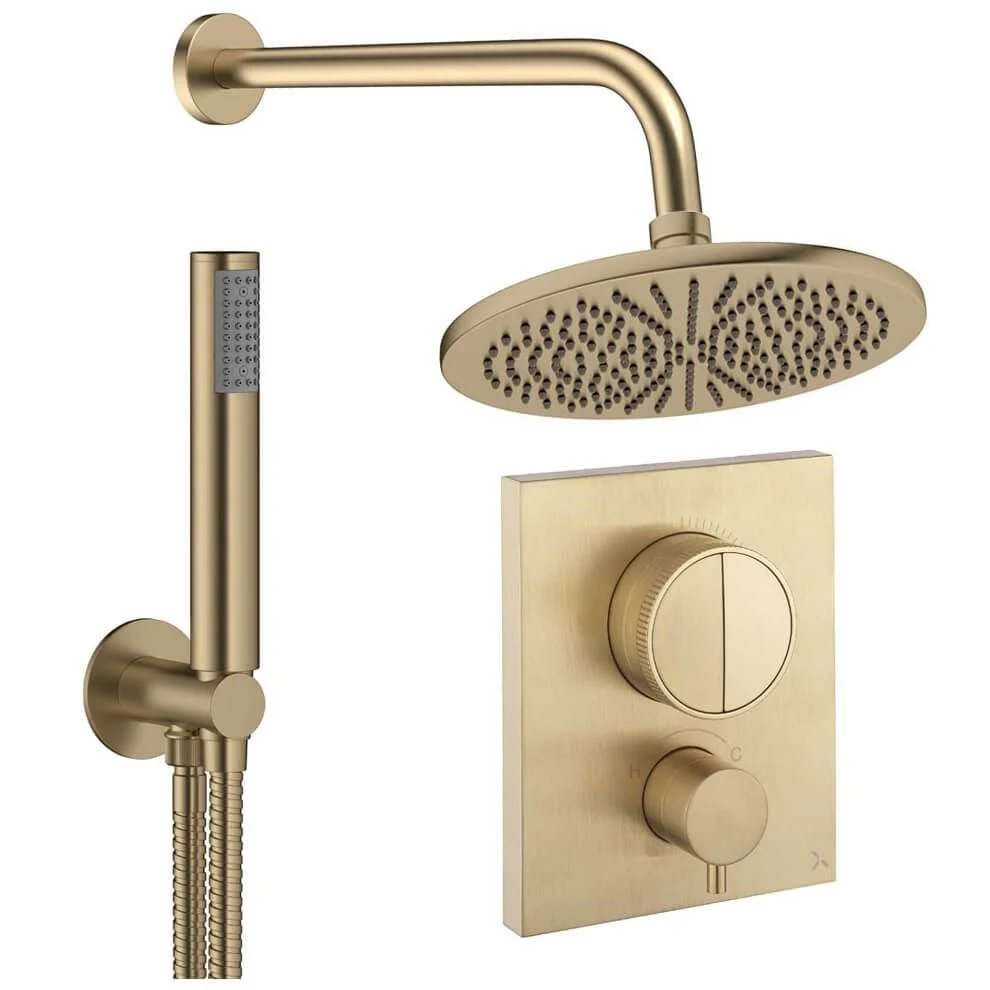

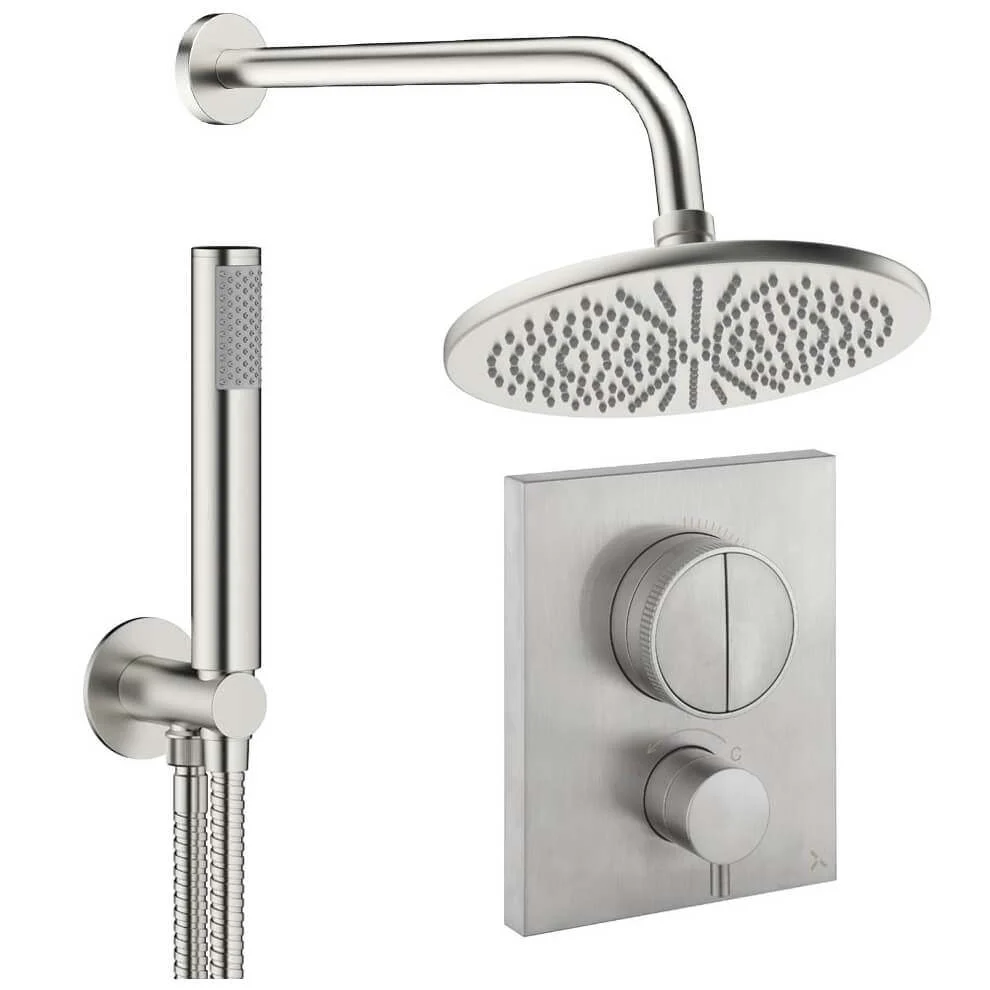

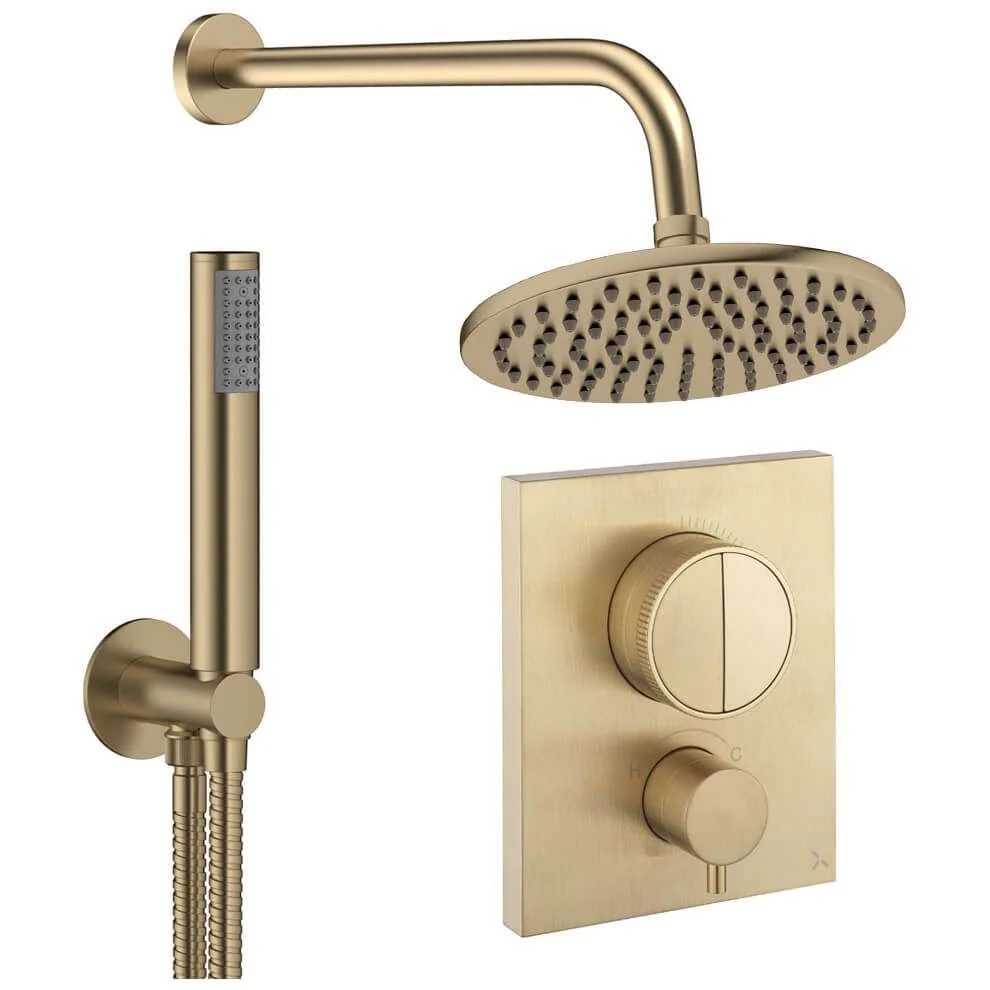

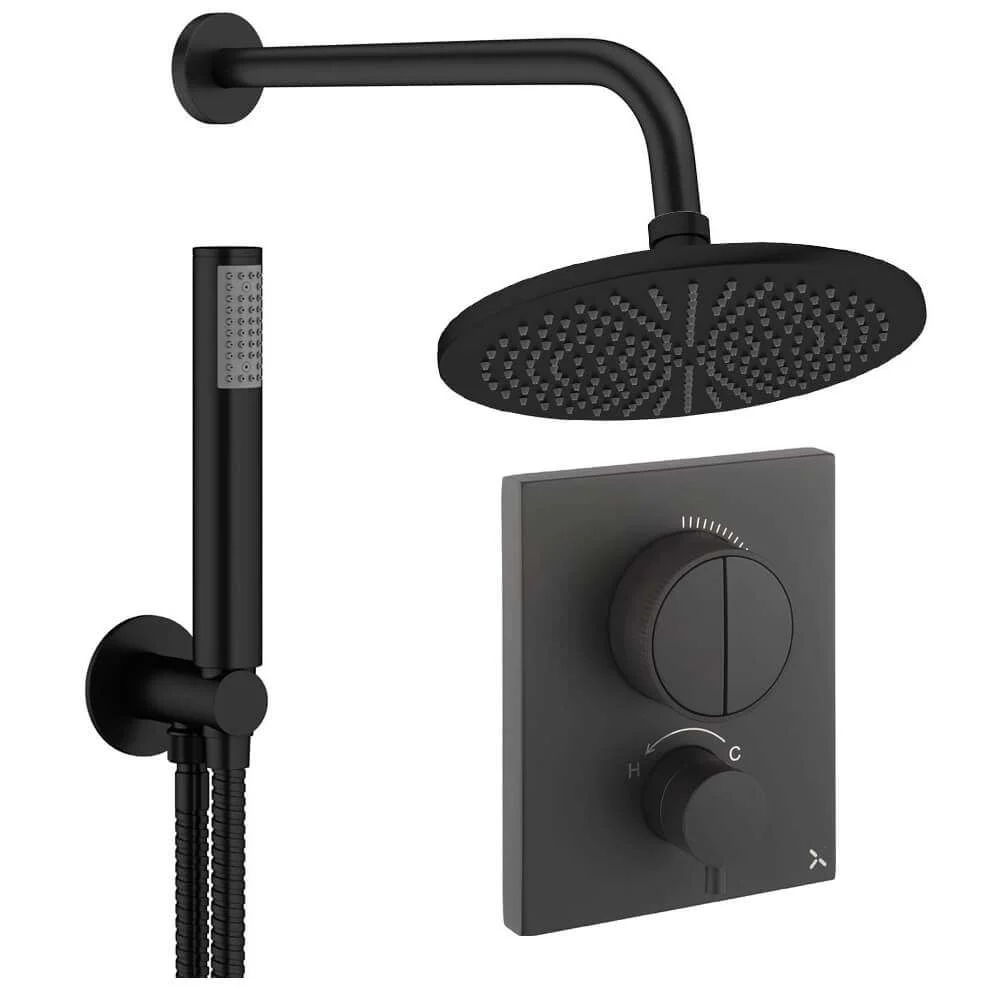

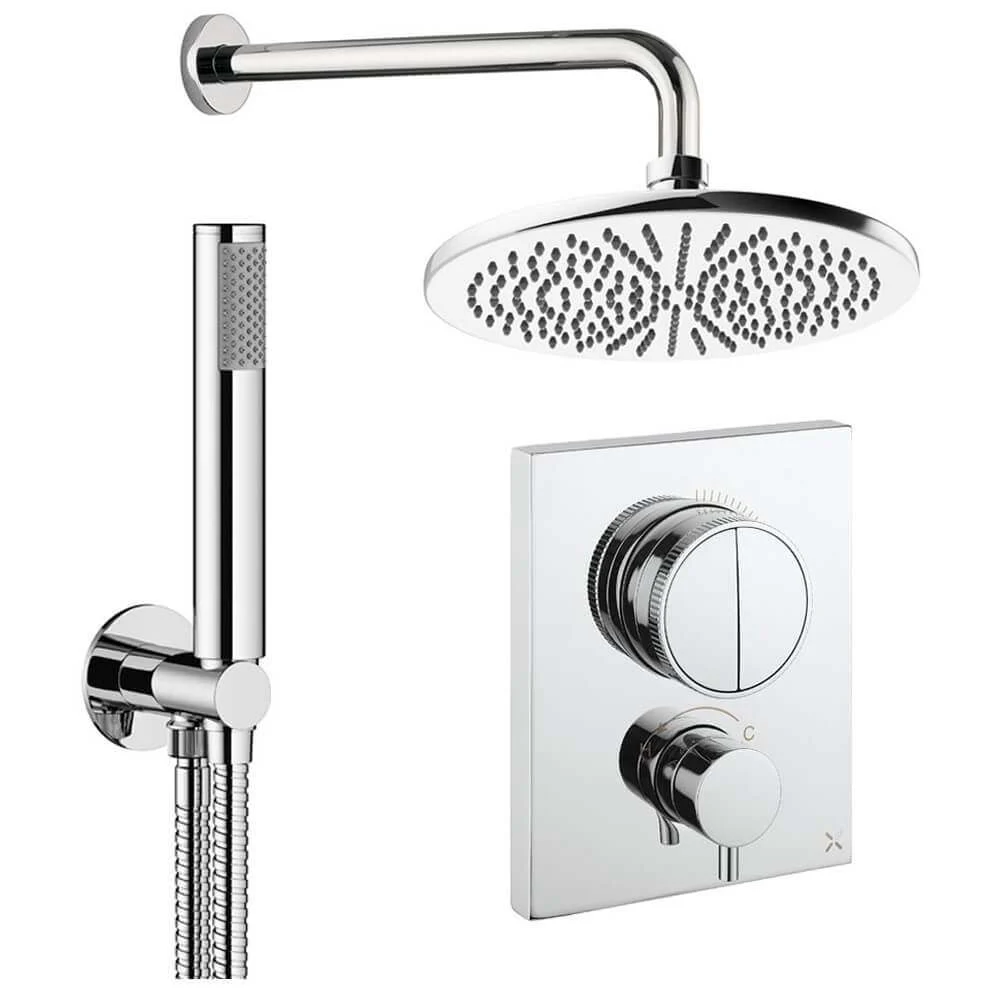

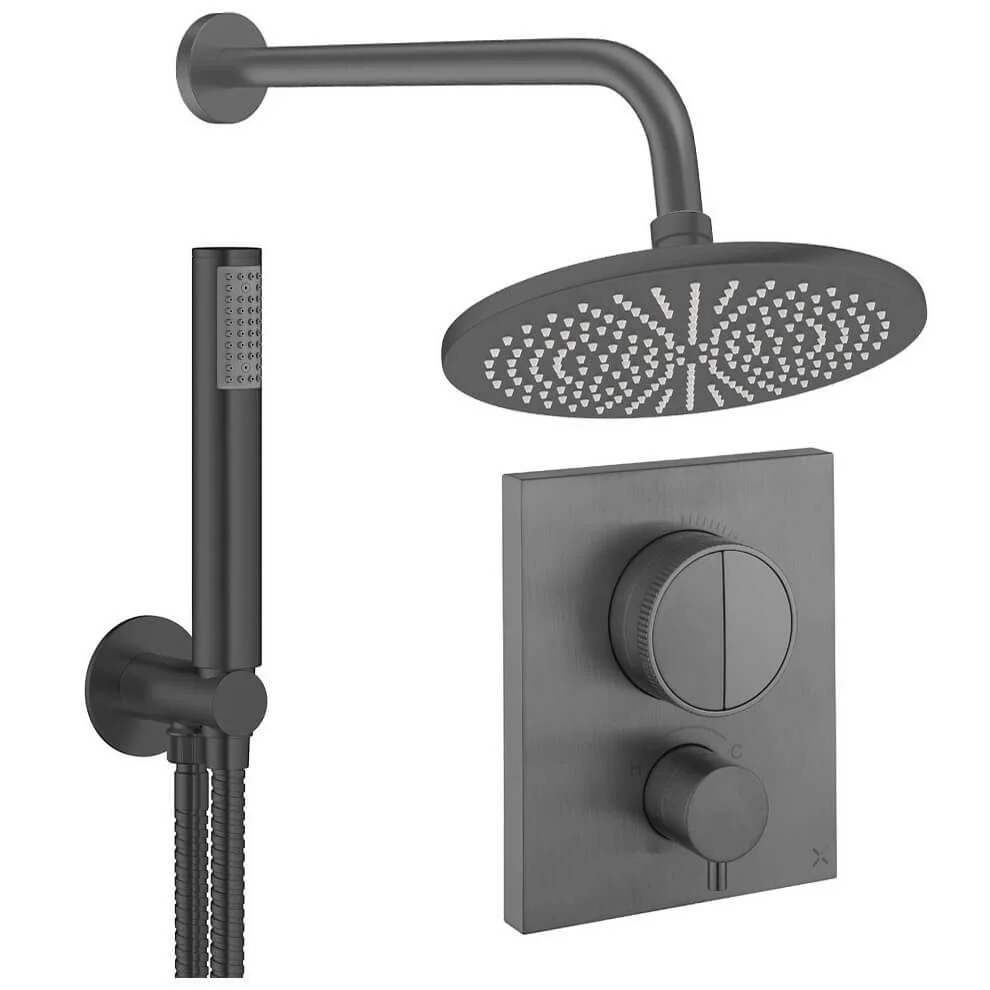

• Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Shower Kit: Handset and Hose, Fixed Shower Head and Shower Arm


Details of Thermostatic Shower Valve:

• Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
• The Flush-Block Testing Plate Included for Easy Pressure Testing
• Size: 130mm x 160mm [Width x Height]
• Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
• Front or Rear Mounting Options Increase Ease of Installation and Flexibility
• Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
• Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
• Suitable for High Water Pressure

Details of Crossbox:

• Suitable for High Water Pressure System
• Works On a Minimum of 1.0 Bar or Above Water Pressure

Details of Shower Handset:

• Single Spray Pattern
• Minimalist Design
• Modern Aesthetics with Functional Design
• Ideal for Contemporary Bathrooms
• A Slimline Round Shower Handset, a Durable Hose, and a Wall-Mounted Outlet with an Integrated Holder
• Handset Height: 194.5mm
• WRAS-Approved
• Suitable for Low and High Water Pressure Systems
• Works on a Minimum of 0.2 Bar to 5.0 Bar Water Pressure

Details of Shower Head

• WRAS and KIWA-Approved
• Choice of Diameters: 200mm, 300mm
• Head Thickness: 5.8mm
• Inlet Connection: G1/2 Inch
• Requires a Minimum of 1.0 Bar or Above Water Pressure

Details of Shower Arm:

• KIWA-Approved
• Length: 330mm
• Inlet/Outlet Connection: G1/2-Inch
• Suitable for All Crosswater Fixed Heads
