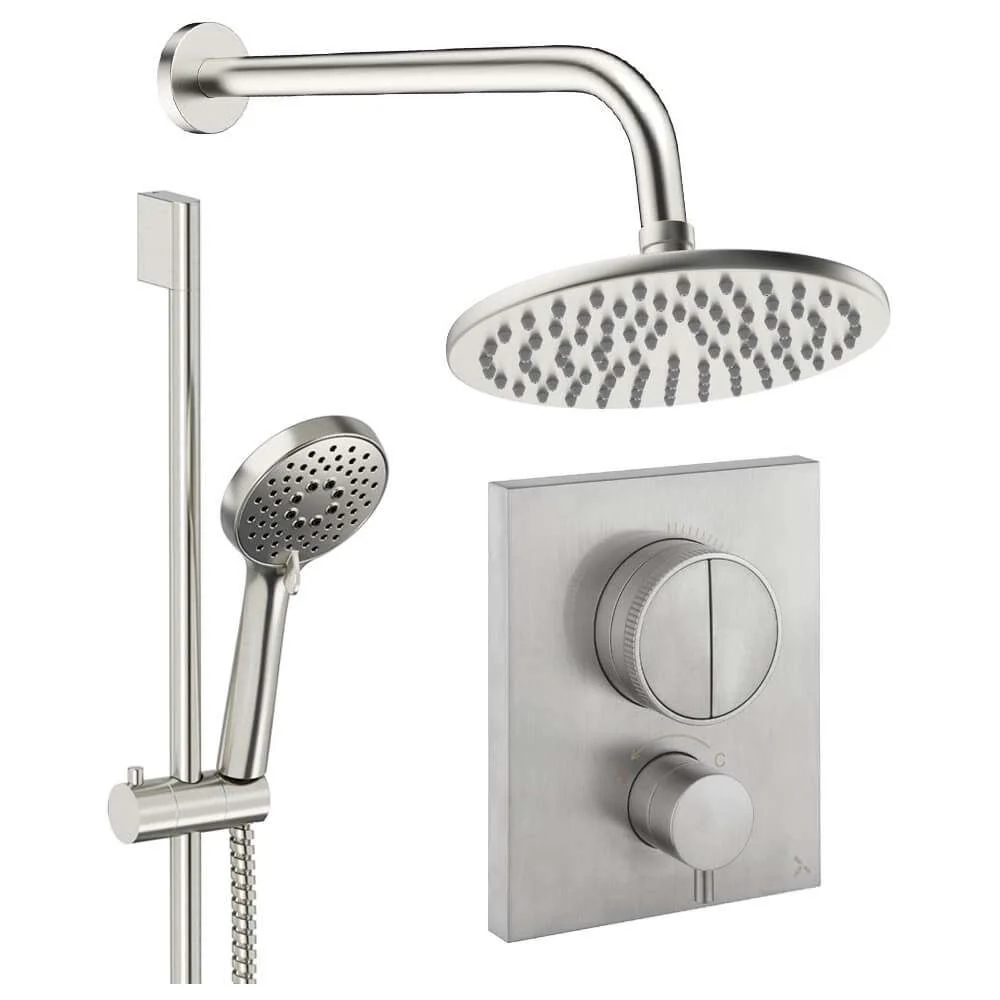

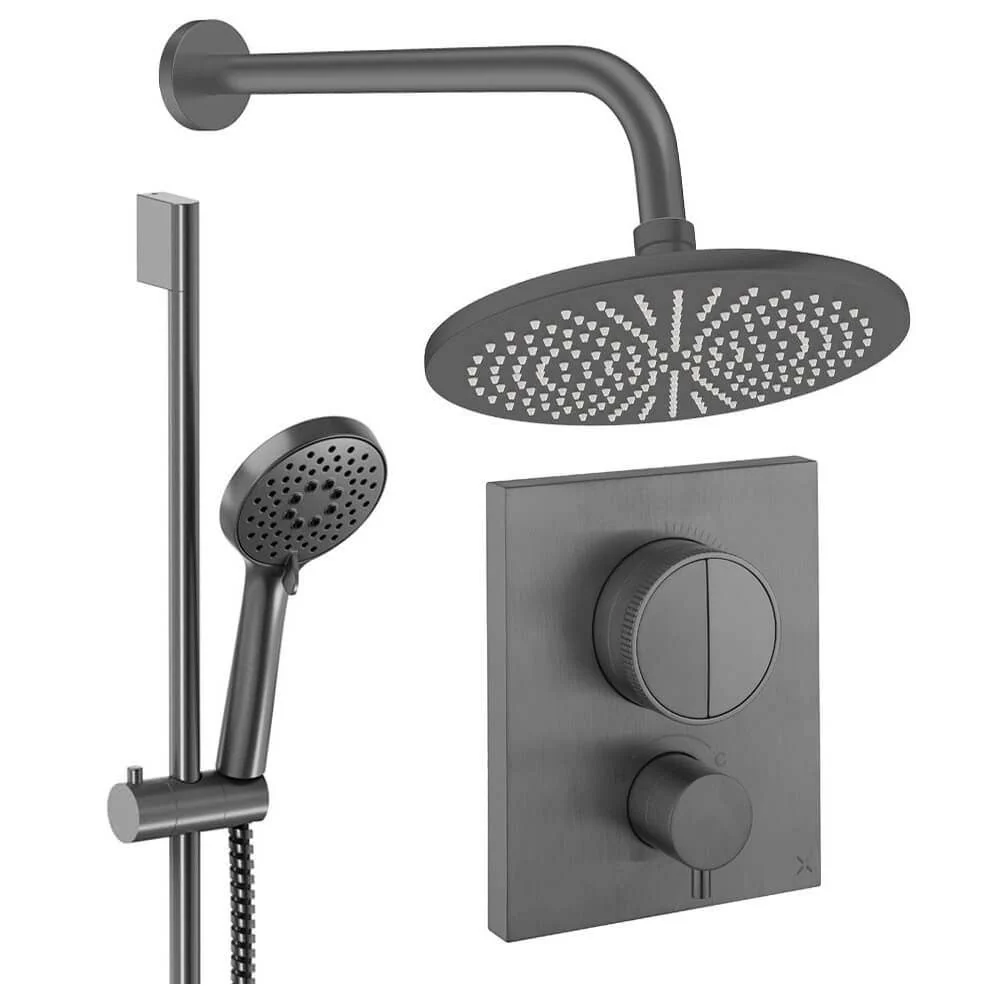

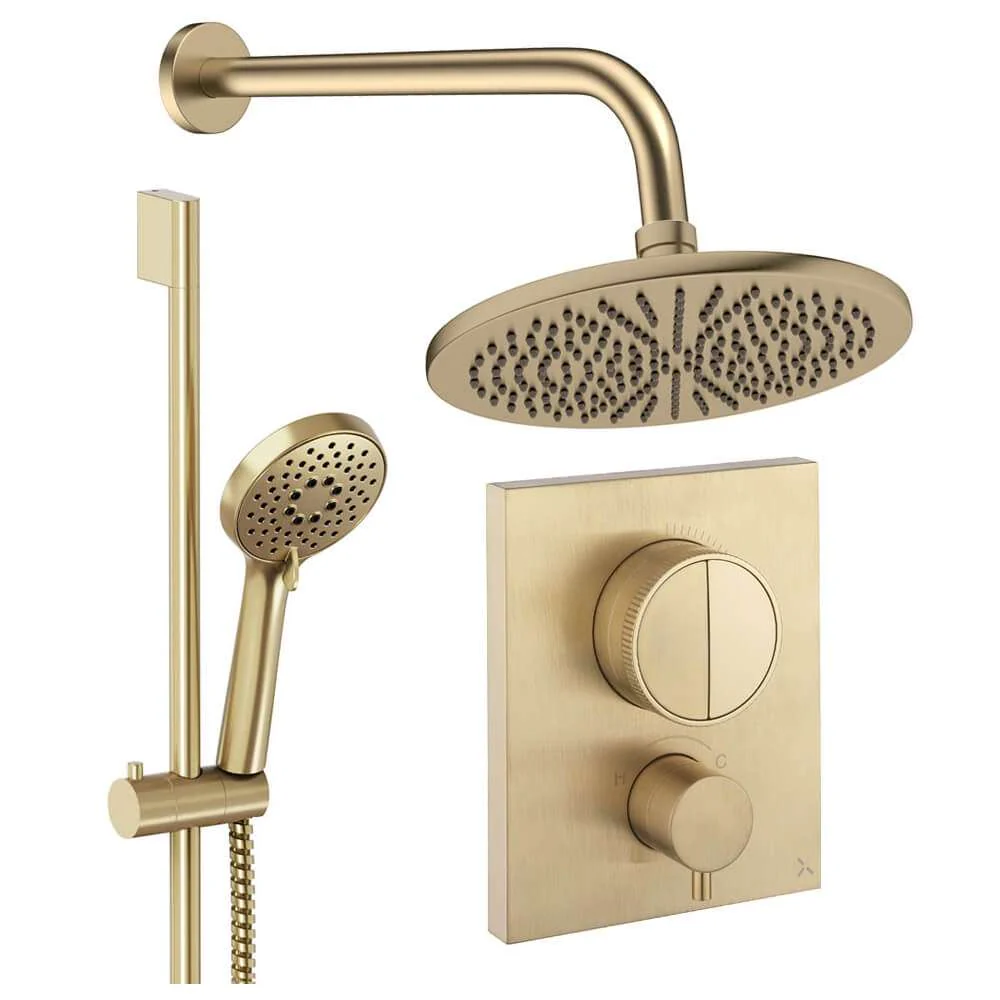

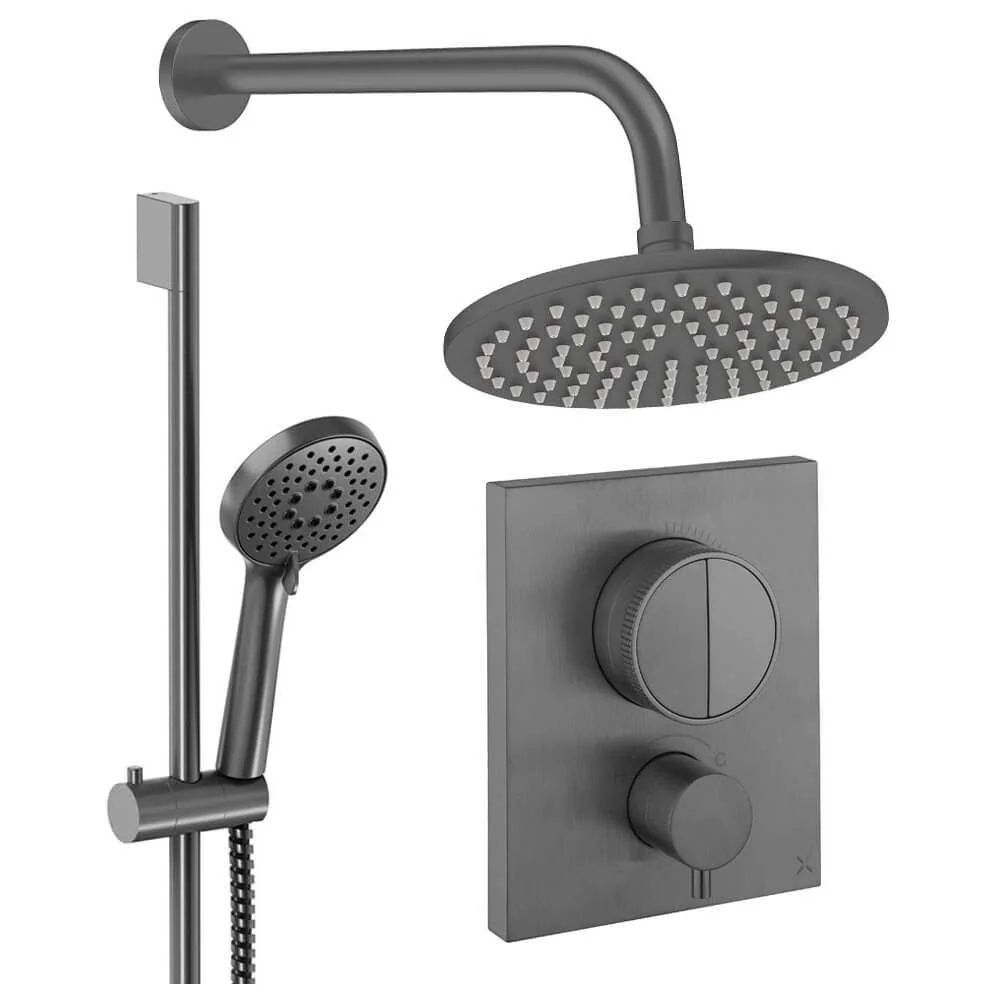

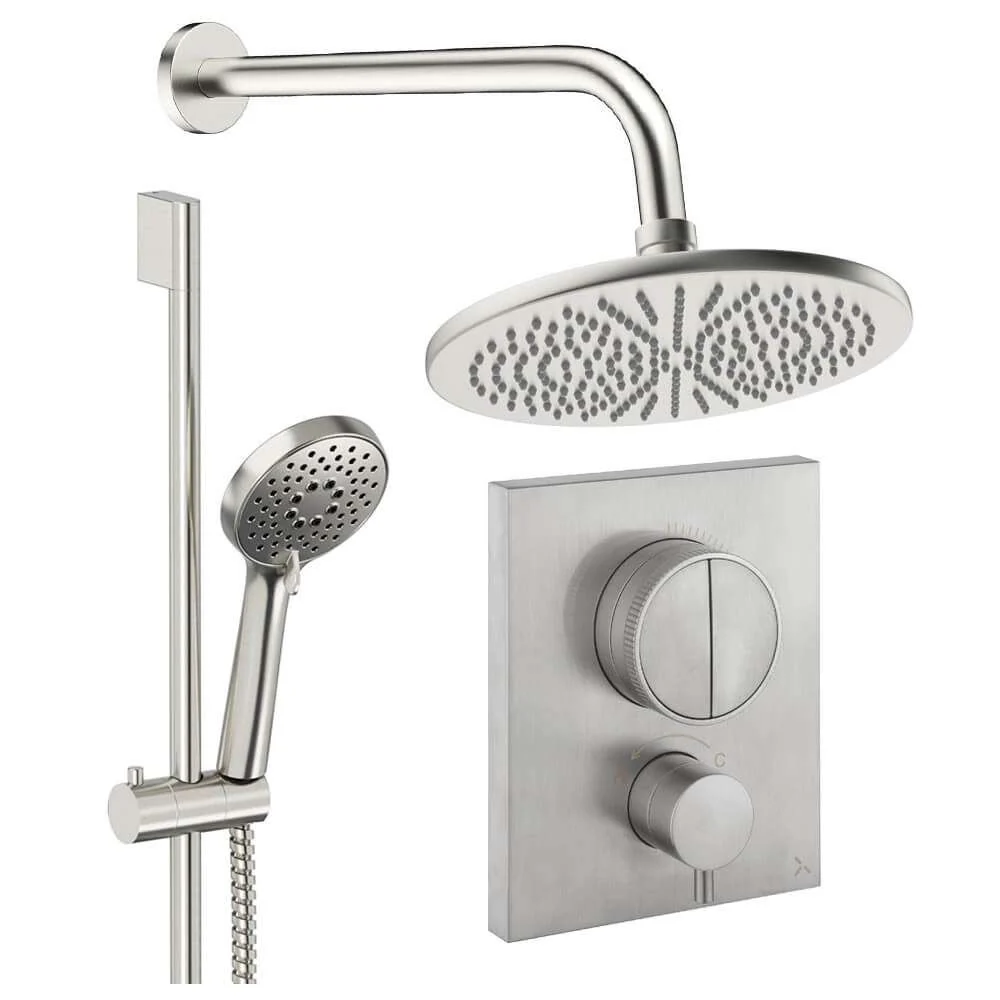

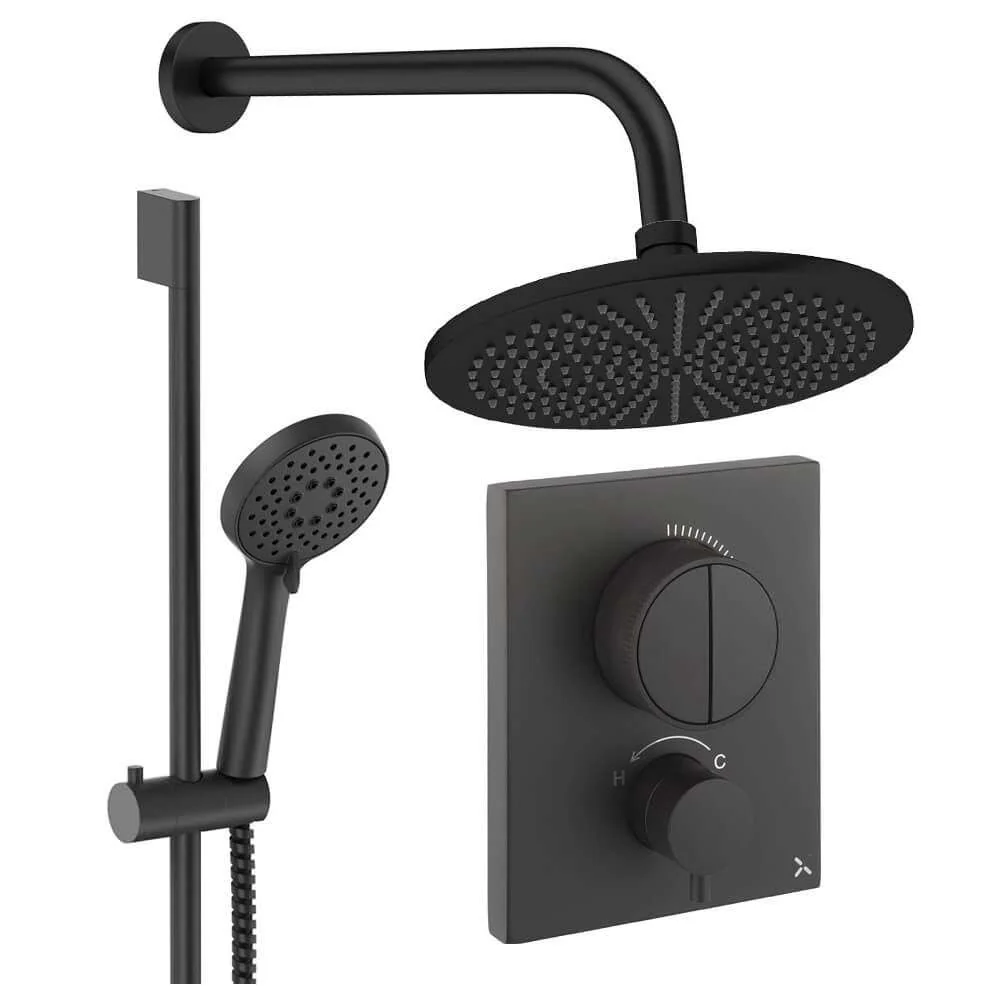

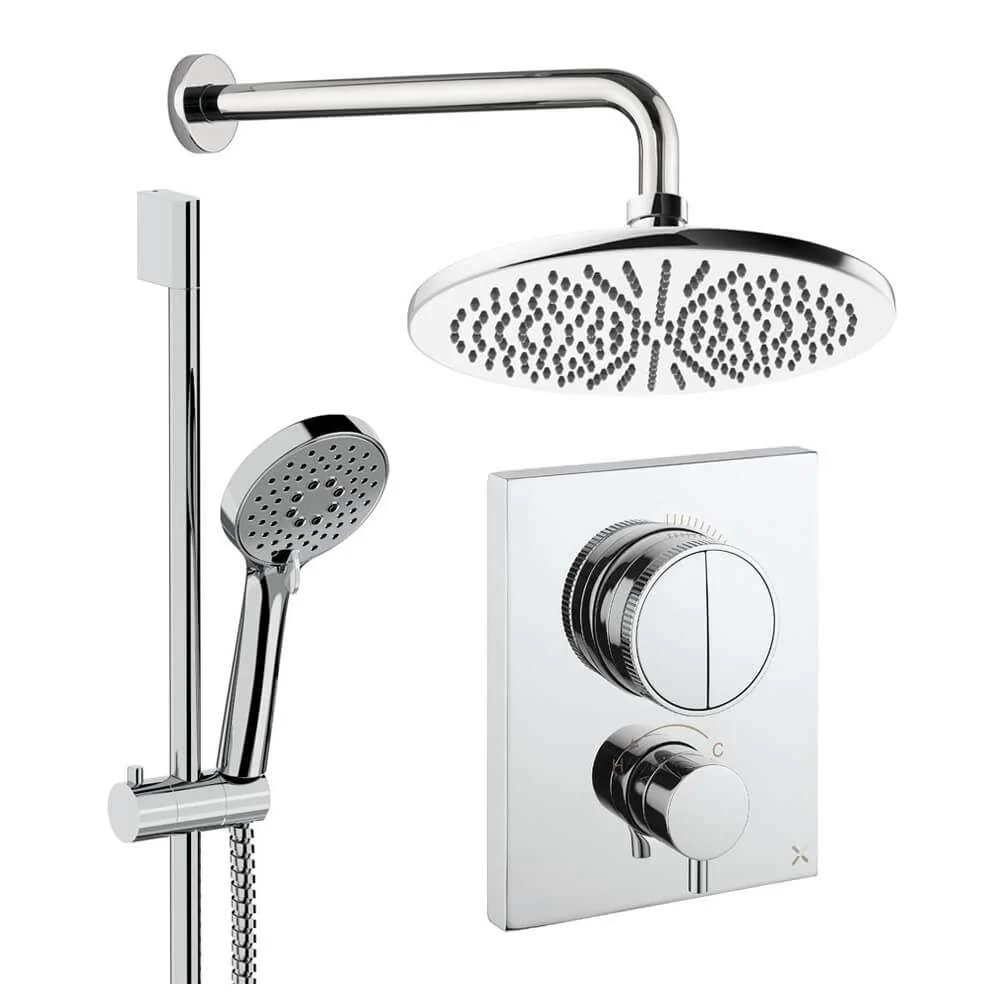

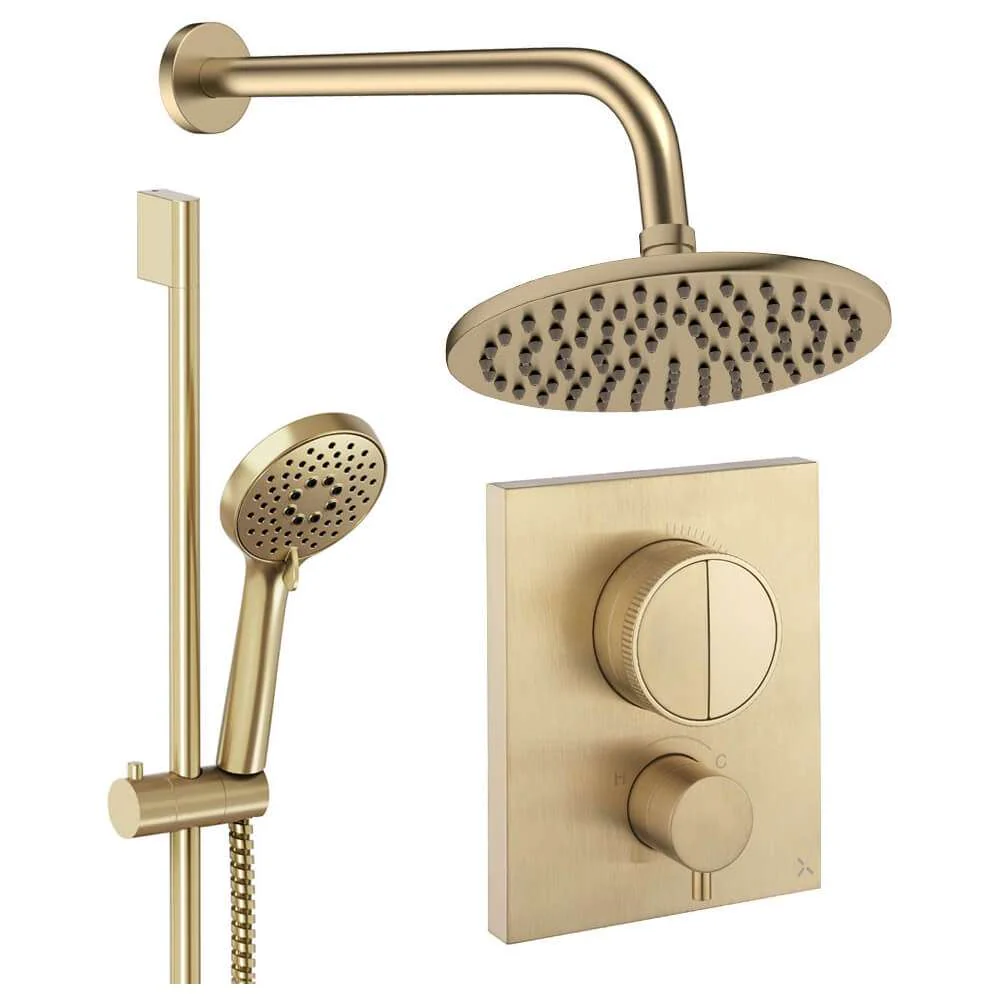

Crosswater Crossbox Push Shower Set 2
The Crosswater Crossbox Push Shower Set 2 is a modern and versatile shower system designed to deliver excellent performance, sleek styling, and easy installation for contemporary bathrooms. Built with quality materials and advanced thermostatic technology, this shower set ensures a comfortable and safe showering experience while maintaining a clean and minimal look. At the core of the system is the thermostatic shower valve, designed to maintain a consistent water temperature for a safe and comfortable shower. The valve features a compact backplate measuring 130mm by 160mm and includes Easy-Fix second-stage trim sets that help reduce installation time. The two-stage fixing system allows installers to fit the in-wall components first and complete the trim installation later, helping to minimise the risk of damage during construction or renovation. The Crosswater Crossbox Push Shower Set 2 combines elegant design, reliable thermostatic control, and flexible showering options, making it an ideal choice for modern bathrooms seeking both performance and style.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
Special Features:
- Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Slide Rail Kit: Handset and Hose, Fixed Shower Head and Shower Arm
Details of Thermostatic Shower Valve:
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure

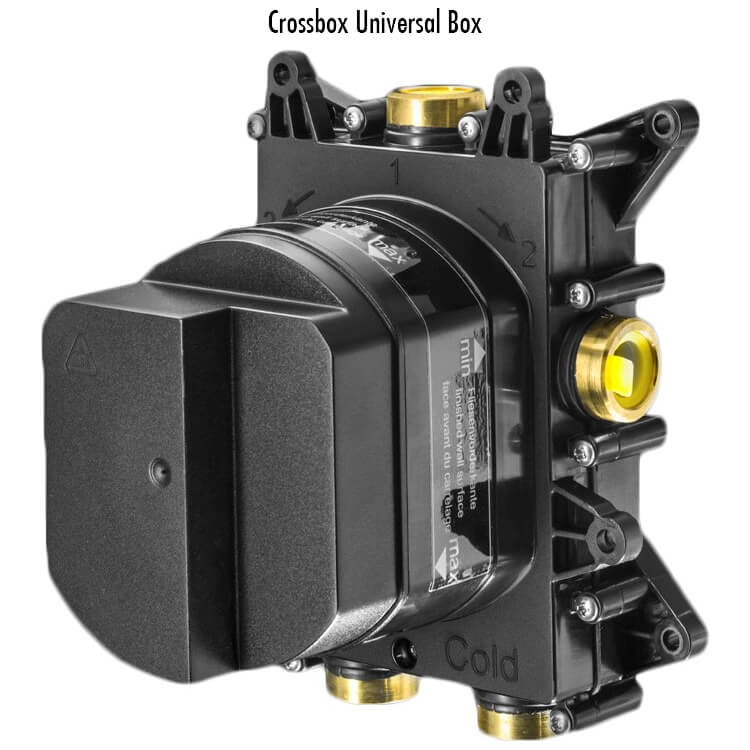

Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure

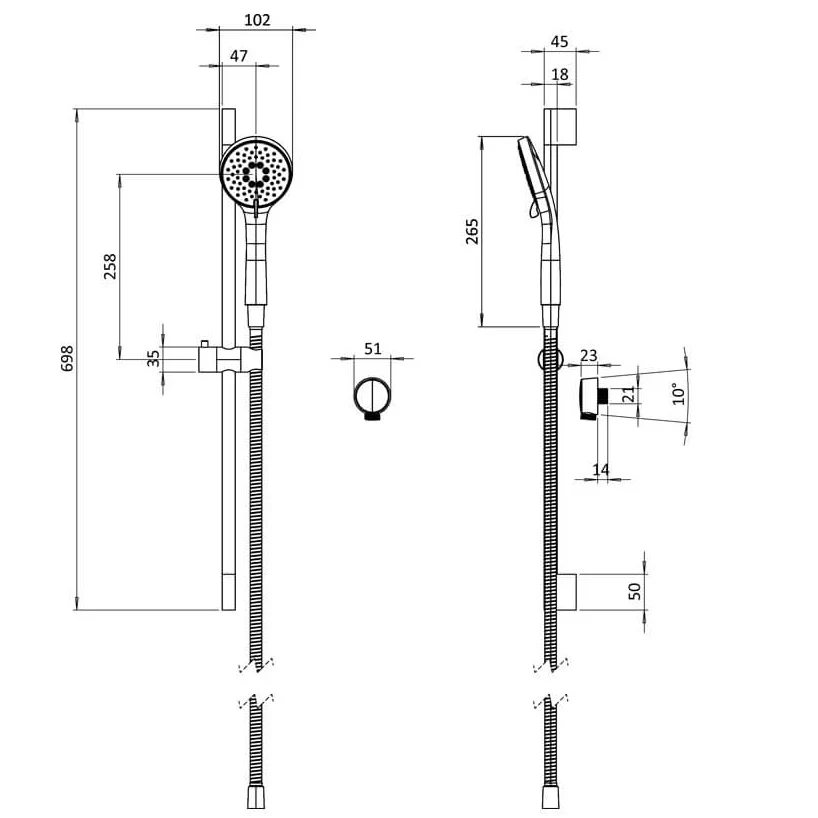

Details of Slide Rail Shower Set:
- Slide Rail with Shower Kit and Outlet Elbow
- Overall Size: 111mm x 81mm x 698mm [Width x Depth x Height]
- 3-Functions Shower Handset
- 1-Outlet Elbow
- Manufactured from Brass and ABS Material
- Requires a Minimum of 1 Bar of Water Pressure
- WRAS Approved
- Inlet Connection Thread: G1/2-Inch
- Flow Rate: 1Bar: 10.29, 2Bar: 13.26, 3Bar: 15.18, 4Bar: 17.76, 5Bar: 19.38

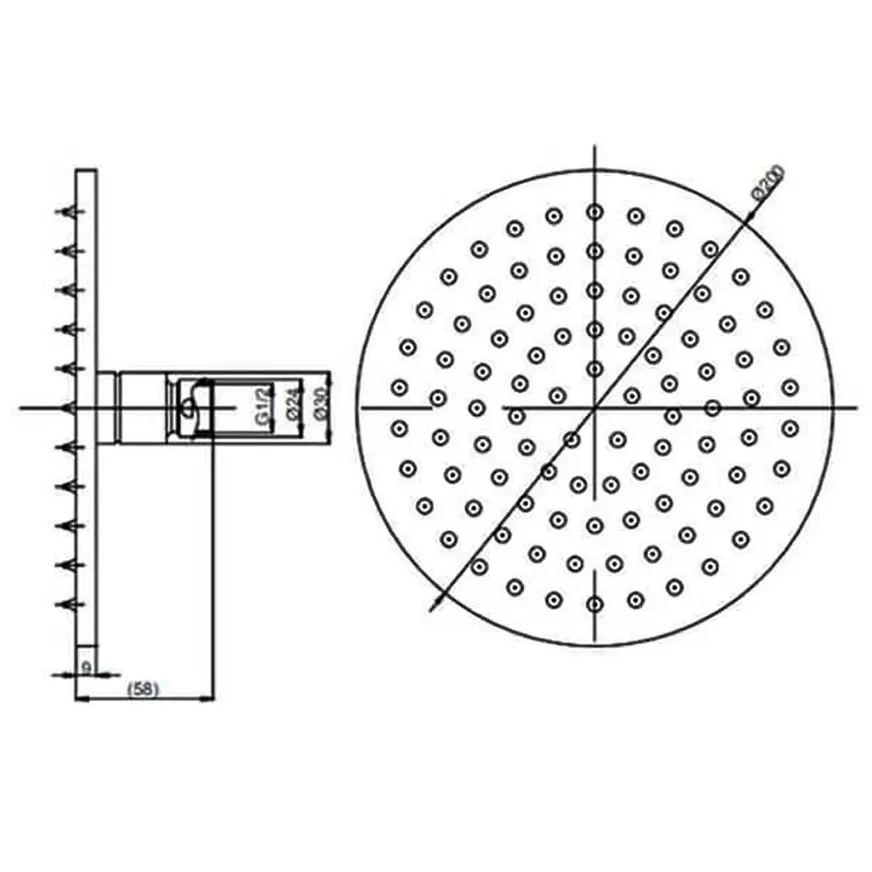

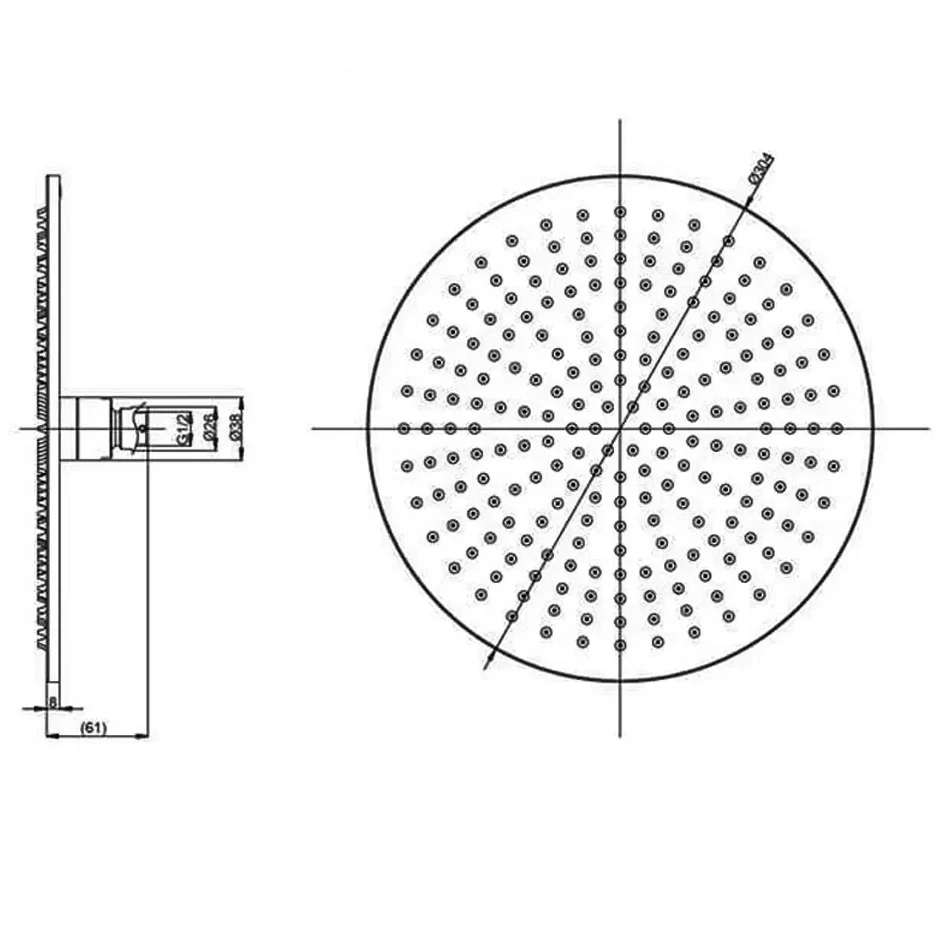

Details of Shower Head
- WRAS and KIWA-Approved
- Choice of Diameters: 200mm, 300mm
- Head Thickness: 5.8mm
- Inlet Connection: G1/2 Inch
- Requires a Minimum of 1.0 Bar or Above Water Pressure

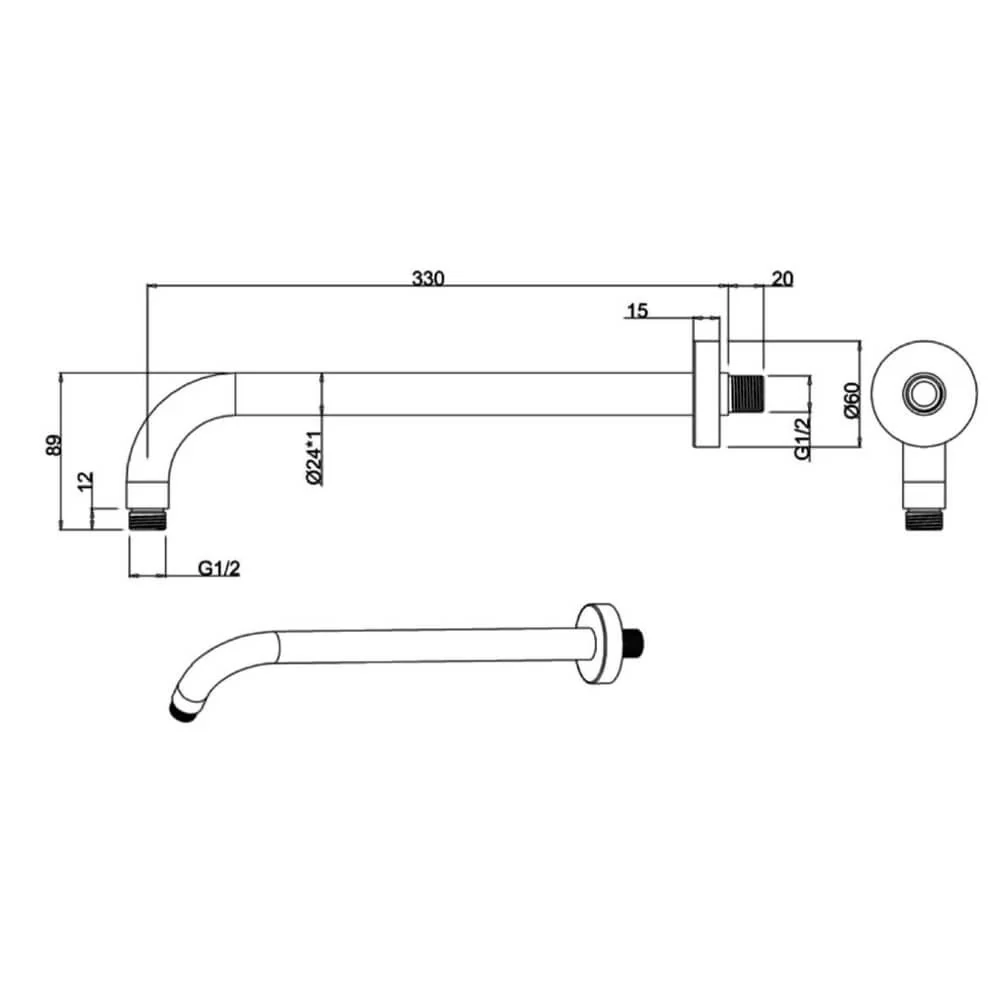

Details of Shower Arm:
- KIWA-Approved
- Length: 330mm
- Inlet/Outlet Connection: G1/2-Inch
- Suitable for All Crosswater Fixed Heads
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for 200mm Shower Head
Assembling instruction for 300mm Shower Head
Assembling instruction for for Shower Kit
Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Technical Drawing
