Crosswater Crossbox Push Shower Set 3
The Crosswater Crossbox Push Shower Set 3 is a stylish and practical shower solution designed for modern bathrooms that combine both shower and bath functionality. With its advanced thermostatic technology, high-quality construction, and sleek contemporary design, this shower set offers a comfortable, safe, and reliable bathing experience. This complete set includes a shower valve, thermostatic Crossbox concealed unit, shower kit with handset and hose, and a bath filler with waste. The combination makes it an excellent choice for bathrooms where both showering and bathing options are required, offering flexibility while maintaining a clean, minimalist look. At the heart of the system is the thermostatic shower valve, which helps maintain a consistent and safe water temperature during use. Designed for reliability and ease of installation, the valve features a compact backplate measuring 130mm by 160mm. The Easy-Fix second-stage trim system helps reduce installation time by allowing the concealed components to be fitted first and the visible trim to be installed later, reducing the risk of damage during building or renovation work.
The unit also includes a flush-block testing plate that allows easy pressure testing before final installation. Flexible front or rear mounting options provide greater convenience depending on the plumbing configuration. Additionally, the system includes a quick flow reversal feature that allows installers to easily correct the hot and cold connections if they are accidentally installed the wrong way around. The Crosswater Crossbox Push Shower Set 3 offers a perfect combination of elegant design, reliable thermostatic control, and versatile functionality, making it a great choice for modern bathrooms that require both shower and bath capabilities.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
Special Features:

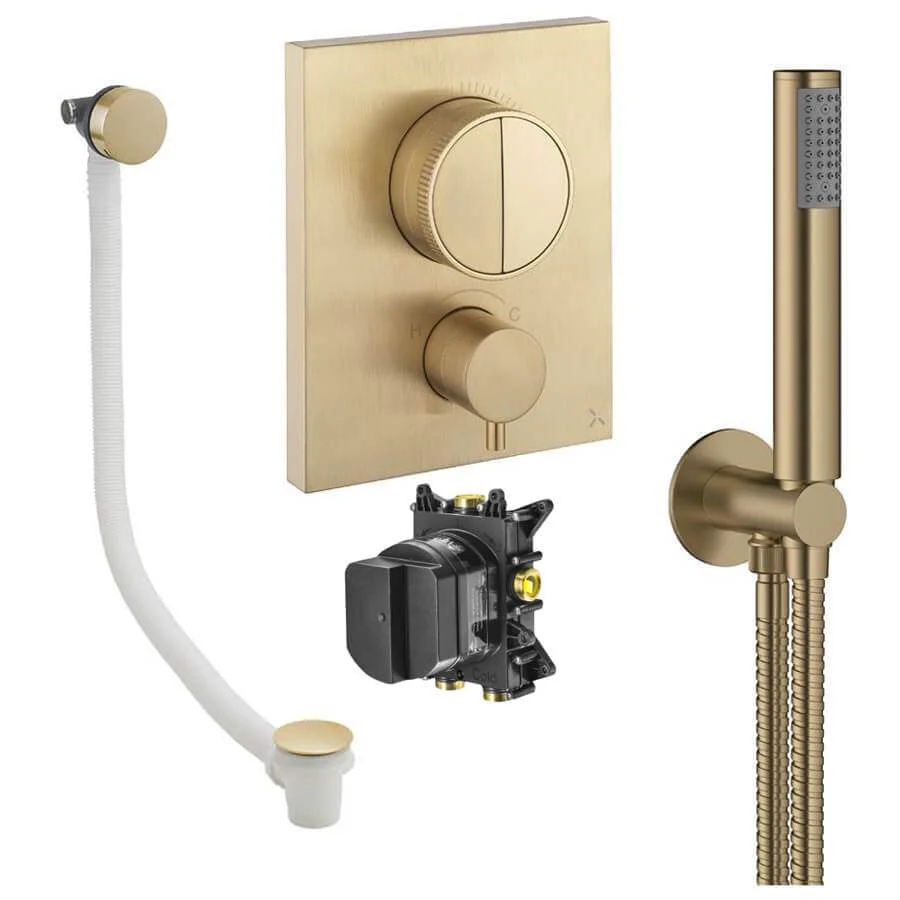

- Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Shower Kit: Handset and Hose, Bath Filler with Waste
Details of Thermostatic Shower Valve:
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- The Flush-Block Testing Plate Included for Easy Pressure Testing

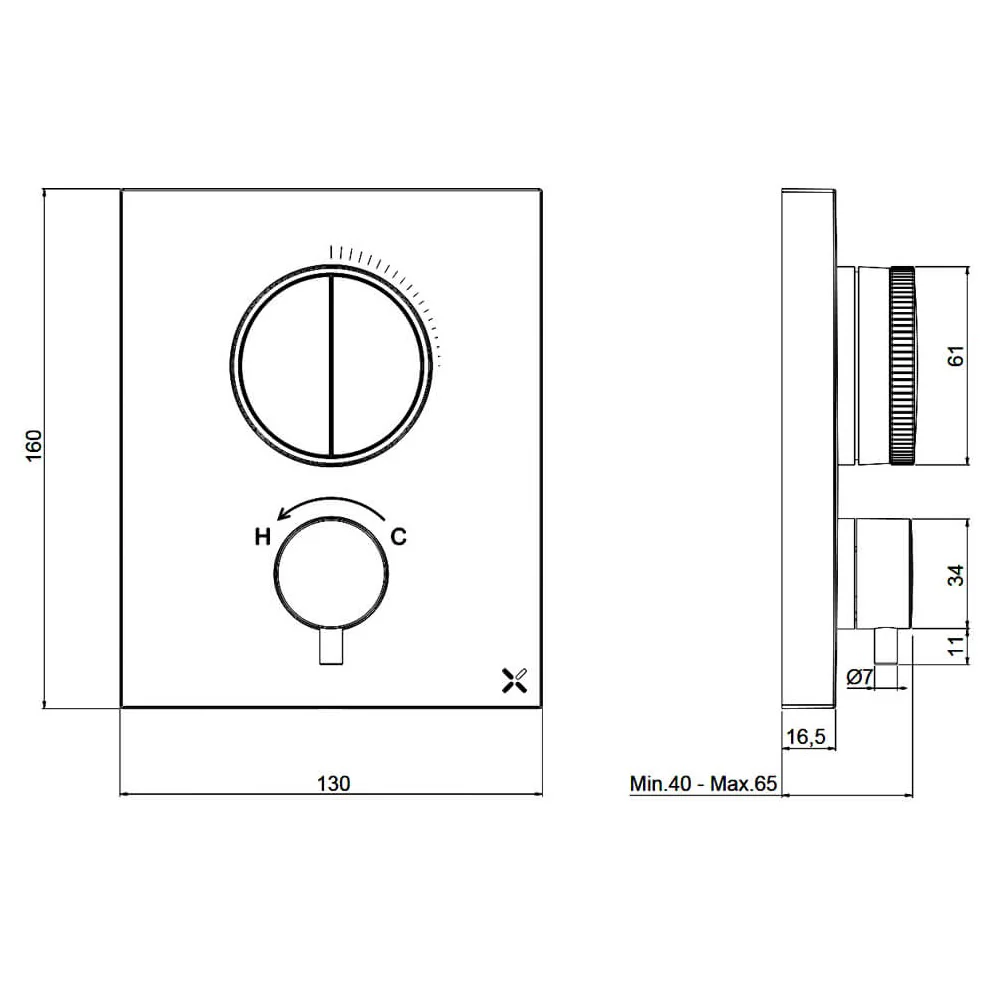

- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure

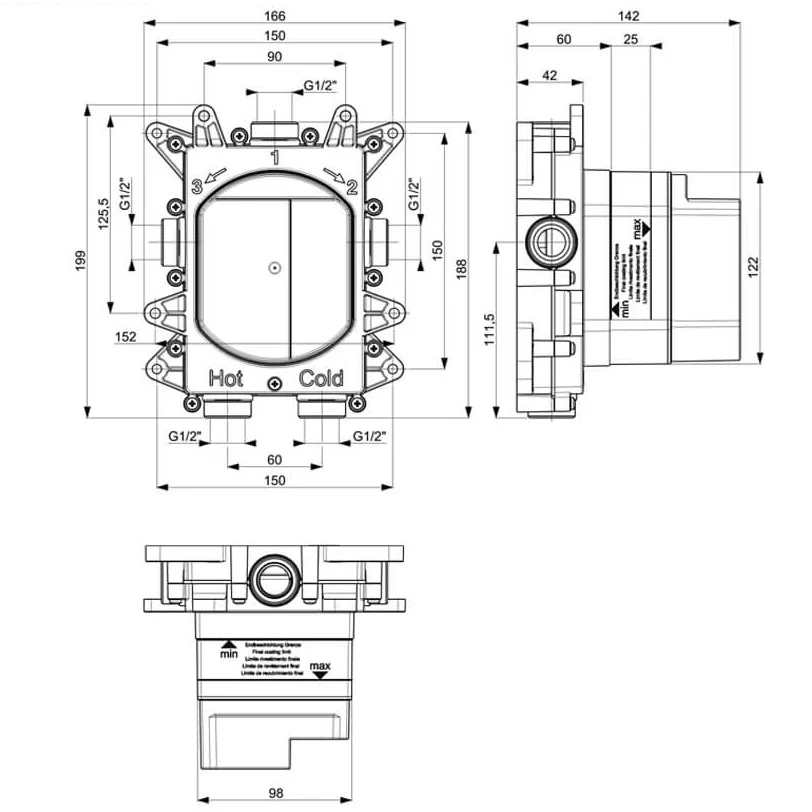

Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Slide Rail Shower Set:
- Slide Rail with Shower Kit and Outlet Elbow
- Overall Size: 111mm x 81mm x 698mm [Width x Depth x Height]
- 3-Functions Shower Handset
- 1-Outlet Elbow
- Manufactured from Brass and ABS Material
- Requires a Minimum of 1 Bar of Water Pressure
- WRAS Approved
- Inlet Connection Thread: G1/2-Inch
- Flow Rate: 1Bar: 10.29, 2Bar: 13.26, 3Bar: 15.18, 4Bar: 17.76, 5Bar: 19.38

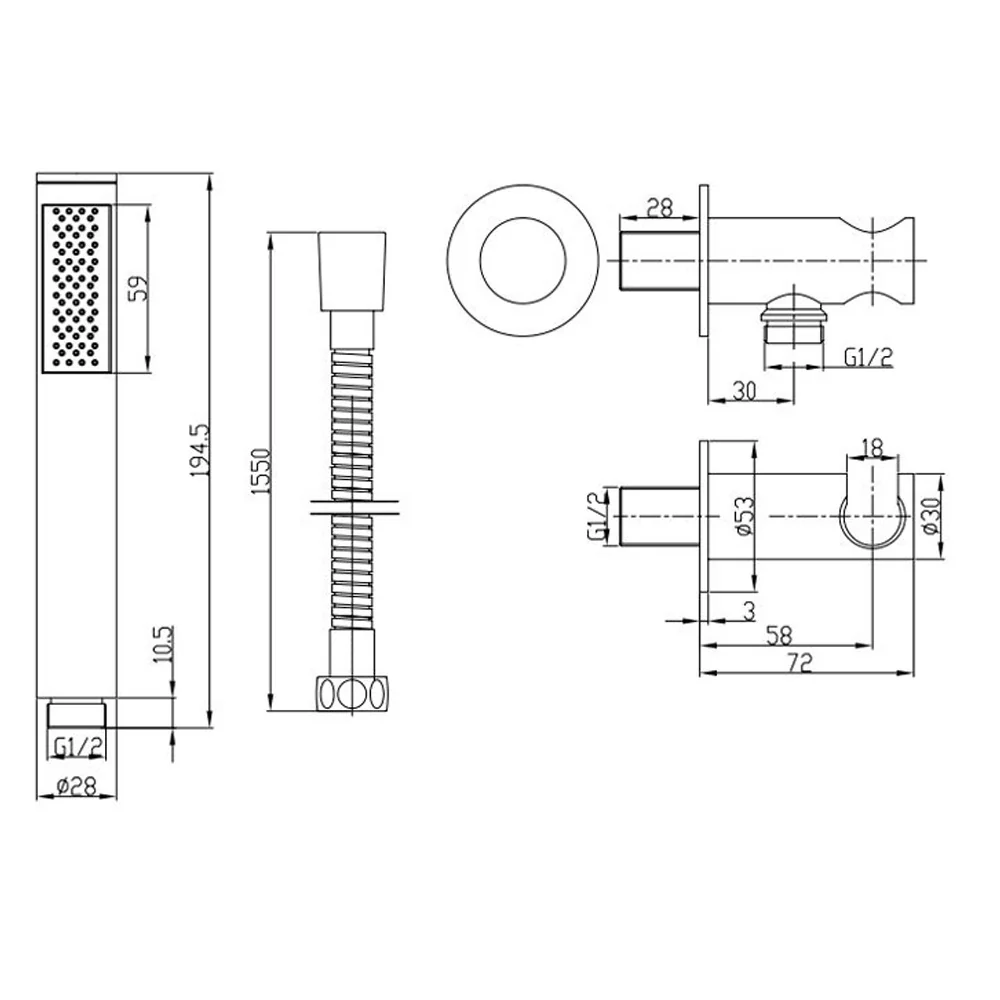

Details of Shower Handset
- Single Spray Pattern
- Minimalist Design
- Modern Aesthetics with Functional Design
- Ideal for Contemporary Bathrooms
- A Slimline Round Shower Handset, a Durable Hose, and a Wall-Mounted Outlet with an Integrated Holder
- Handset Height: 194.5mm
- WRAS-Approved
- Suitable for Low and High Water Pressure Systems
- Works on a Minimum of 0.2 Bar to 5.0 Bar Water Pressure
Details of Bath Filler with Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for Shower Kit
Assembling instruction for Bath Filler Waste
Datasheet for Bath Filler Waste
Technical Drawing
