Crosswater Crossbox Shower Set 10
The Crosswater Crossbox Shower Set 10 is a premium all-in-one shower and bath solution designed to bring modern functionality, powerful performance, and sleek aesthetics to contemporary bathrooms. Crafted from high-quality brass and engineered with advanced thermostatic technology, this three-outlet shower system offers precise temperature control, flexible installation, and a luxurious showering experience. This comprehensive shower set includes a concealed thermostatic shower valve, Crossbox universal box, 330mm projection wall-mounted shower arm, contemporary round fixed shower head, slide rail kit with handset, hose and outlet elbow, and a bath filler with click-clack waste. The three-outlet configuration allows the system to operate multiple components, including the overhead shower, handset, and bath filler, making it ideal for combined shower and bath installations. The Crosswater Crossbox Shower Set 10 delivers quiet yet powerful shower performance and is suitable for a wide range of bathroom styles and layouts. With its combination of advanced engineering, flexible installation options, and high-quality components, this shower set provides a reliable and luxurious bathing experience.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 3
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
Special Features:

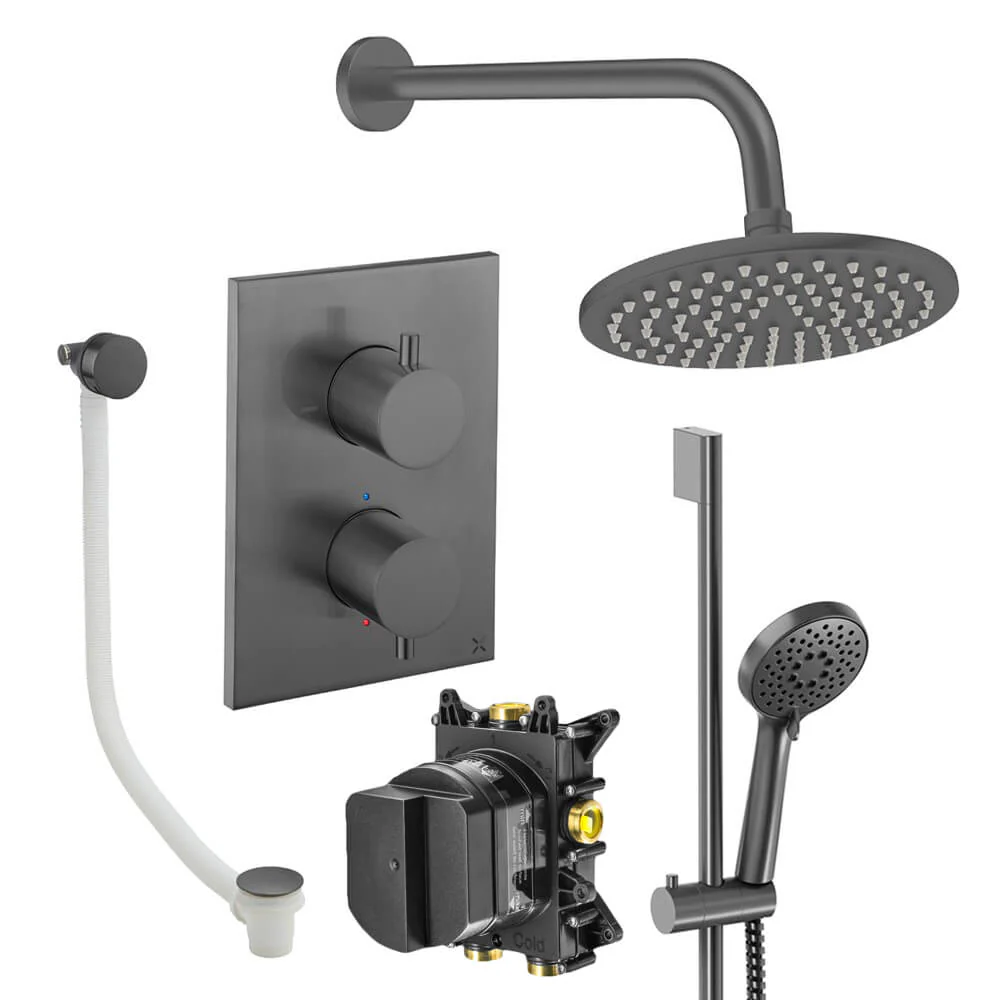

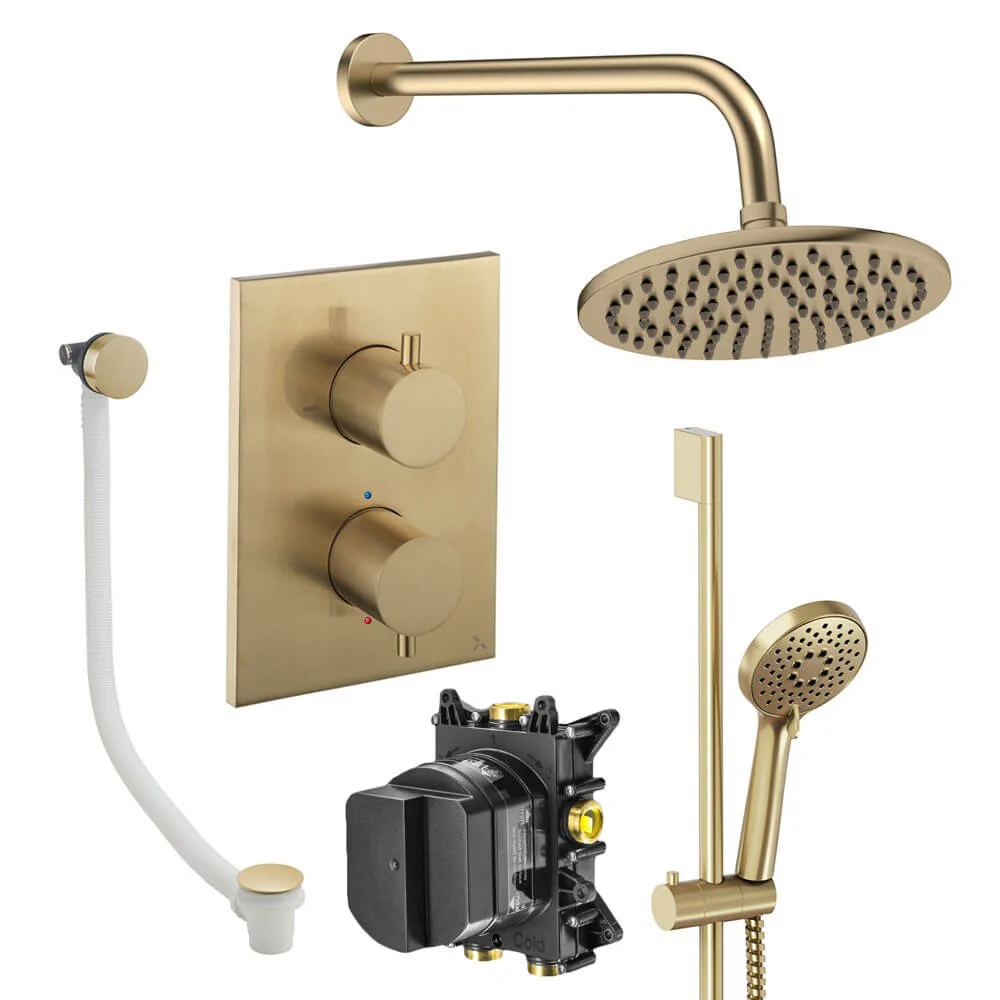

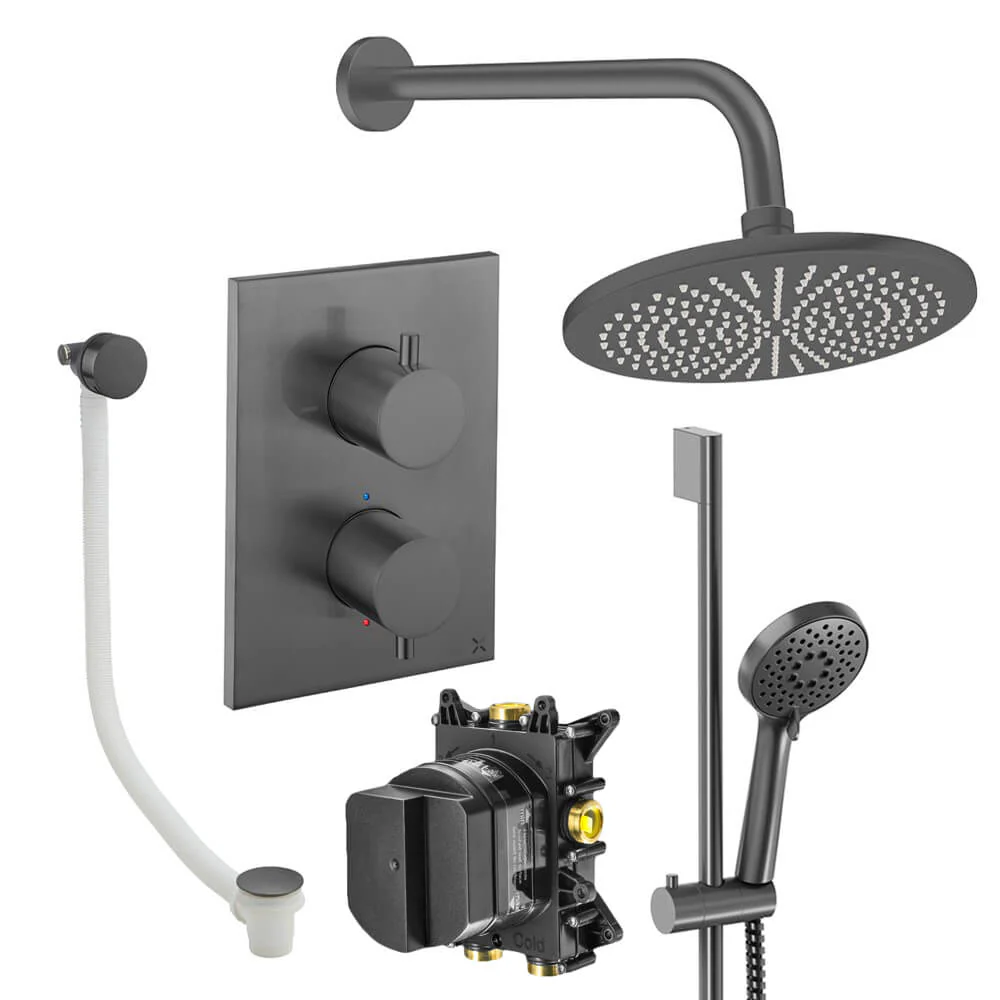

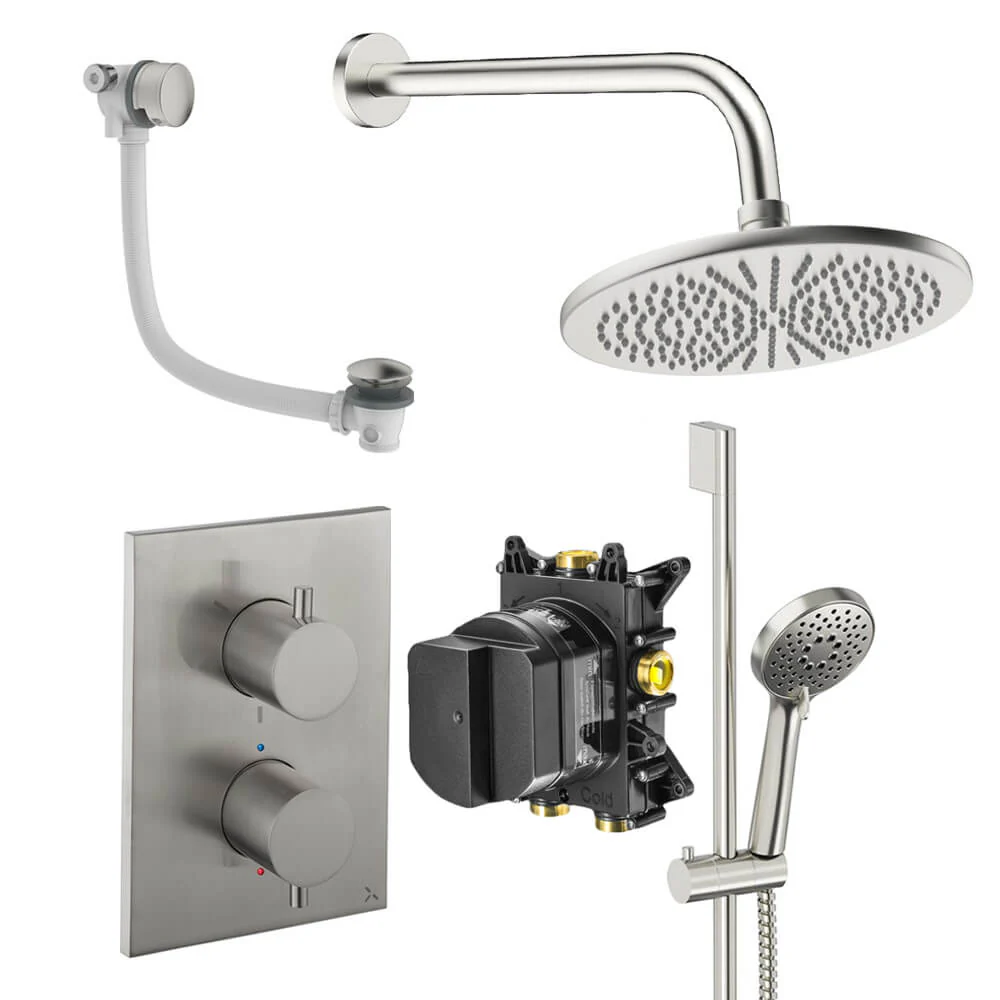

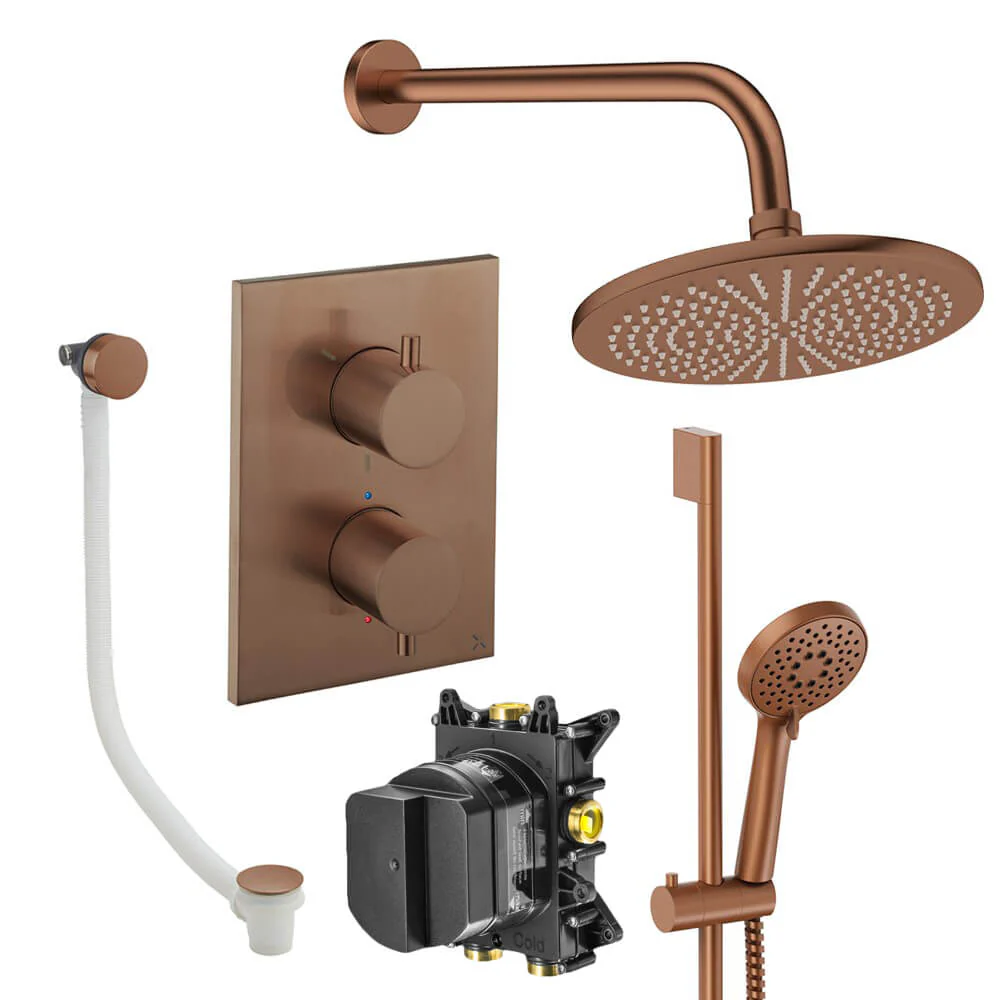

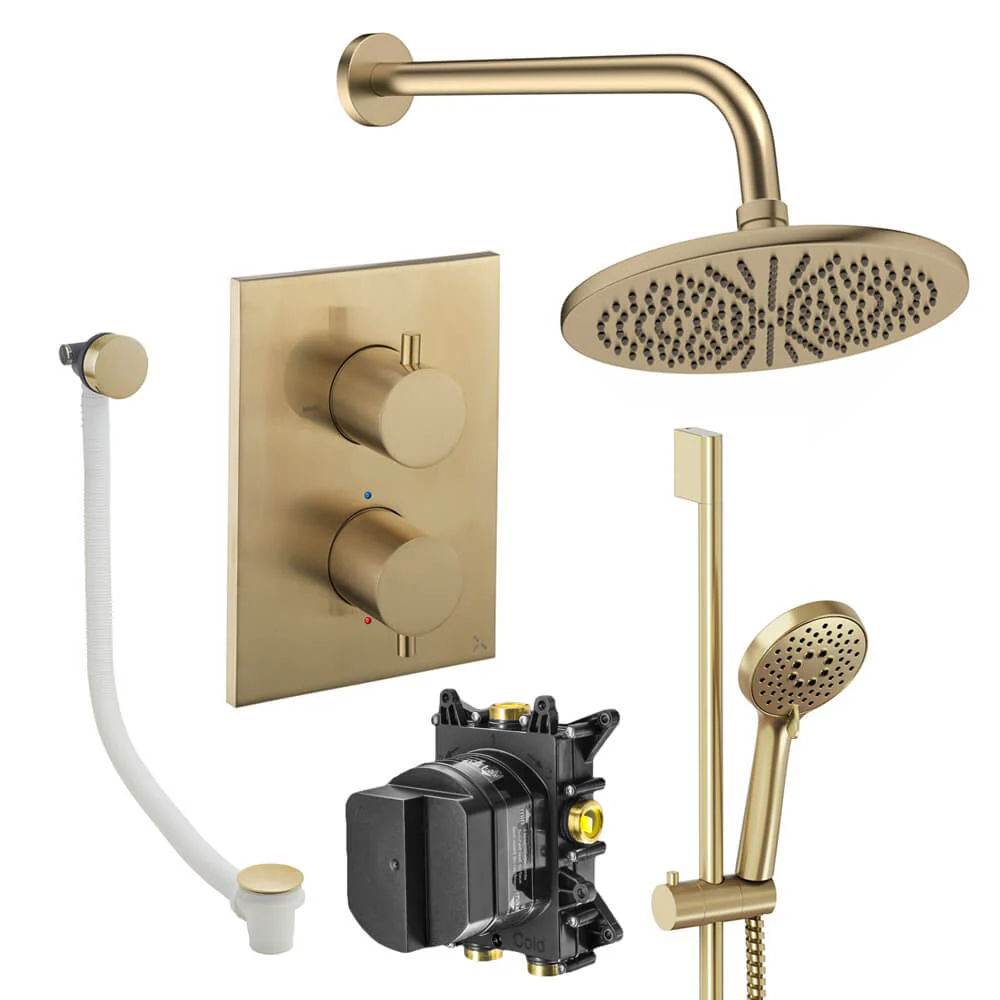

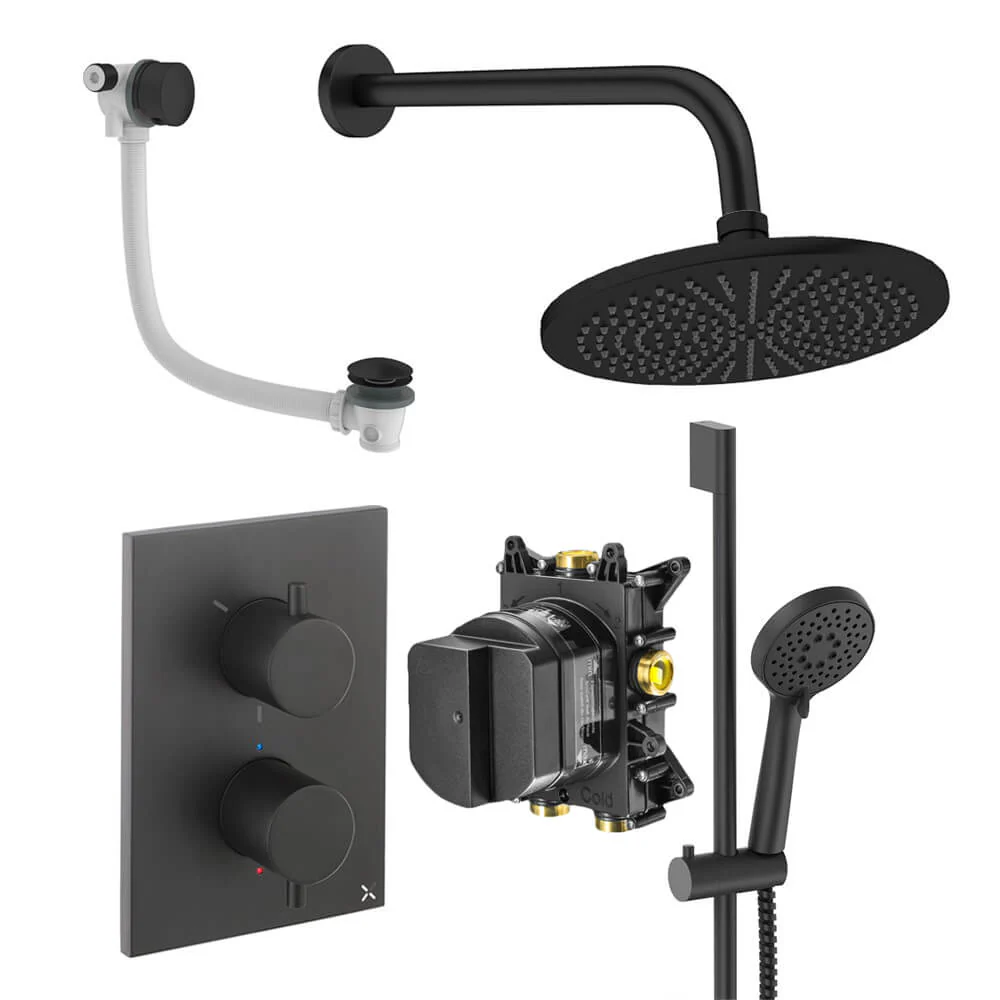

- Shower Set Includes - Concealed Thermostatic Shower Valve, Crossbox Universal Box, 330mm Projection Wall Mounted Shower Arm, Contemporary Round Fixed Shower Head, Slide Rail Kit with Handset, Hose and Outlet Elbow, Bath Filler with Click Clack Waste
- Quiet, Powerful Shower Performance
- Ideal for all Bathroom types
Details of Thermostatic Shower Valve:
- WRAS-Approved
- Cartridge - Thermo Cartridge + Flow Control/s
- Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
- Size of Backplate: 130mm x 180mm [Width x Height]
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Flush-block Testing Plate Included for Easy Pressure Testing
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Suitable for High Water Pressure System
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Round Fixed Shower Head and Arm:
- WRAS- and KIWA-Approved
- Head thickness: 5.8mm
- Suitable for High Water Pressure System
- Requires a Minimum of 1.0 Bar or Above Water Pressure
- Length: 330mm
- Inlet/Outlet connection: G1/2-Inch

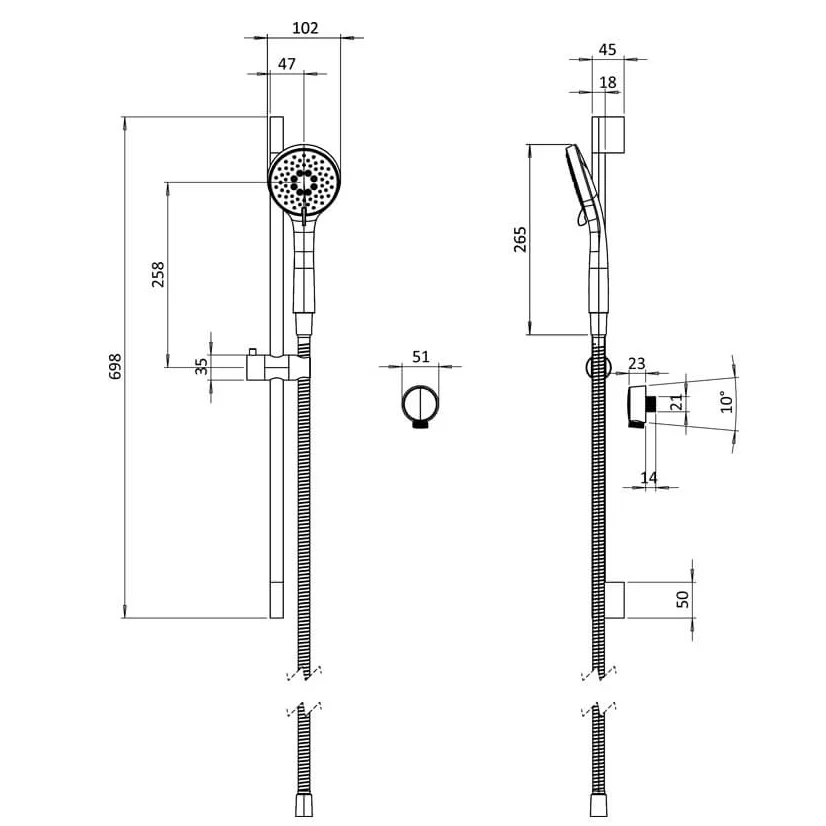

Details of Slide Rail Kit with Handset, Hose and Outlet Elbow:
- Shape: Round
- Comes with Handset Holder
- Completes with Shower Hose
- WRAS Approved
- Material: ABS
- 3 Function Shower Handset
- G1/2 inch Inlet Connection
- Size of Rail: Depth 45 x Height 698mm
- Size of Handset: Ø102 x Height 265mm
- Size of Outlet Elbow: Ø51 x Depth 23mm
- Suitable for high-pressure water systems
- Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Details of Bath Filler With Click-Clack Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- Ideal for Shower and Bath Combinations
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for 200mm Shower Head
Assembling instruction for 300mm Shower Head
Assembling instruction for Crossbox
Assembling instruction for Bath Filler Waste
Assembling instruction for Shower Kit

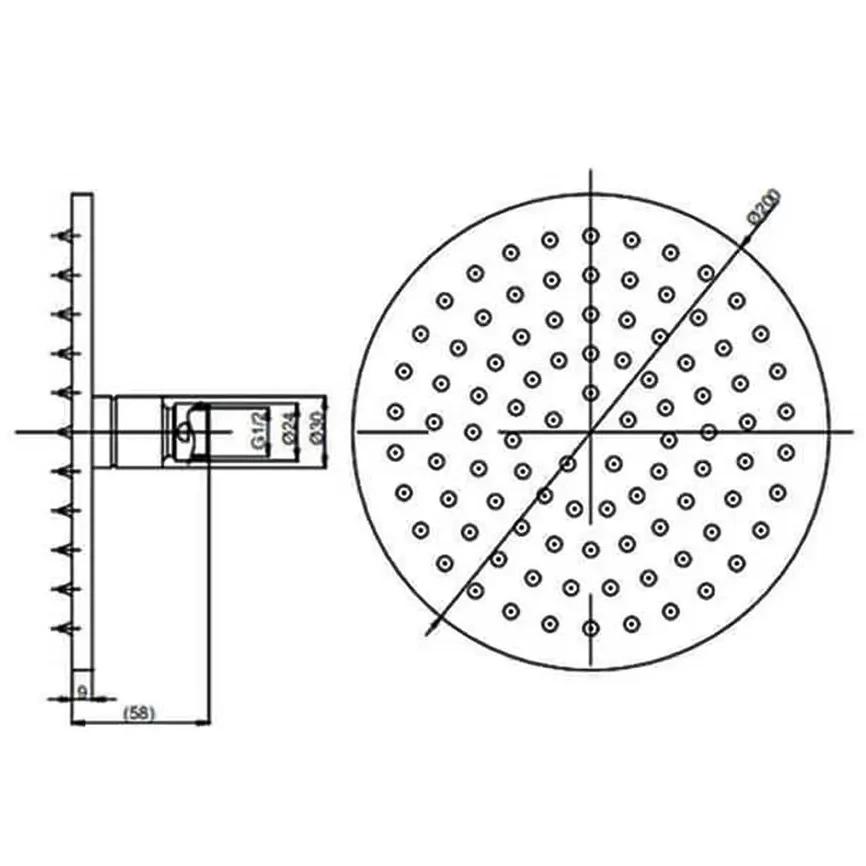

Datasheet for 200mm Shower Head

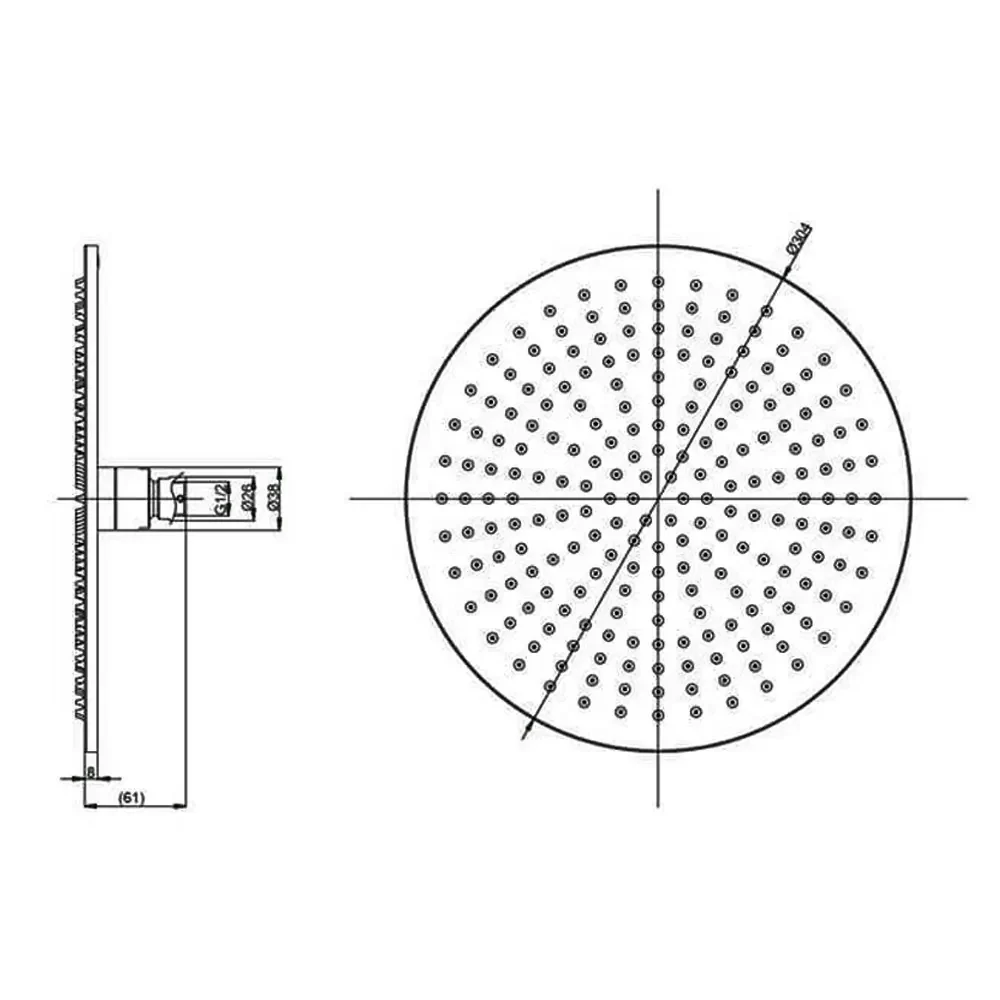

Datasheet for 300mm Shower Head

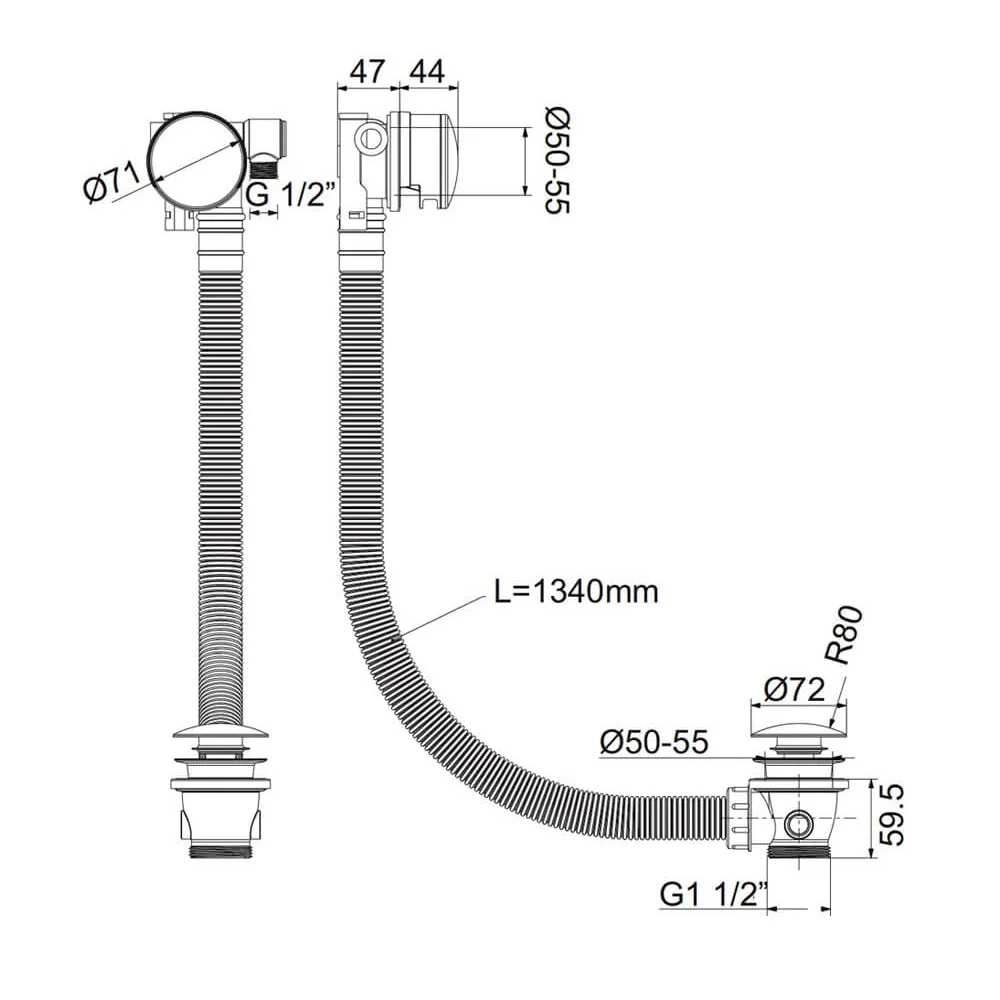

Datasheet for Bath Filler waste

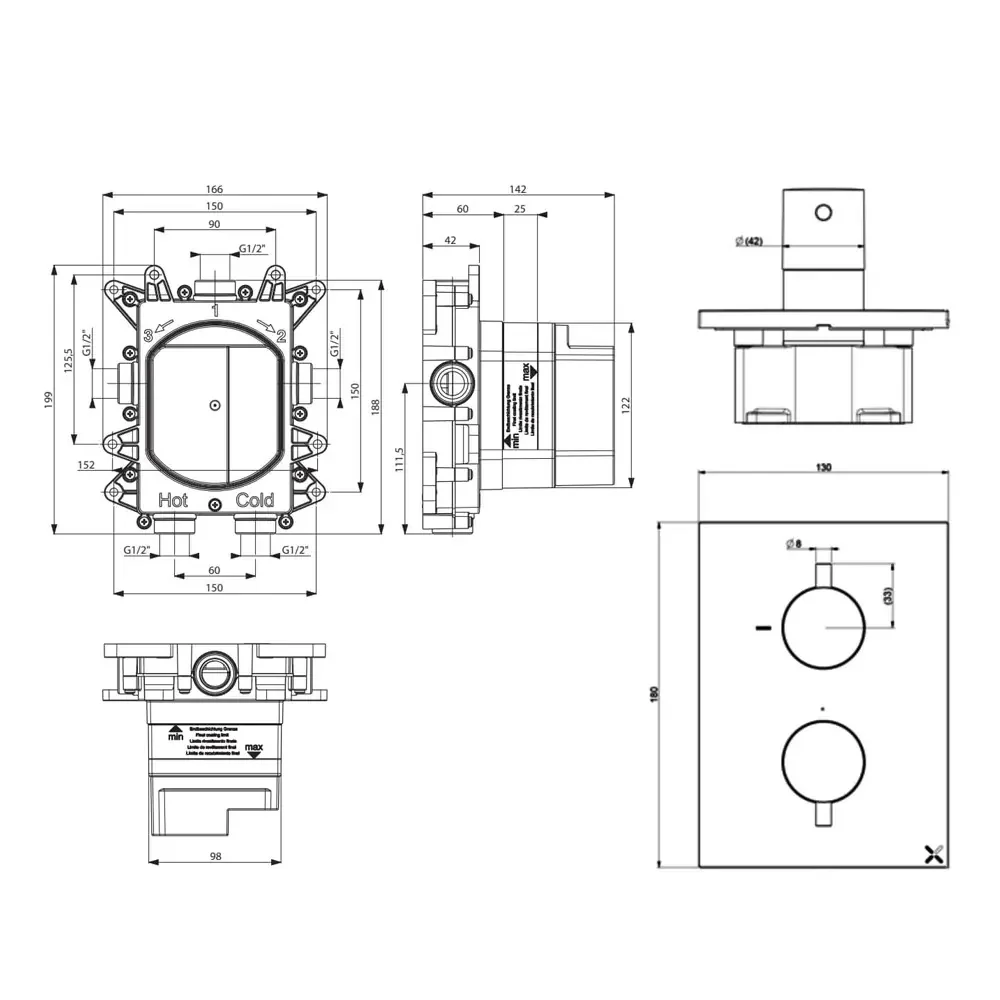

Technical Drawing
Shower Valve and Crossbox
Original: $1,389.00
-70%$1,389.00
$416.70Product Information
