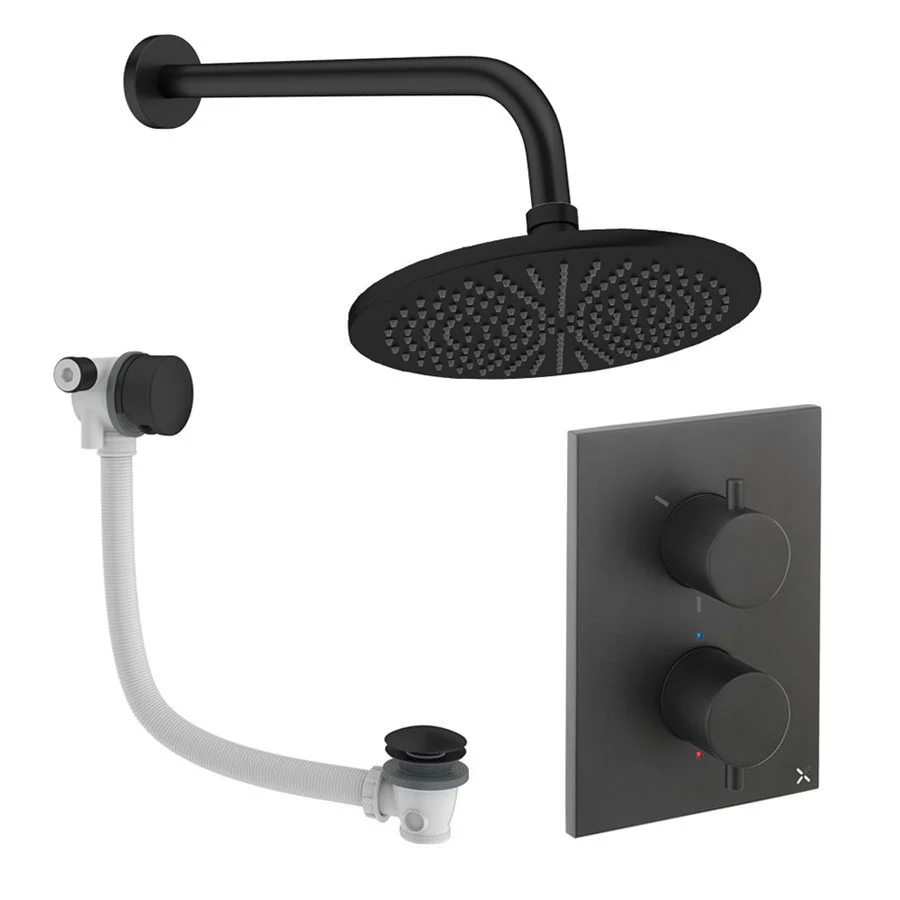

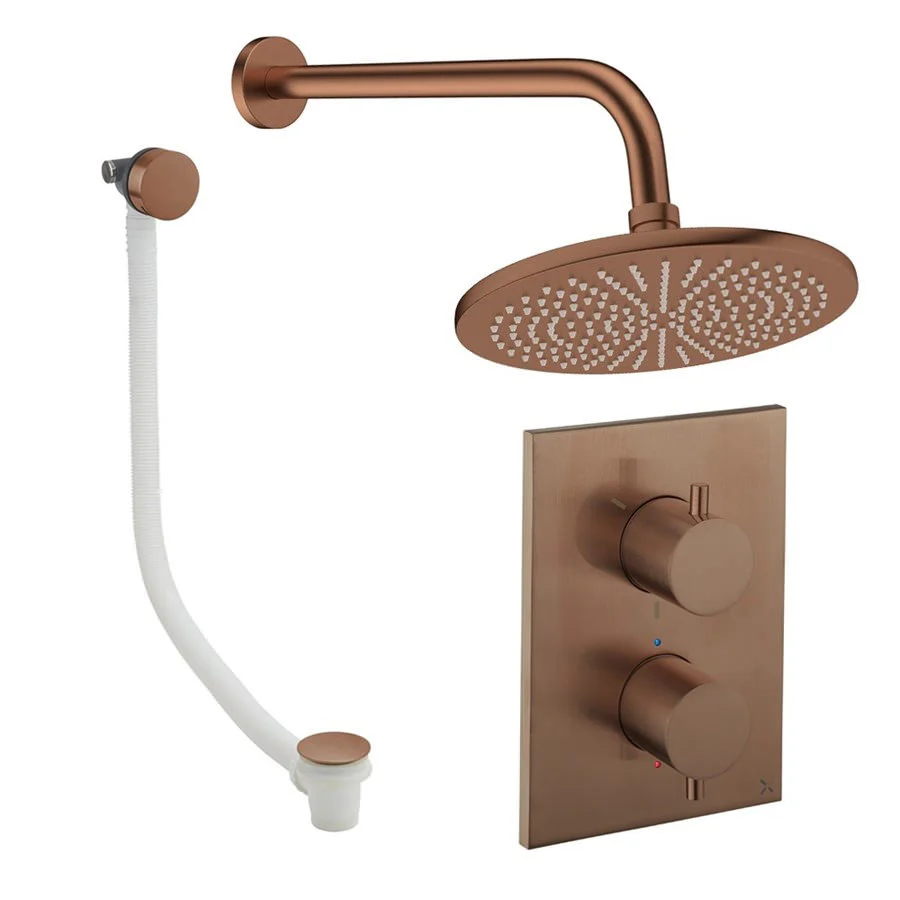

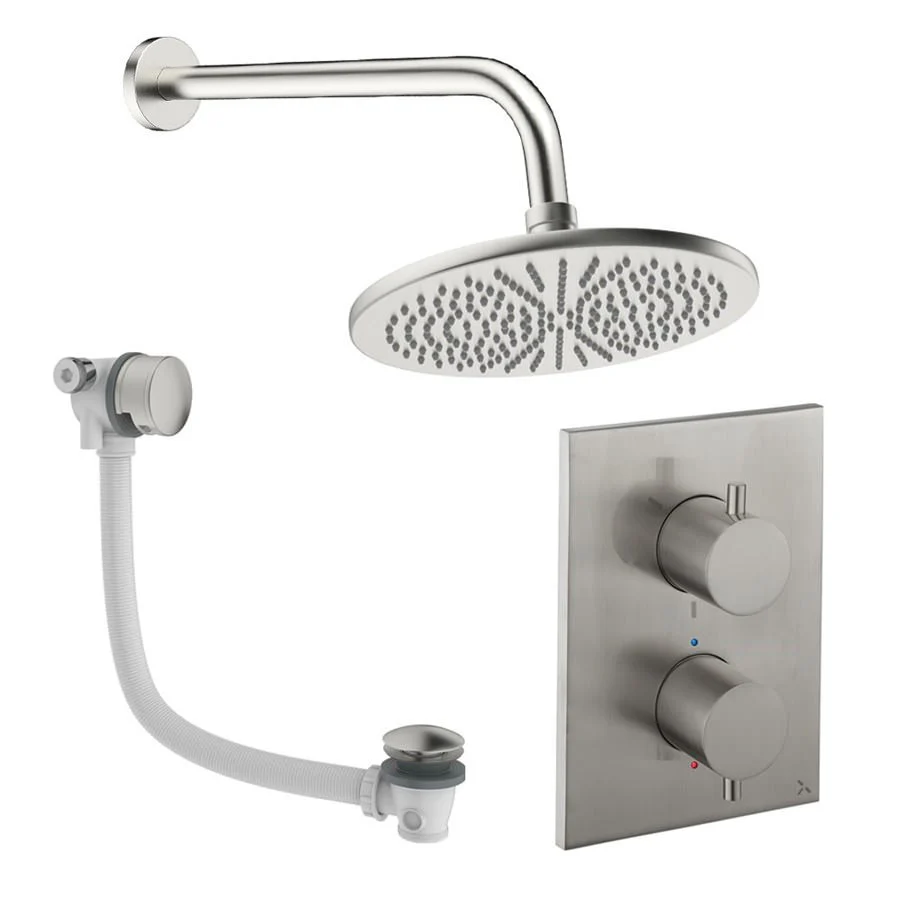

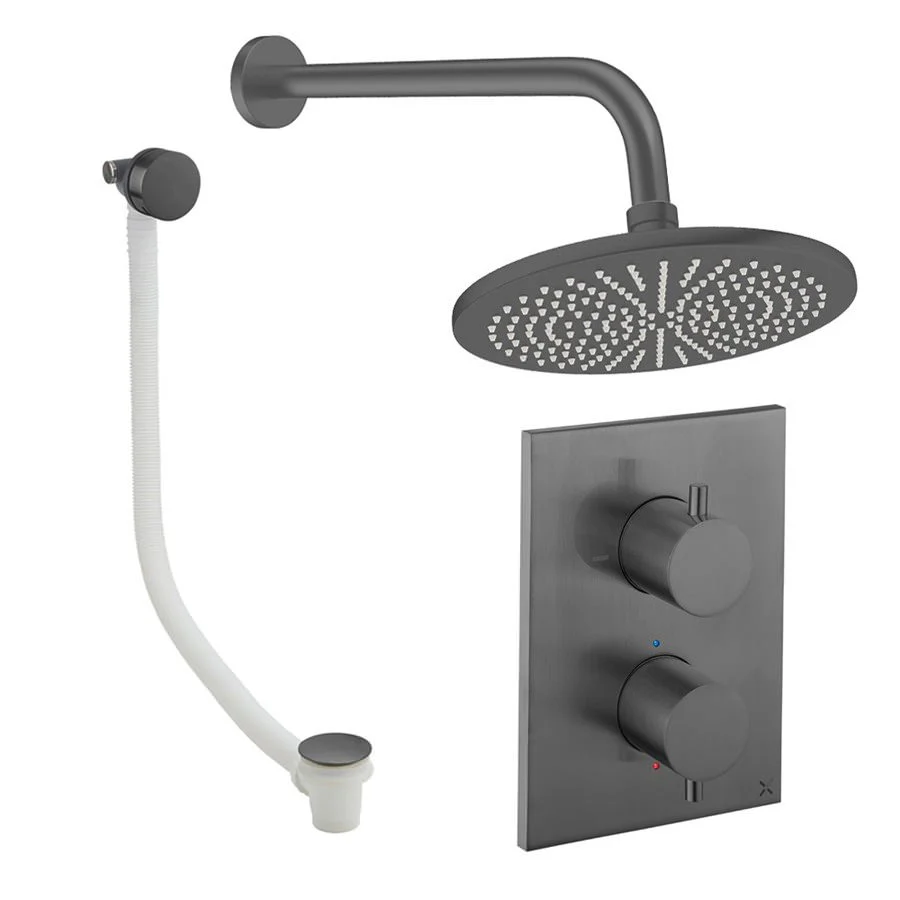

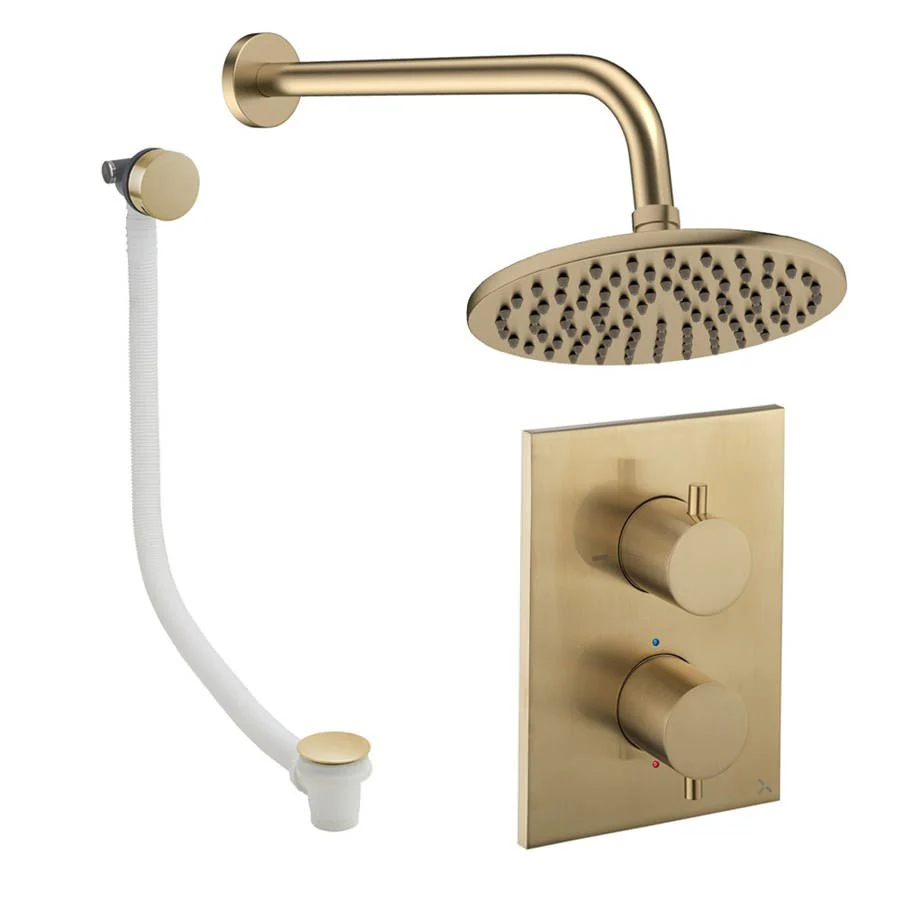

Crosswater Crossbox Shower Set 7

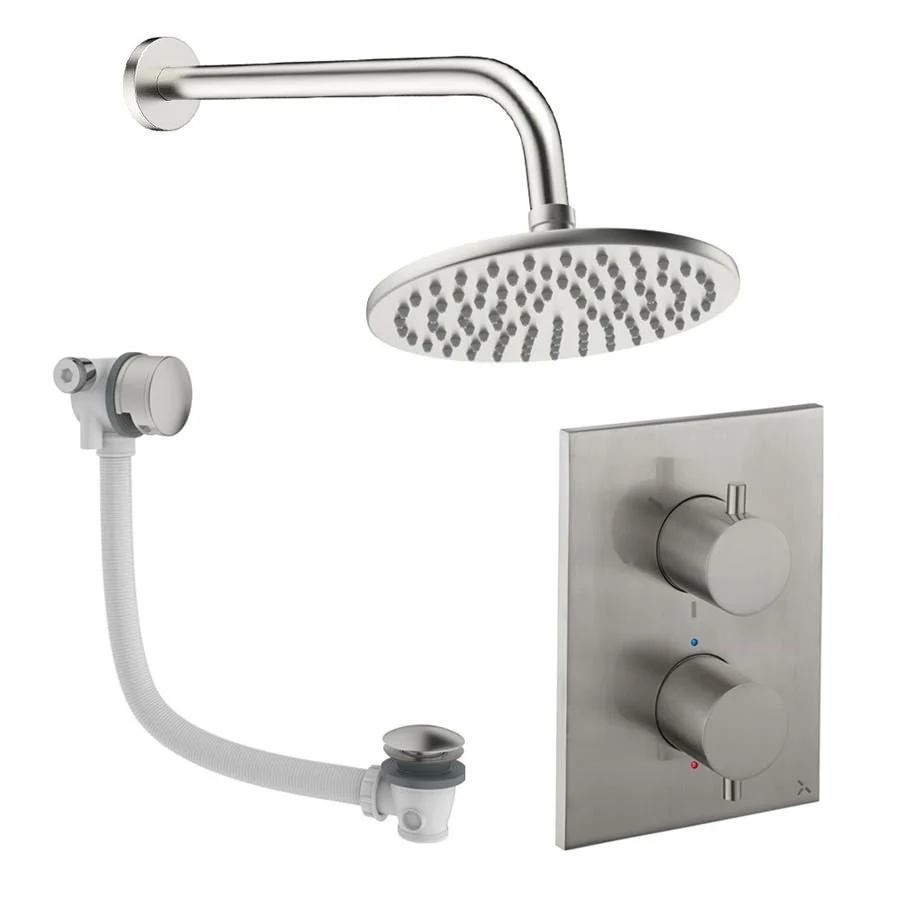

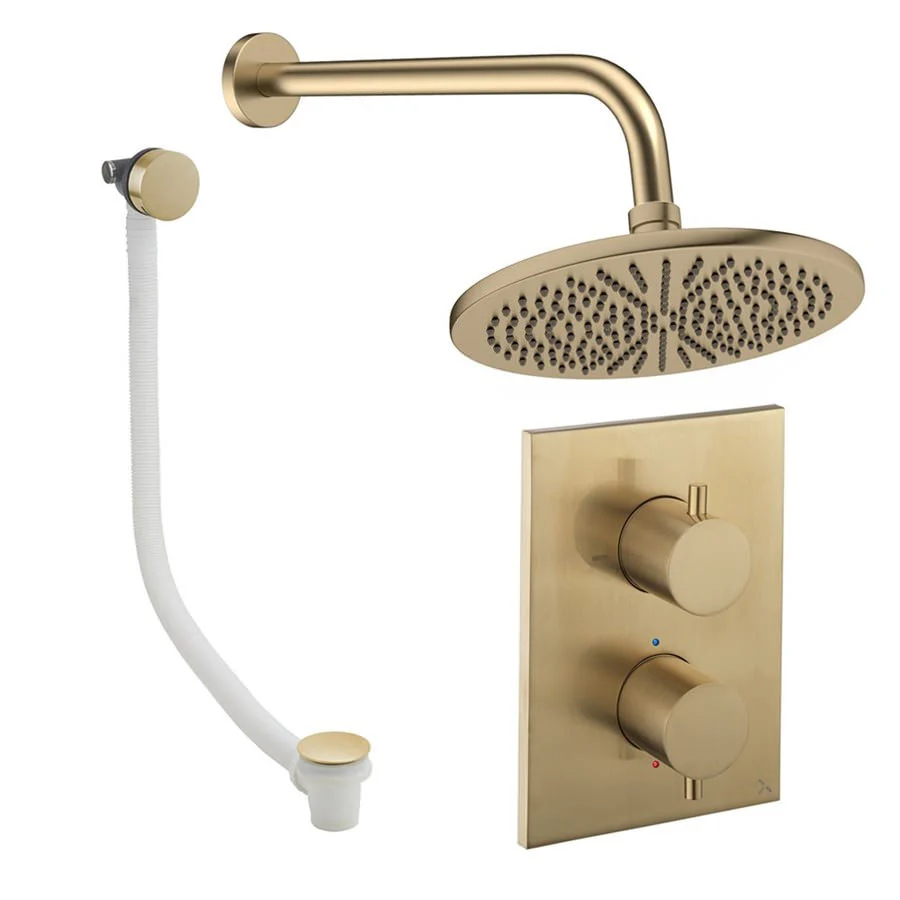

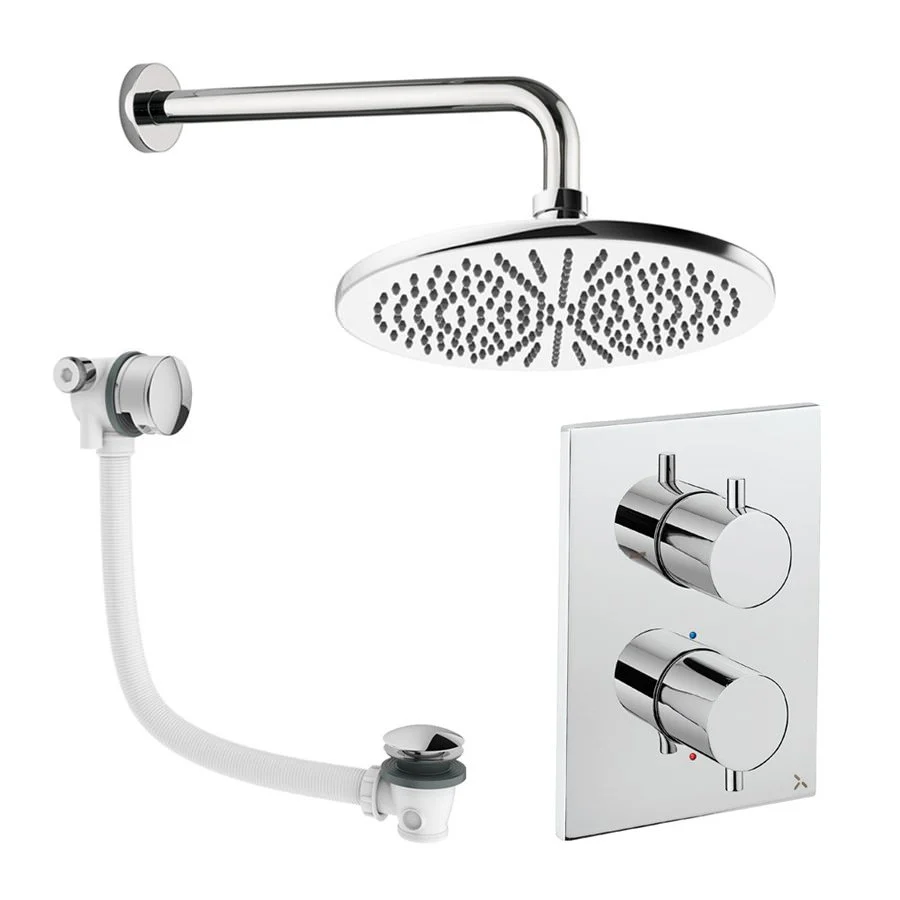

The Crosswater Crossbox Shower Set 7 is a premium shower and bath solution designed to deliver quiet, powerful performance while maintaining a sleek and modern aesthetic suitable for all bathroom types. Constructed from durable brass, this shower set offers long-lasting reliability and refined style. It features two outlets and two knob handles that provide smooth and precise control of water flow and temperature. The system requires a minimum operating water pressure of 1 bar and is ideal for high water pressure systems. With a 15-year warranty, this shower set ensures dependable performance and lasting quality. This complete set includes a concealed thermostatic shower valve, Crossbox universal box, fixed shower head with arm, and a bath filler with click-clack waste. The thermostatic shower valve is WRAS-approved and designed as a 2-outlet multi-flow thermostatic system for safe and comfortable water control. It features a backplate size of 130mm x 180mm and a super slim minimum installation depth of 60mm, reducing the amount of wall preparation required and allowing faster installation. Front or rear mounting options provide greater installation flexibility for different bathroom layouts.
The shower head and arm are both WRAS and KIWA approved and are designed for high pressure water systems. The shower head is available in a choice of 200mm or 300mm diameters with a slim 5.8mm head thickness and G1/2 inch inlet connection. It is supplied with a 330mm shower arm for comfortable overhead showering and requires a minimum of 1.0 bar water pressure. The bath filler and click-clack waste feature a length of 1340mm and a projection of 44mm. It includes a practical 3-in-1 inlet, outlet and overflow function. The system offers smooth cable waste operation or simple click-clack activation by pressing with your foot. A flexible overflow design allows easier installation in baths with unusual shapes, making it ideal for combined shower and bath installations. The recommended minimum water pressure for smooth operation is 0.5 bar.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
Special Features:
- Shower Set Includes - Concealed Thermostatic Shower Valve, Crossbox Universal Box, Fixed Shower Head and Arm, Bath Filler With Click-Clack Waste
- Quiet, Powerful Shower Performance
- Ideal for all Bathroom types
Details of Thermostatic Shower Valve:
- WRAS-Approved
- Suitable for High Water Pressure System
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- 2-Outlet Multi-Flow Thermostatic
- Size of Backplate In [mm]: 130 x 180mm [Width x Height]
- Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
- Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Flush-block Testing Plate Included for Easy Pressure Testing
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure

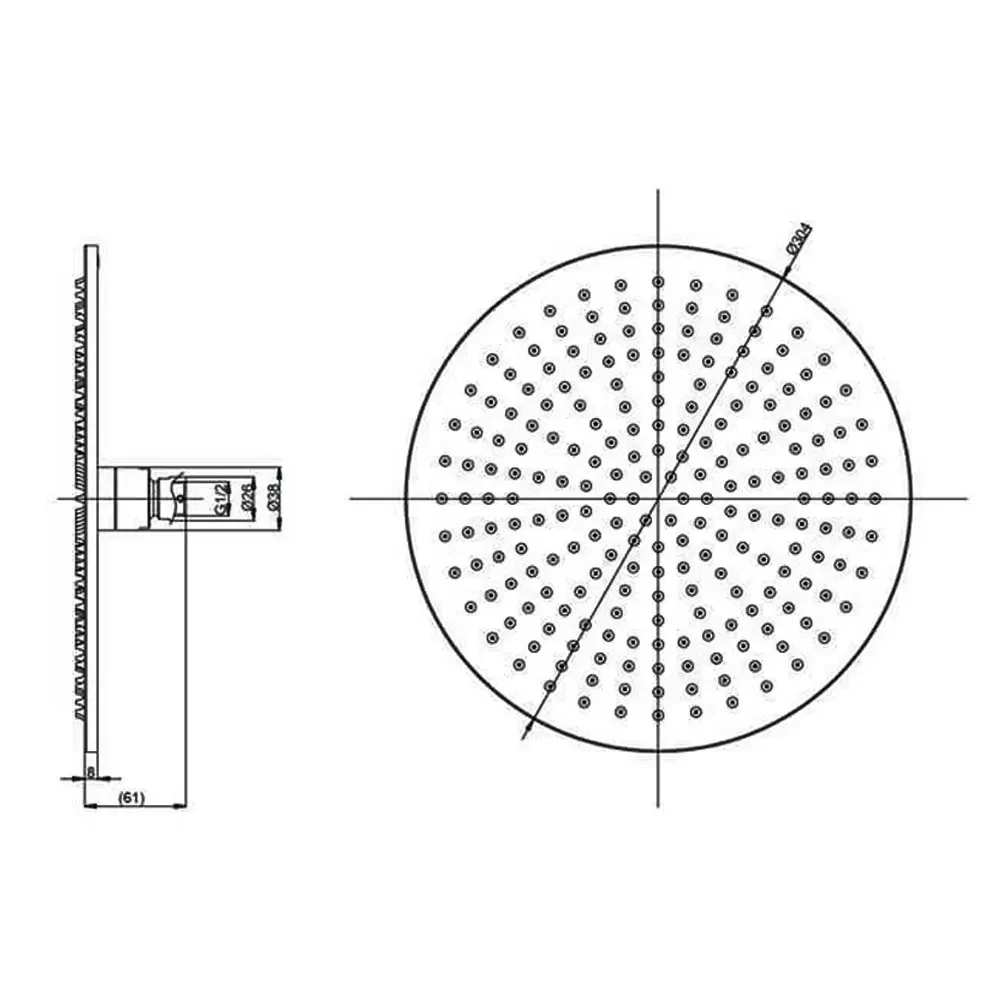

Details of Shower Head and Arm:
- WRAS- and KIWA-Approved
- Head thickness: 5.8mm
- Inlet Connection: G1/2 Inch
- Supplied with Shower Arm
- Suitable for High Water Pressure System
- Requires a Minimum of 1.0 Bar or Above Water Pressure

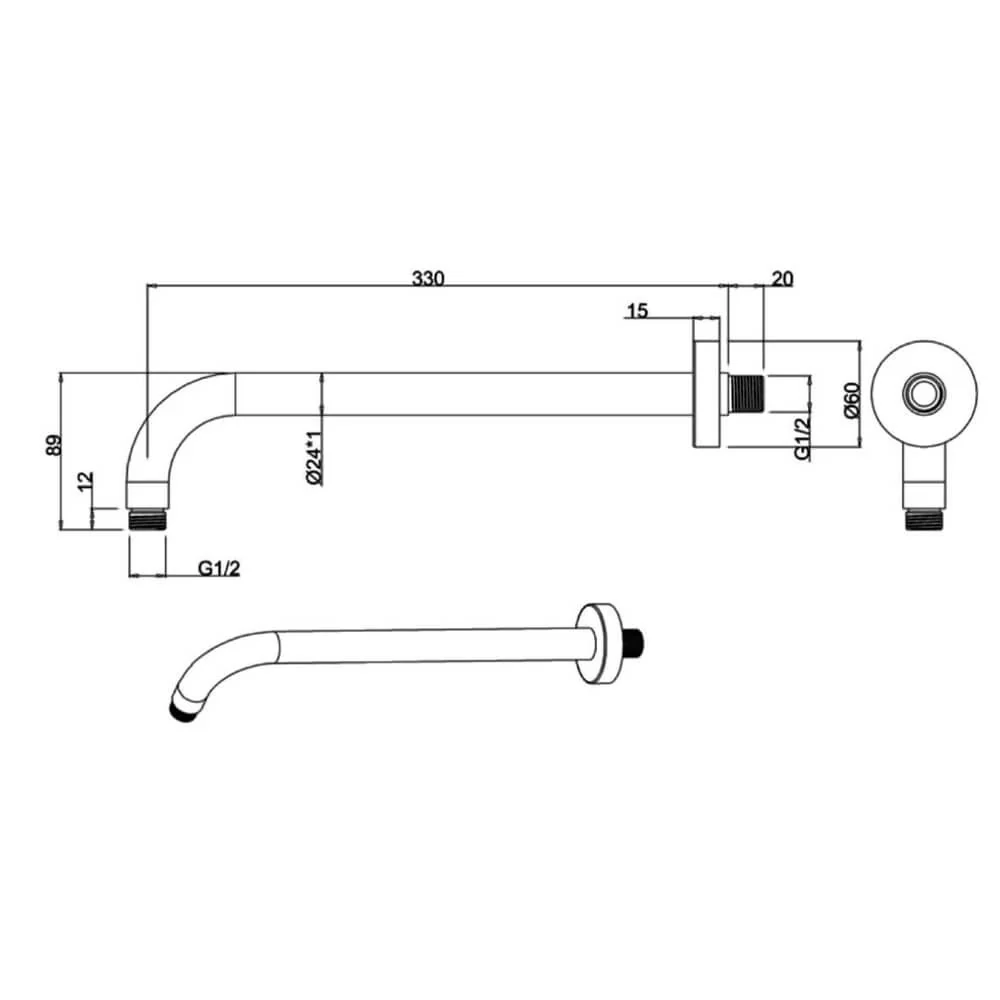

- Arm Length: 330mm

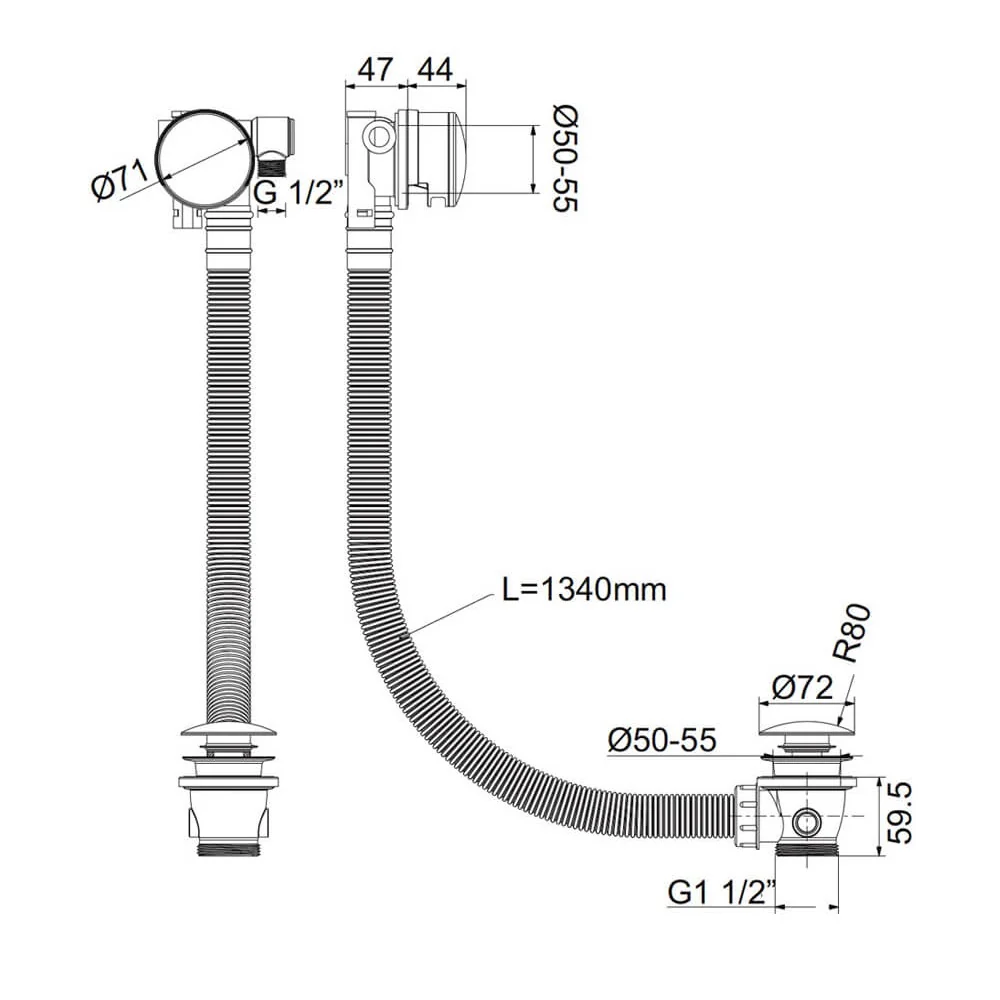

Details of Bath Filler and Click Clack Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- Ideal for Shower and Bath Combinations
- Various Styles of Visible Waste and Overflow Fittings
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for 200mm Shower Head
Assembling instruction for 300mm Shower Head
Assembling instruction for Crossbox
Assembling instruction for Bath Filler Waste

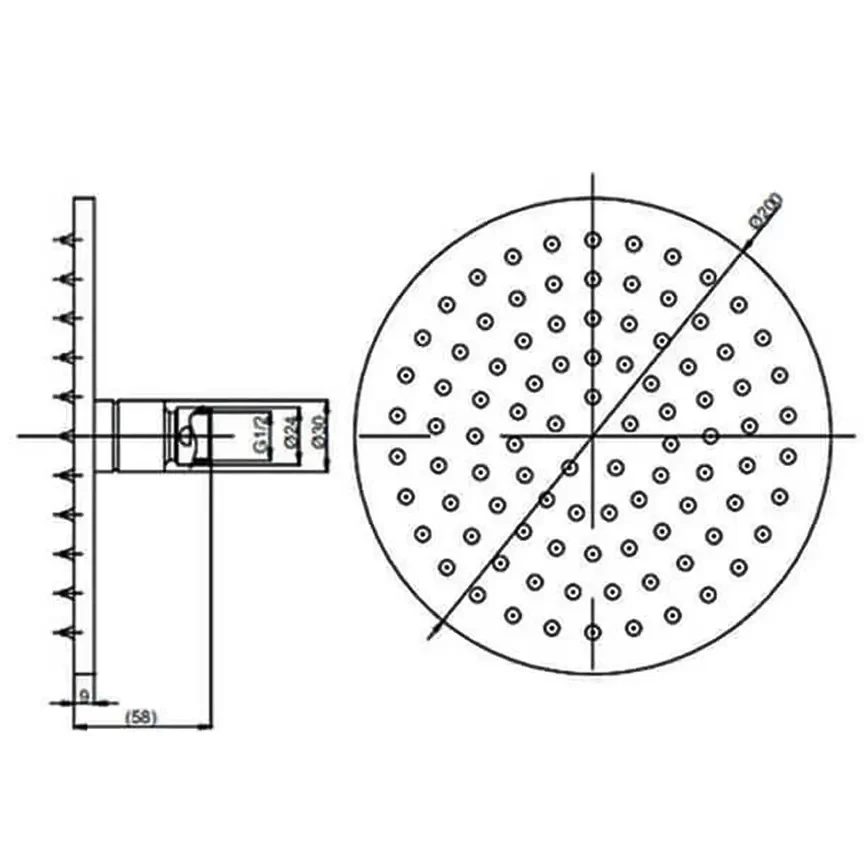

Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Datasheet for Bath Filler waste

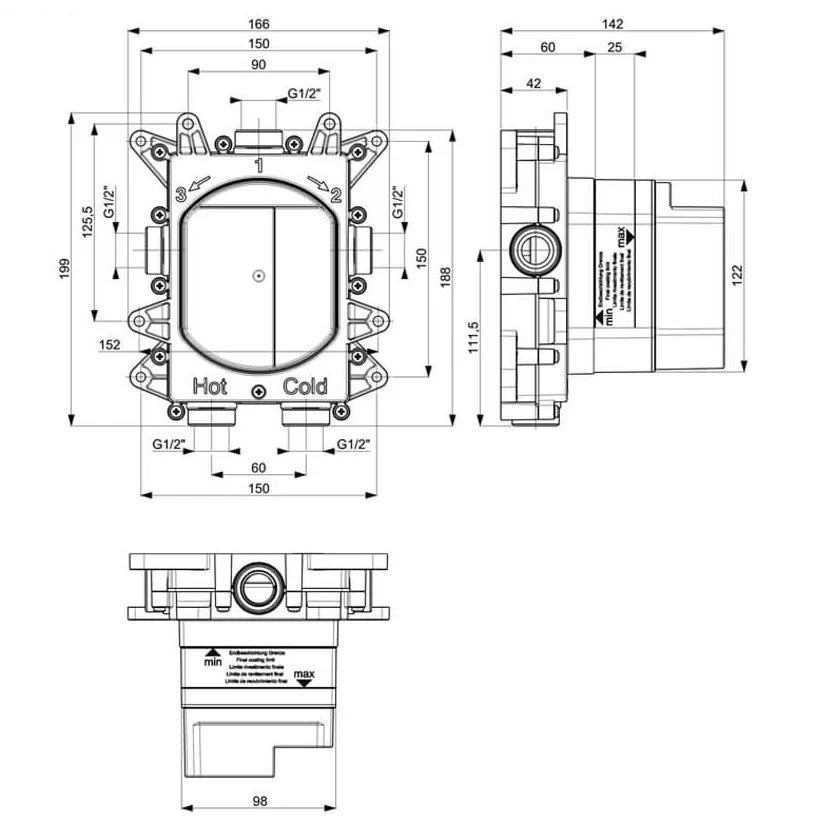

Technical Drawing
Shower Valve and crossbox
