Crosswater Crossbox Shower Set 8

The Crosswater Crossbox Shower Set 8 offers a complete, modern showering solution designed for performance, safety, and installation flexibility. Combining premium brass construction with advanced thermostatic technology, this shower set delivers a powerful and consistent shower experience while maintaining precise temperature control. Its sleek concealed design keeps the bathroom looking clean and contemporary while housing all working components securely behind the wall. This shower set includes a concealed thermostatic shower valve, Crossbox universal box, stainless steel overhead shower with wall arm, and a handset with wall outlet and hose, creating a versatile two-outlet shower system. The thermostatic valve is WRAS-approved and engineered for high water pressure systems, ensuring reliable operation and safe temperature control for everyday use. With a multi-flow two-outlet design, users can easily switch between the overhead shower and handset.

The overhead shower is crafted from durable 304 stainless steel and features a wide 300mm diameter for full-body coverage. It includes wipe-clean nozzles for easy maintenance and long-lasting performance. The wall arm measures 202mm and connects via a standard G1/2-inch inlet for secure installation. For added flexibility, the set also includes a high-quality brass shower handset supplied with a hose and a wall-mounted outlet with an integrated holder. The handset features a single spray pattern designed for consistent water flow and comfortable use. It is WRAS-approved and suitable for both low and high water pressure systems, operating efficiently between 0.2 and 5.0 bar.

Specifications:

• Warranty: 15 Years
• Product Type: Shower Set
• Brand: Crosswater
• Collection: Crossbox
• Style: Modern
• Material: Brass
• Outlets: 2
• Handles: 2
• Handle Type: Knob
• Minimum Operating Water Pressure: 1 Bar

Special Features:

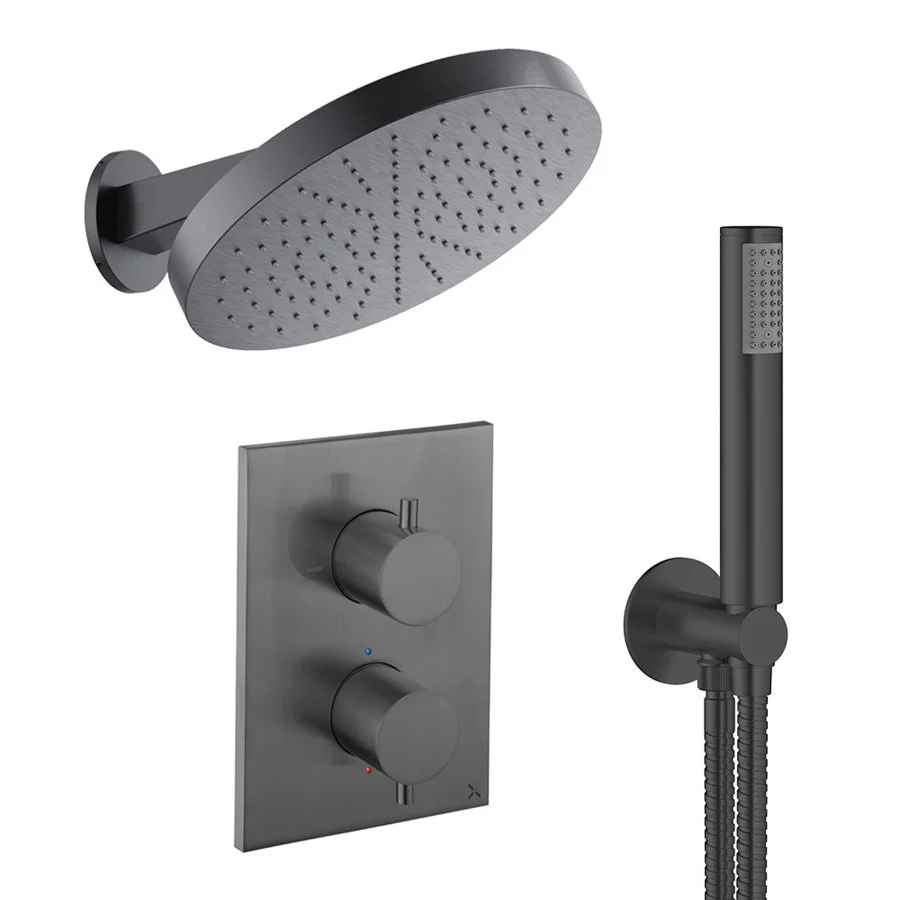

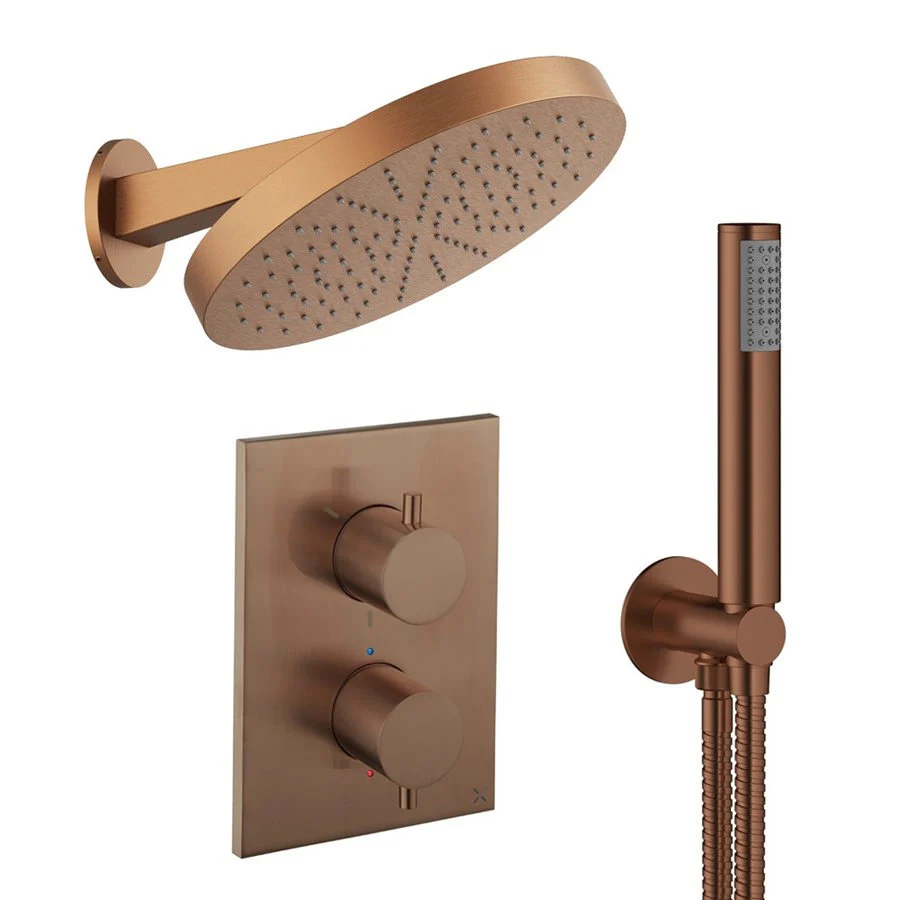

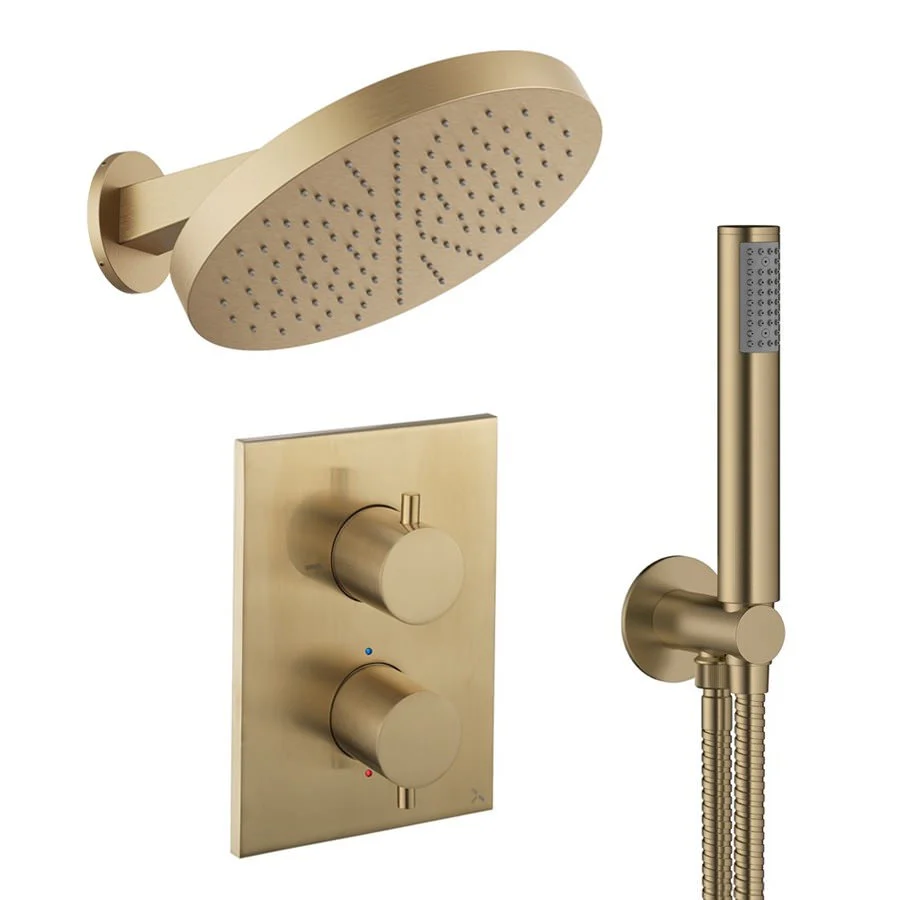

• Shower Set Includes - Concealed Thermostatic Shower Valve, Crossbox Universal Box, Stainless Steel Shower Head, Handset with Wall Outlet & Hose
• Quiet, Powerful Shower Performance
• Ideal for all Bathroom types

Details of Thermostatic Shower Valve:

• WRAS-Approved
• Suitable for High Water Pressure System
• Front or Rear Mounting Options Increase Ease of Installation and Flexibility
• 2-Outlet Multi-Flow Thermostatic
• Size of Backplate: 130mm x 180mm [Width x Height]
• Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
• Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
• Flush-block Testing Plate Included for Easy Pressure Testing
• Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
• Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
• Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint

Details of Crossbox:

• Suitable for High Water Pressure System
• Works On a Minimum of 1.0 Bar or Above Water Pressure

Details of Shower Head:

• Single Spray Pattern
• Supplied with Wall Arm
• Wipe Clean Nozzles
• Material: 304 Stainless Steel
• Diameter: 300mm
• Arm Length: 202mm
• Inlet Connection: G1/2-Inch

Details of Shower Handset:

• Supplied with a Hose and a Wall-Mounted Outlet with an Integrated Holder
• Single Spray Pattern
• Constructed from High-Quality Brass Material
• Handset Height: 194.5mm
• WRAS-Approved
• Suitable for Low and High Water Pressure Systems
• Works On a Minimum of 0.2 Bar to 5.0 Bar Water Pressure


Assembling instruction for Shower Valve

Assembling instruction for Crossbox

Assembling instruction for Shower Kit

Assembling instruction for Shower Head

Datasheet for Shower Valve

Datasheet for Crossbox

Datasheet for Shower Kit

Datasheet for Shower Head

Technical Drawing

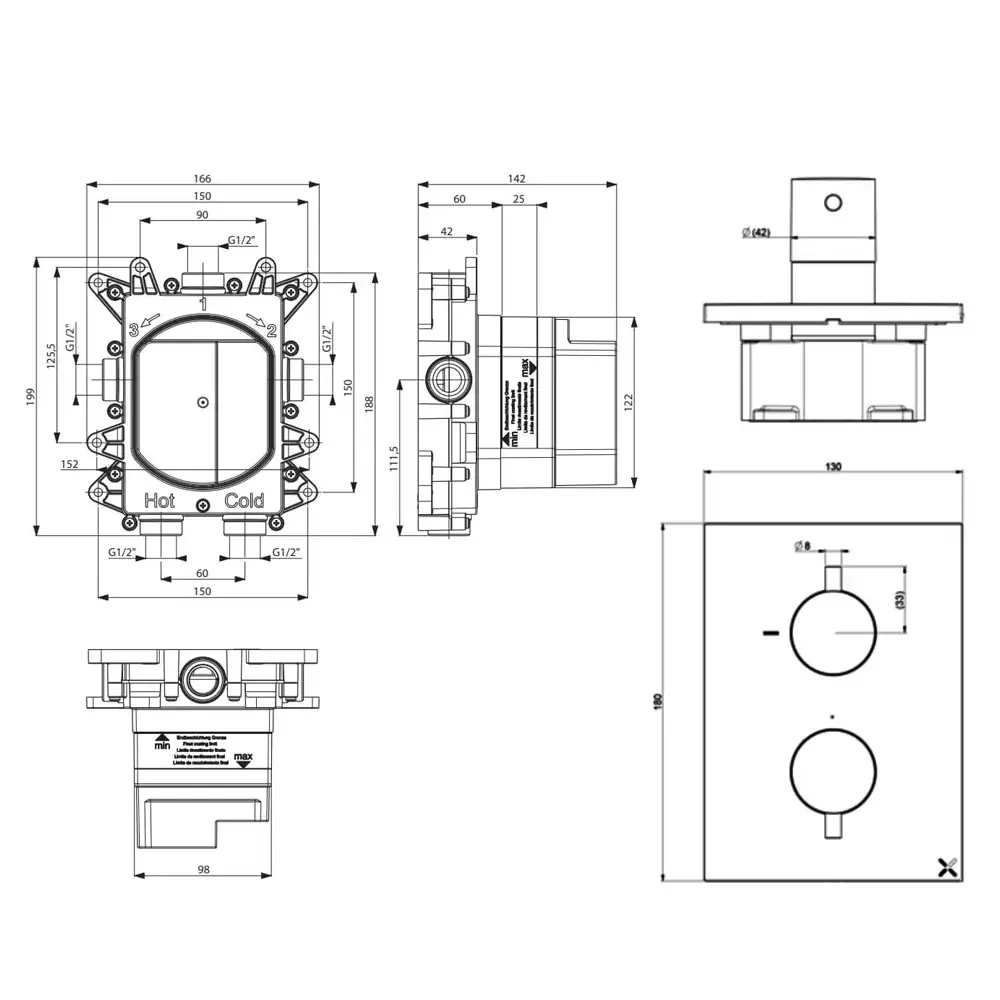

Shower Valve and Crossbox

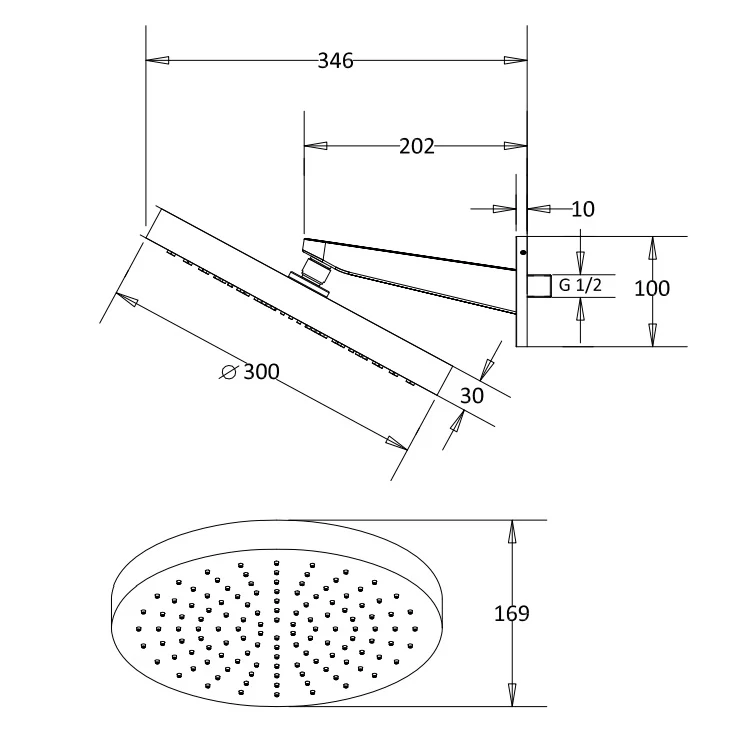

Shower Head

Handset with Wall Outlet & Hose
