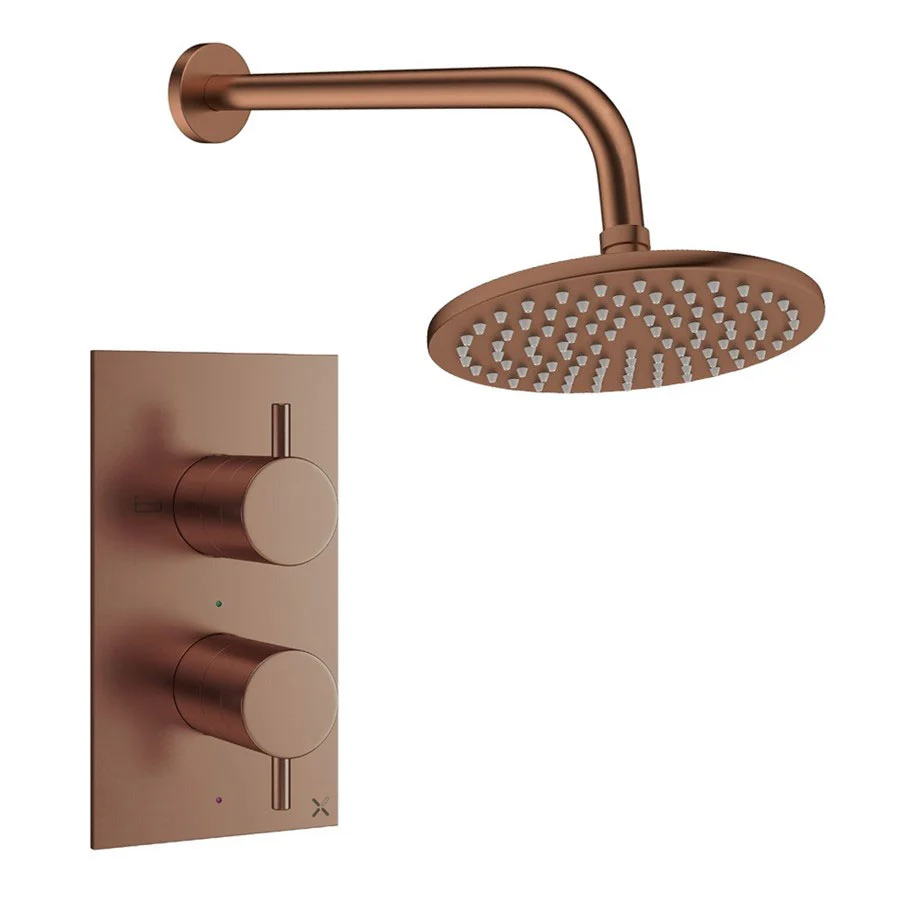

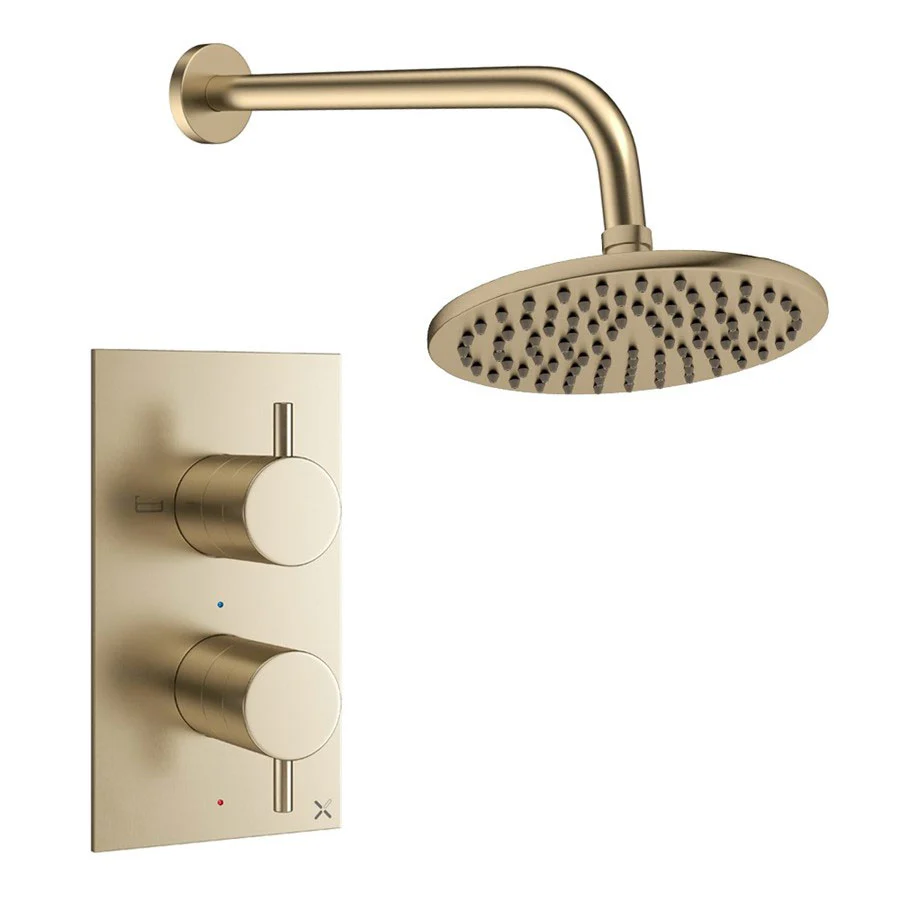

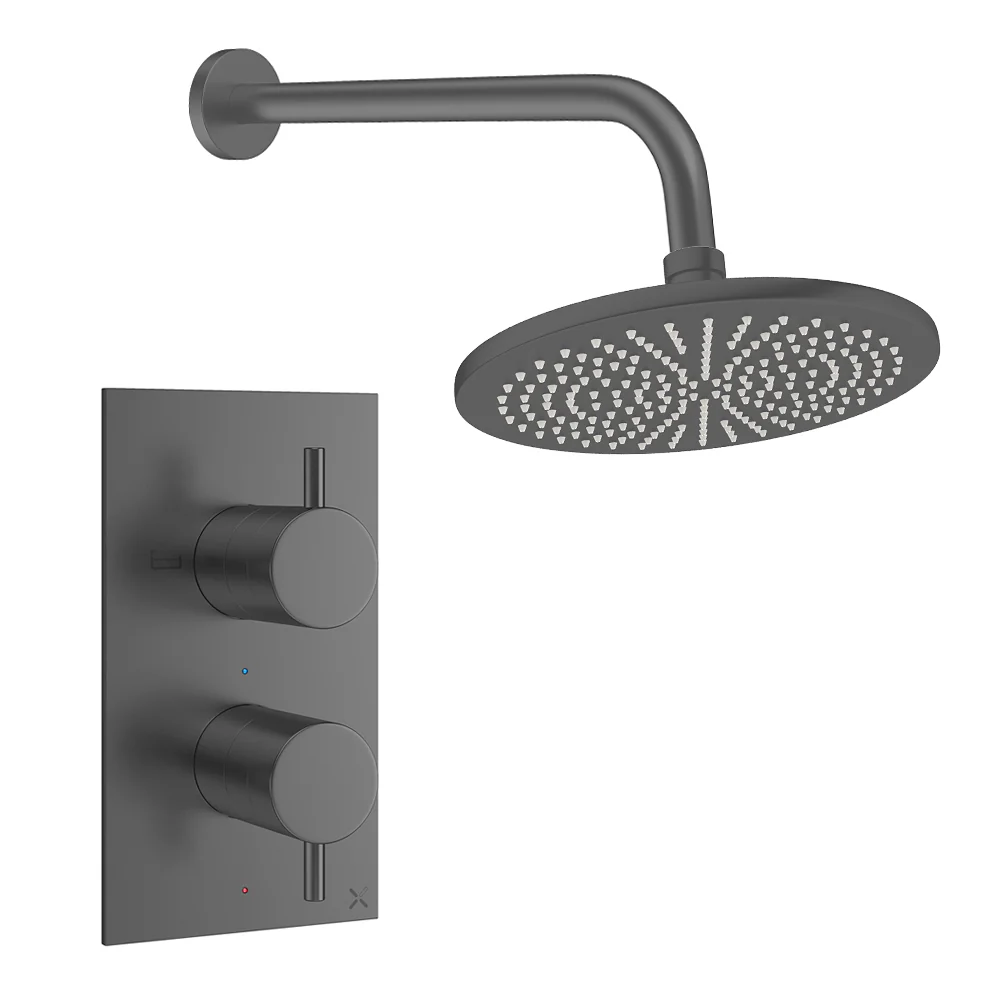

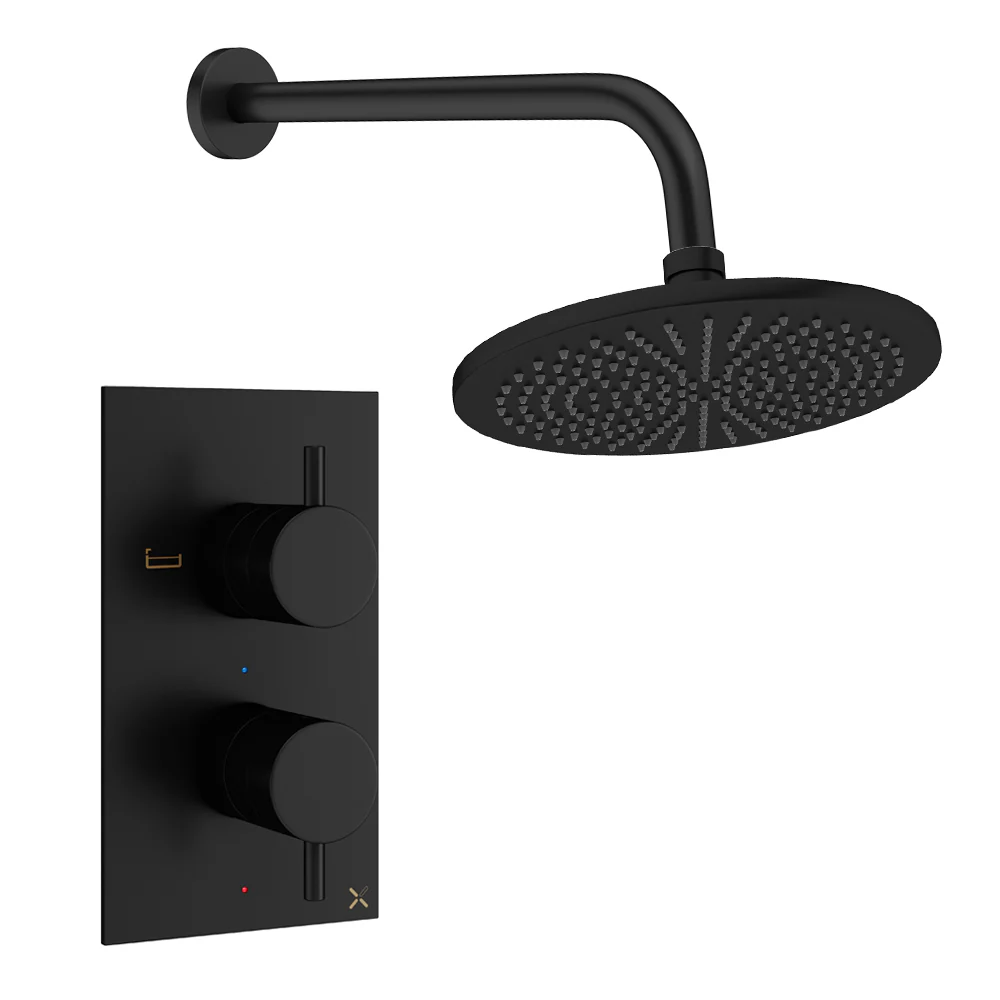

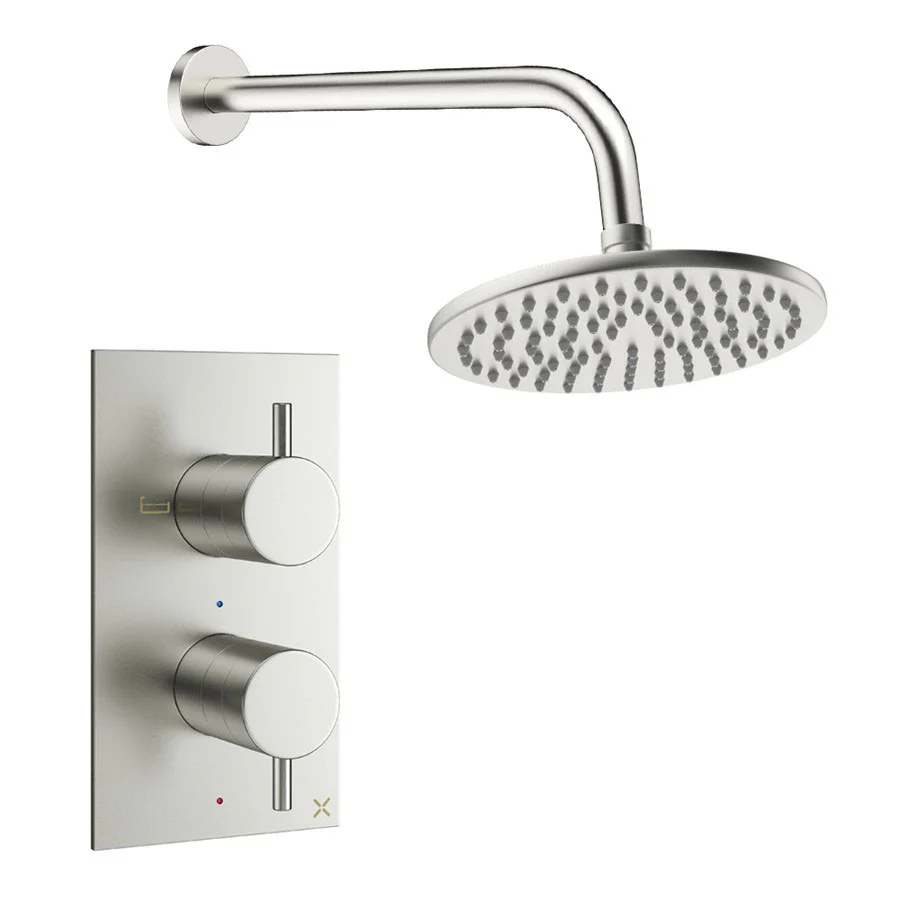

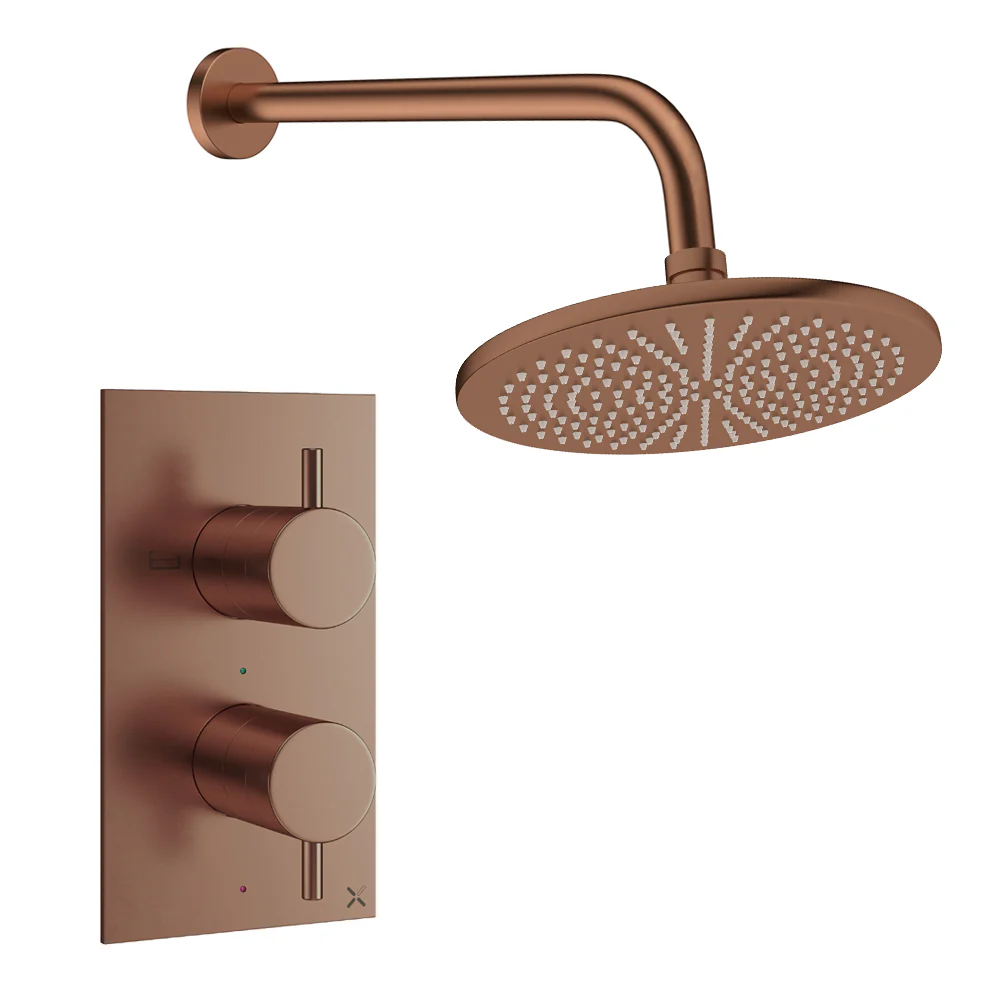

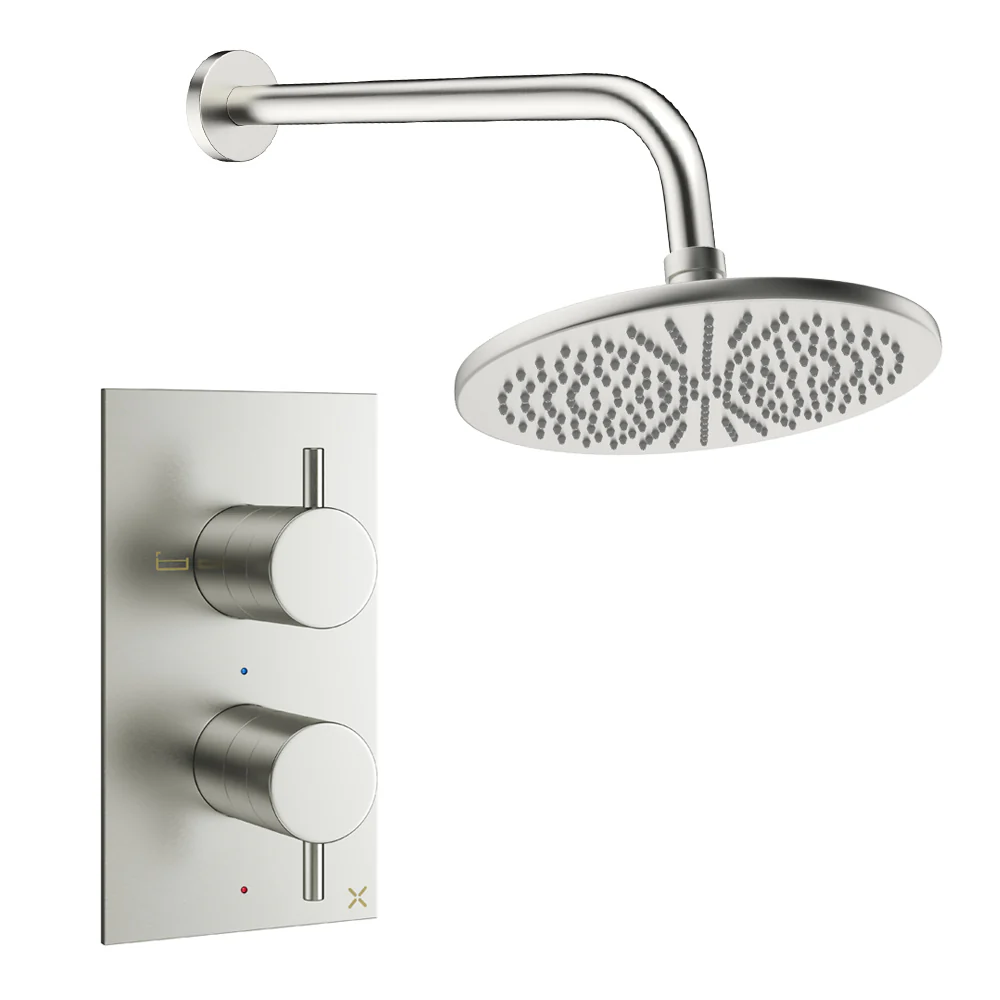

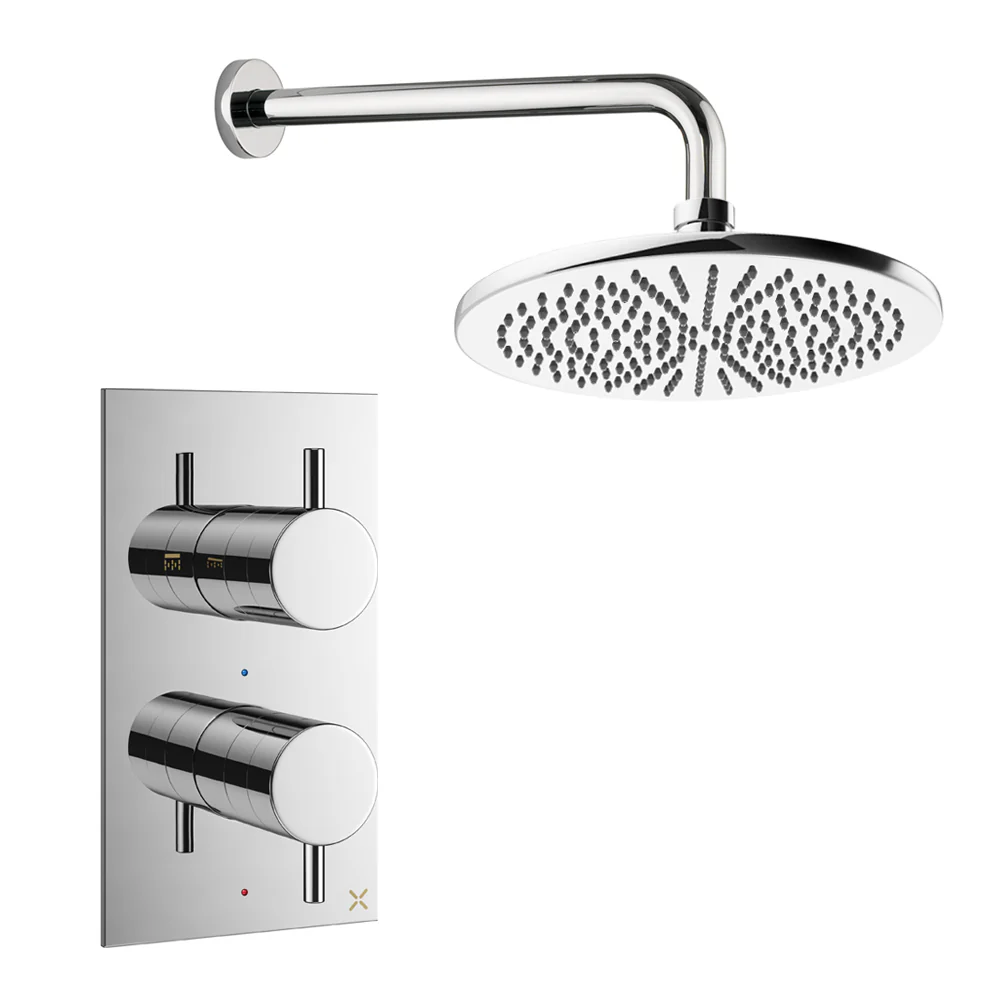

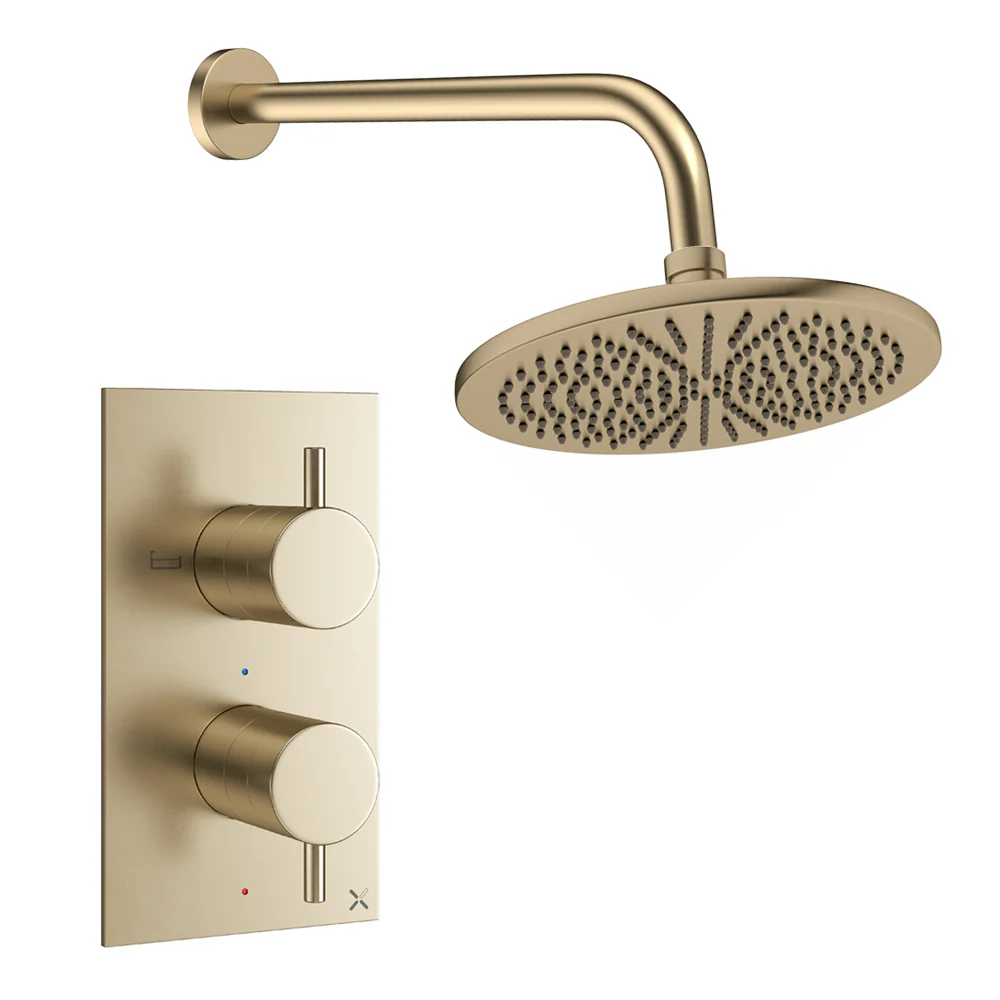

Crosswater Design Shower Set 1
Crosswater Design Shower Set 1 from the Design collection delivers a sleek, modern solution for contemporary bathrooms, combining performance, safety and refined styling. Crafted from high-quality brass and ABS components, this shower set is built for durability and long-term reliability, backed by a 15 year warranty. Designed for medium pressure water systems, it operates efficiently between 0.5 bar and 5 bar. The set features a single outlet and two ergonomic knob handles, allowing easy and accurate control of both water flow and temperature for consistent everyday comfort. A built-in thermostatic cartridge and diverter ensure precise temperature regulation, while integrated anti-scald protection safeguards against sudden temperature fluctuations. The shower set includes the trim set, valve body, shower arm and shower head, offering a complete and coordinated installation. Front access to the valve provides convenient servicing and maintenance. The backplate measures 120mm wide by 215mm high, while the valve size is 66mm wide, 132mm deep and 183mm high. It comes complete with a collar for a neat and professional finish.
The inlet and outlet connections are G3/4 inch, with a G1/2 inch inlet connection on the shower head. The shower arm length is 330mm. The shower head has a height of 58mm and is available in 200mm thickness at 5.8mm or 300mm thickness at 8mm, providing generous water coverage for a luxurious showering experience. This product meets BS EN 1111:2017 standards and holds WRAS approval 2203300, KIWA Reg 4 approval 2201704, TMV2 approval 2203756, and KIWA approval for the shower head under 2312748, ensuring quality, safety and compliance.
Specifications:
- Warranty: 15 Years
- Brand: Crosswater
- Collection: Design
- Style: Modern
- Material: Brass/ABS
- Outlets: 1
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 0.5 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Trim Set, Valve Body, Shower Arm and Shower Head
- Easy and accurate control of water flow and temperature is provided for consistent comfort
- Protection against scalding and sudden temperature changes is built in for added safety
- Front access is provided to allow easy servicing and maintenance
- Size of Backplate: 120 x 215mm
- Comes with Collar

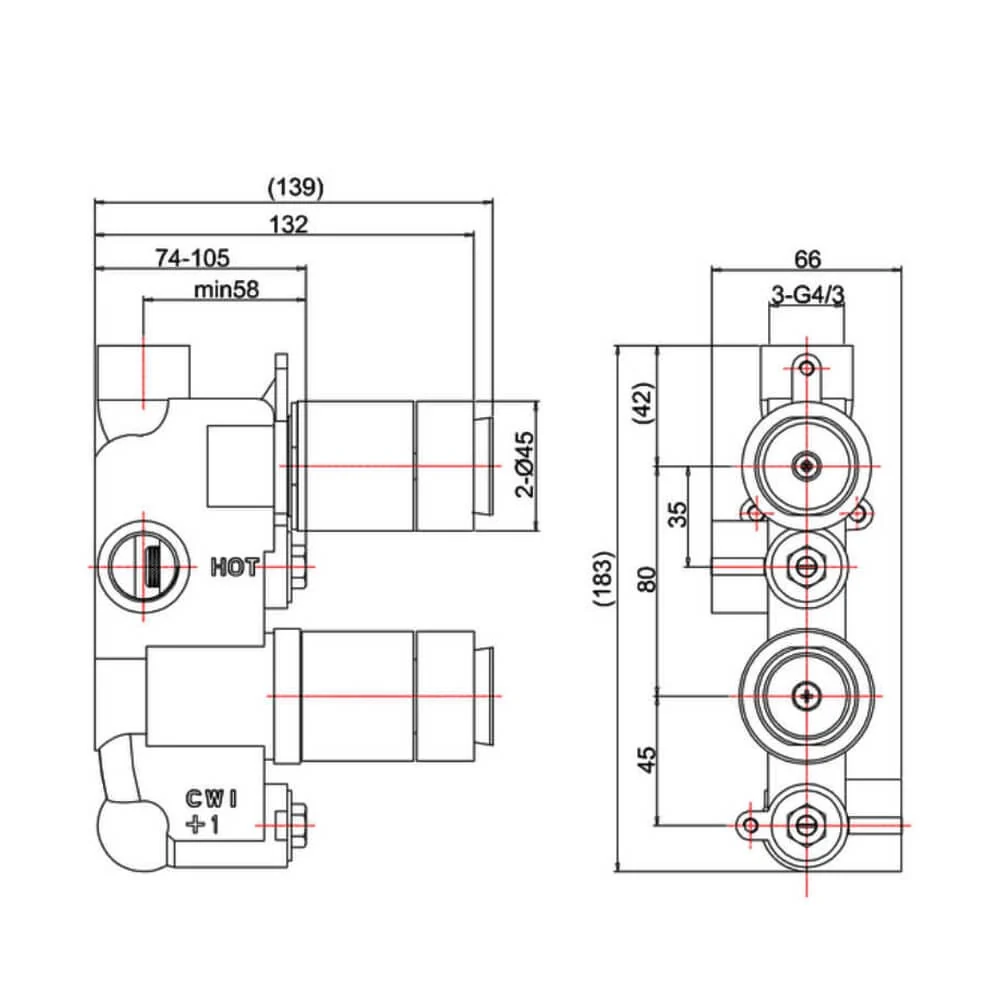

- Valve Size: Width 66 x Depth 132 x Height 183mm
- Inlet and Outlet Connection: G3/4 Inch
- Diverter and Thermostatic Cartridge
- WRAS: 2203300, KIWA Reg 4: 2201704 KIWA and TMV2:- 2203756
- Standard BS EN 1111:2017
- Suitable for Medium Pressure Water System

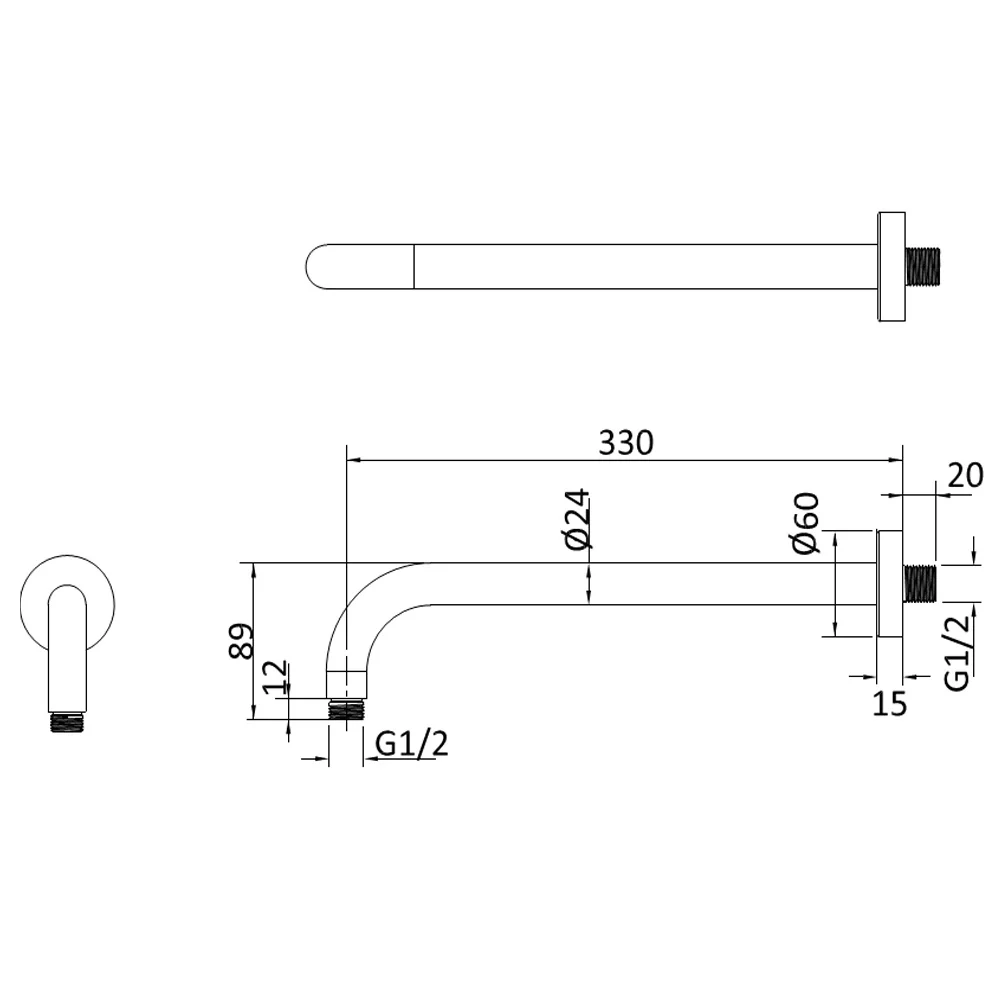

- Shower Length: 330mm
- Shower head G1/2" Inlet Connection

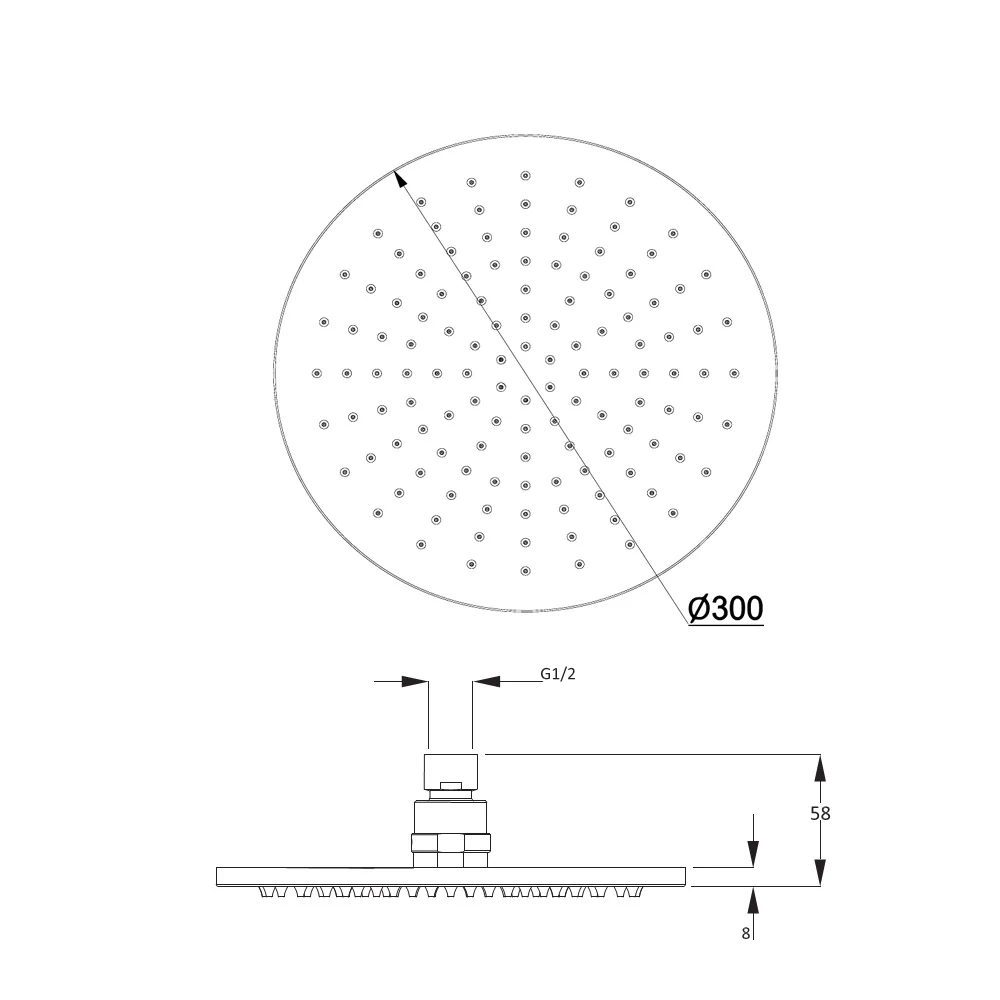

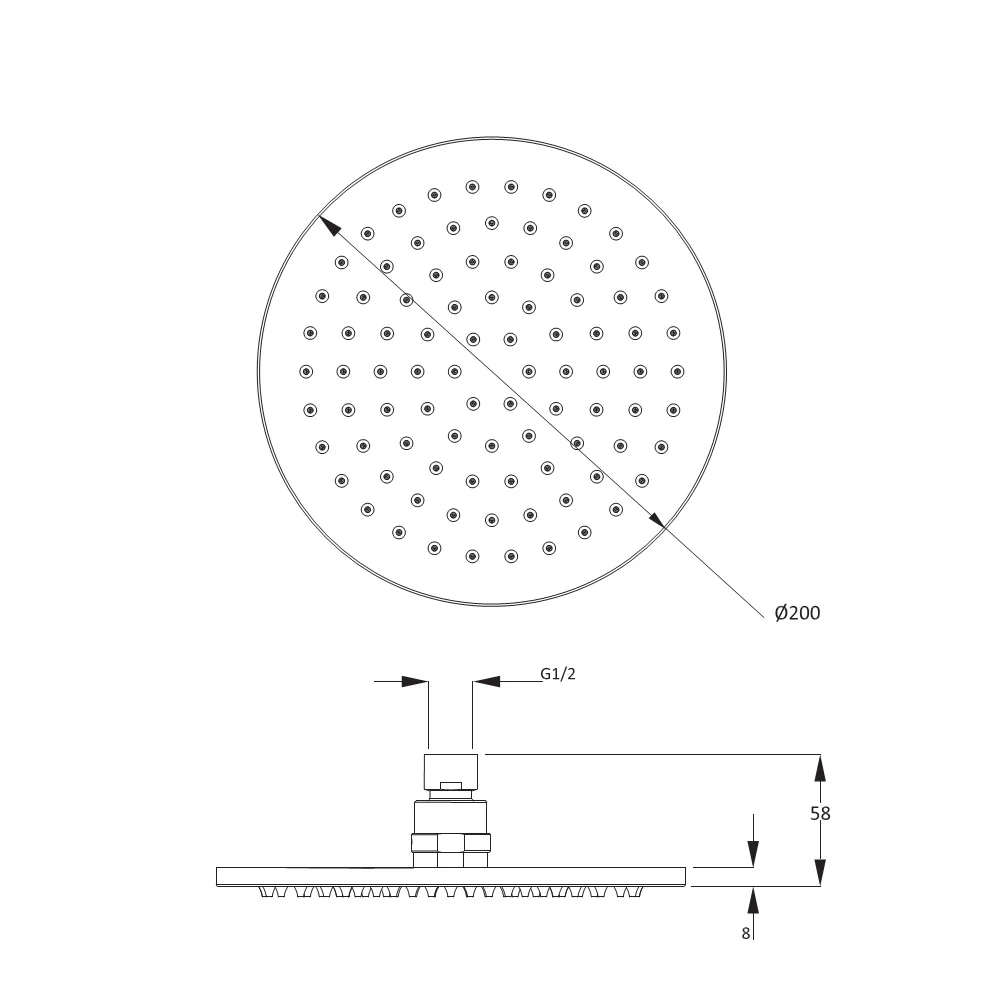

- Shower head Height: 58mm
- Shower head Thickness: 200mm: 5.8mm and 300mm: 8mm
- Shower head KIWA Approved: 2312748
Assembling instructions for Shower Valve
Assembling instructions for Shower 200mm Shower Head
Assembling instructions for Shower 300mm Shower Head
Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Technical Drawing
