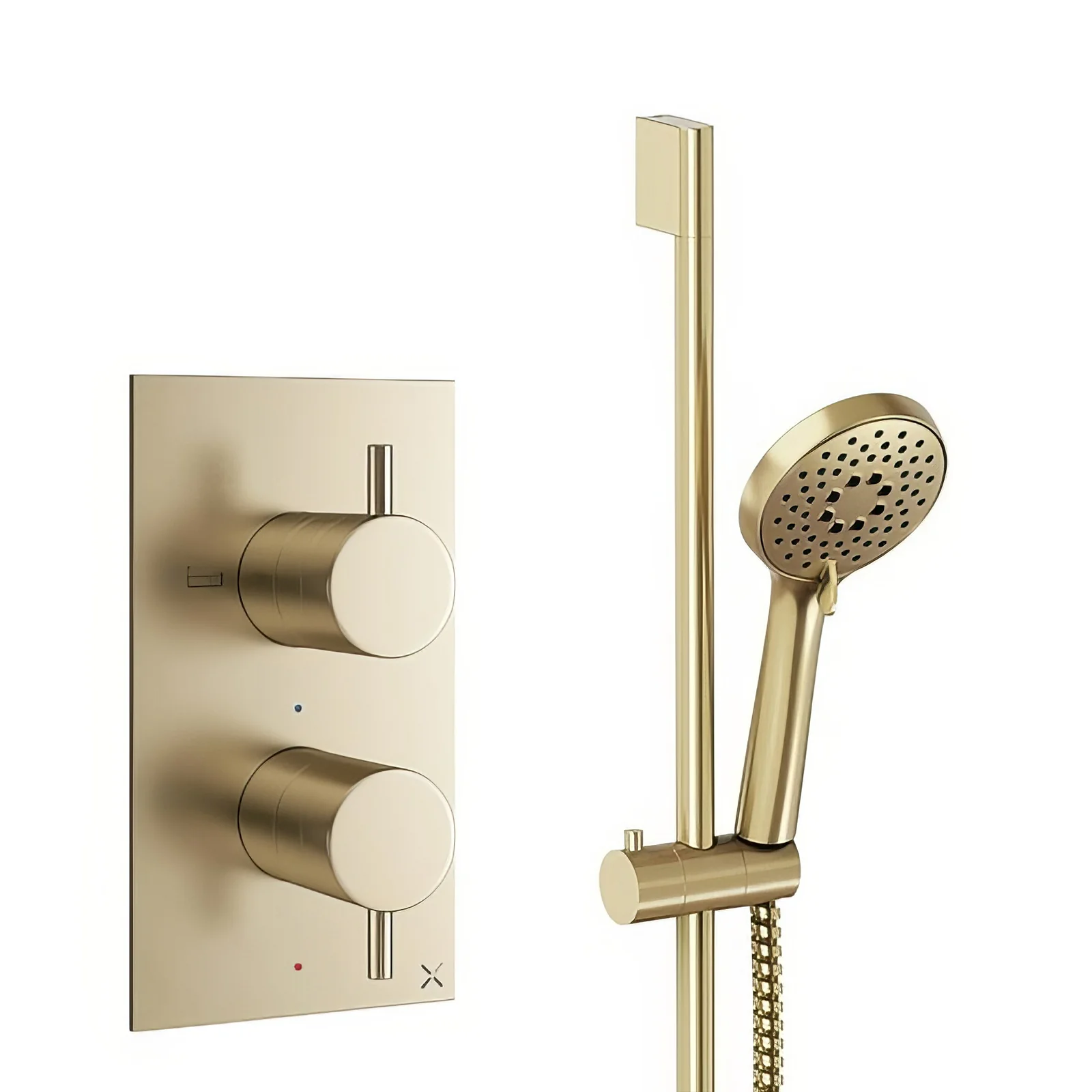

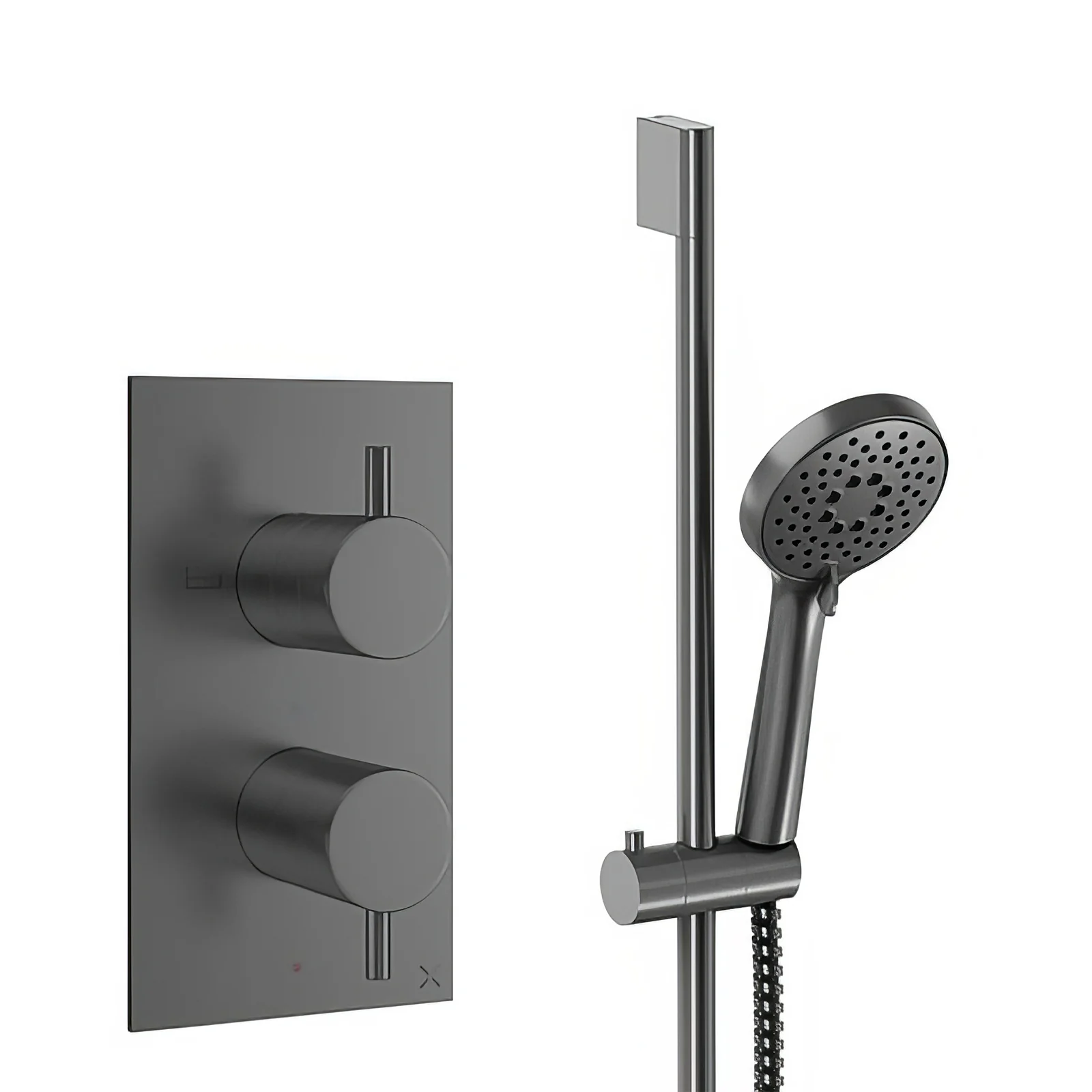

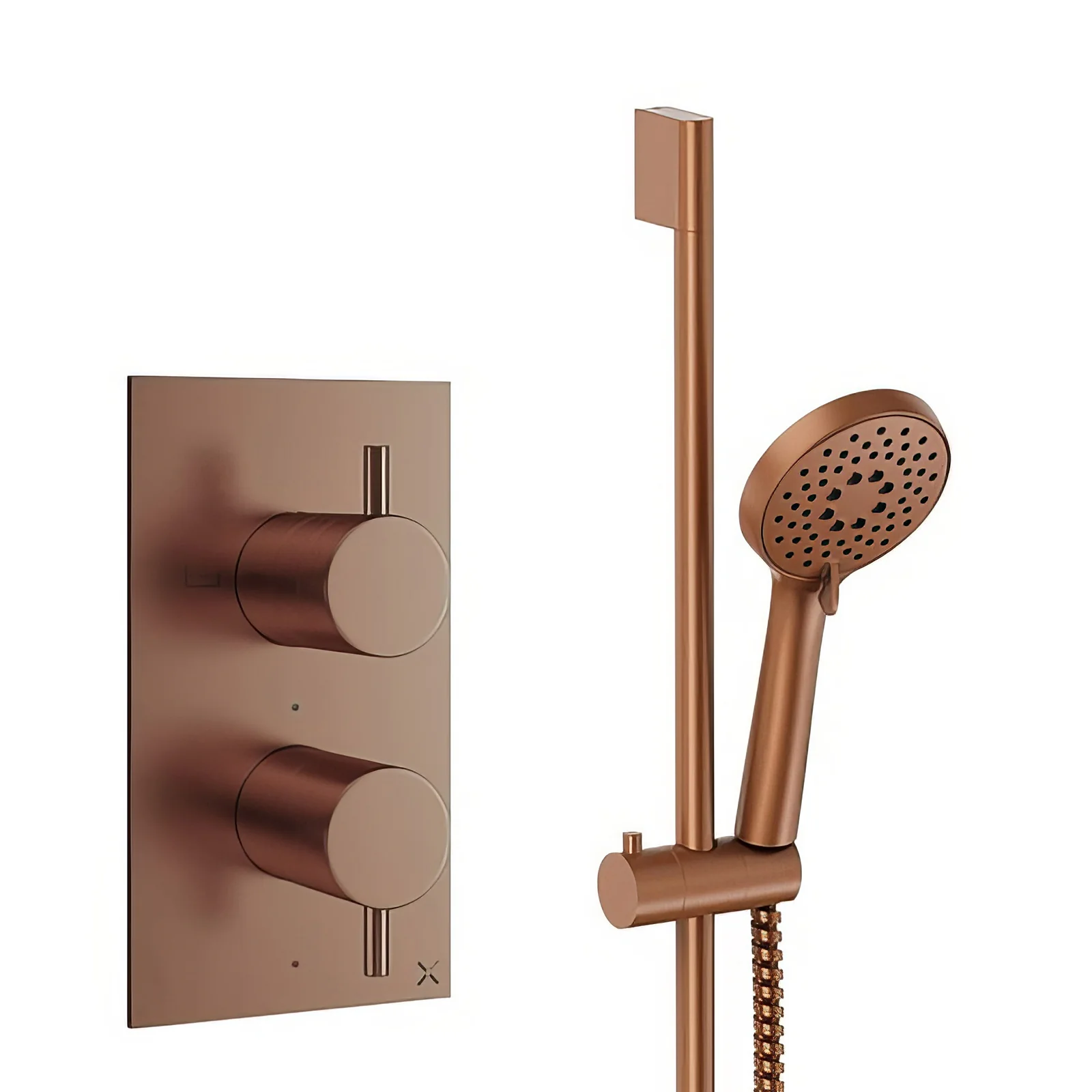

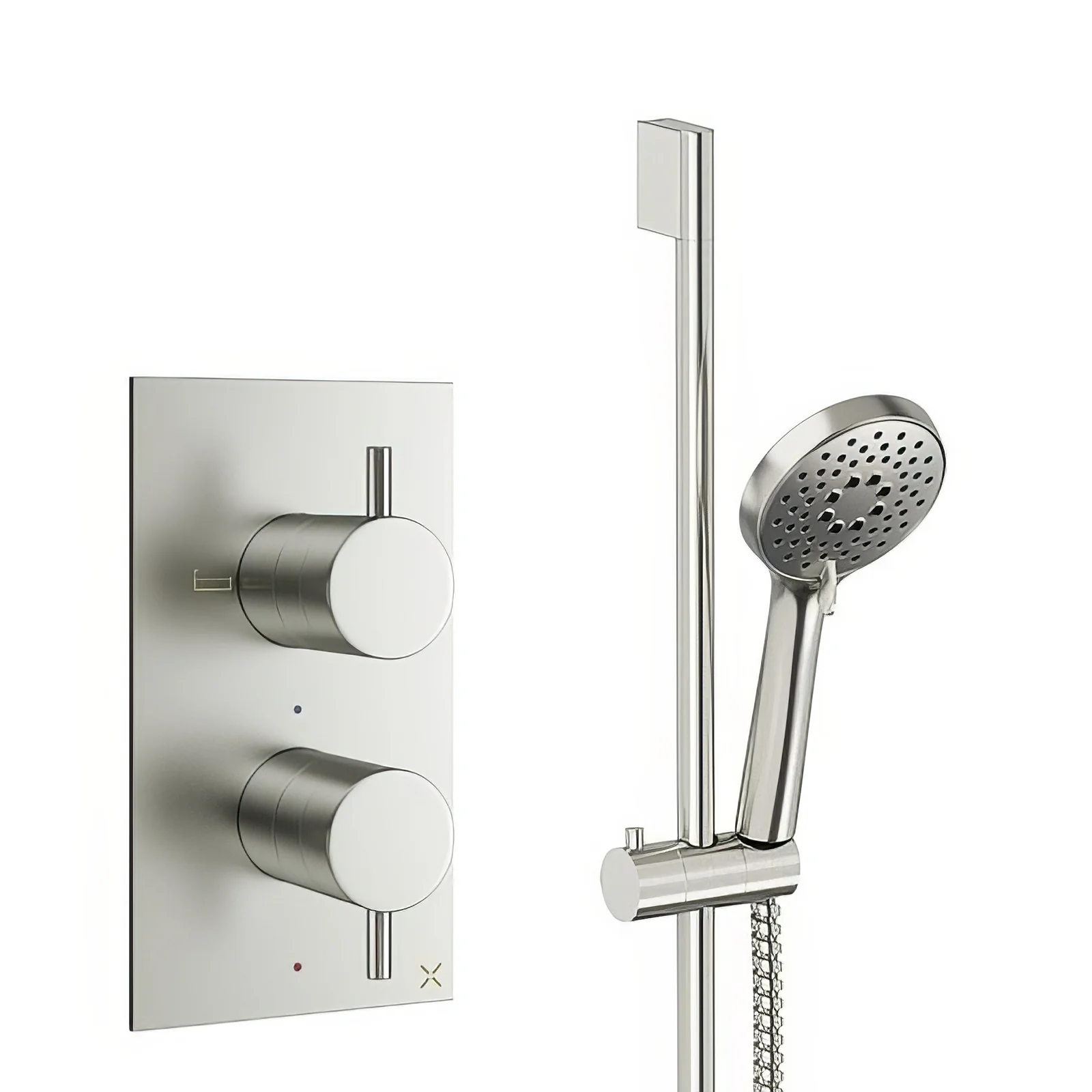

Crosswater Design Shower Set 2
Crosswater Design Shower Set 2 from the Design collection offers a modern and versatile showering solution, combining sleek styling with advanced performance and safety features. Manufactured from high-quality brass and ABS, this shower set is designed for durability and long-lasting reliability, and comes with a 15 year warranty for added peace of mind. Suitable for medium pressure water systems, the valve operates efficiently between 0.5 bar and 5 bar. It features one outlet and two stylish knob handles, providing easy and precise control over water flow and temperature for a consistently comfortable shower. A built-in thermostatic cartridge and diverter ensure stable temperature regulation, while integrated anti-scald protection guards against sudden temperature changes. The set includes the trim set, valve body, slide rail, round hand shower with hose, and wall outlet, delivering a complete and coordinated installation. The slide rail comes with a handset holder for adjustable positioning and convenience. Front access to the valve allows for straightforward servicing and maintenance.
The backplate measures 120mm wide by 215mm high, and the shower valve size is 66mm wide, 132mm deep and 183mm high. The valve features G3/4 inch inlet and outlet connections. The shower handset measures 102mm in diameter with a height of 265mm and offers three spray functions for a customised showering experience. It requires a minimum operating pressure of 1.0 bar and a maximum of 5.0 bar, making it suitable for high-pressure water systems. The handset includes a shower hose and features a G1/2 inch inlet connection. The outlet elbow measures 51mm in diameter with a depth of 23mm. This shower set complies with BS EN 1111:2017 standards and holds WRAS approval 2203300, KIWA Reg 4 approval 2201704, TMV2 approval 2203756, and WRAS approval for the shower handset, ensuring safety, quality and regulatory compliance.
Specifications:
- Warranty: 15 Years
- Brand: Crosswater
- Collection: Design
- Style: Modern
- Material: Brass/ABS
- Outlets: 1
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 0.5 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Trim Set, Valve Body, Slide Rail, Round Hand Shower with Hose and Wall Outlet
- Easy and accurate control of water flow and temperature is provided for consistent comfort
- Protection against scalding and sudden temperature changes is built in for added safety
- Front access is provided to allow easy servicing and maintenance
- Size of Backplate: 120 x 215mm
- Comes with Collar

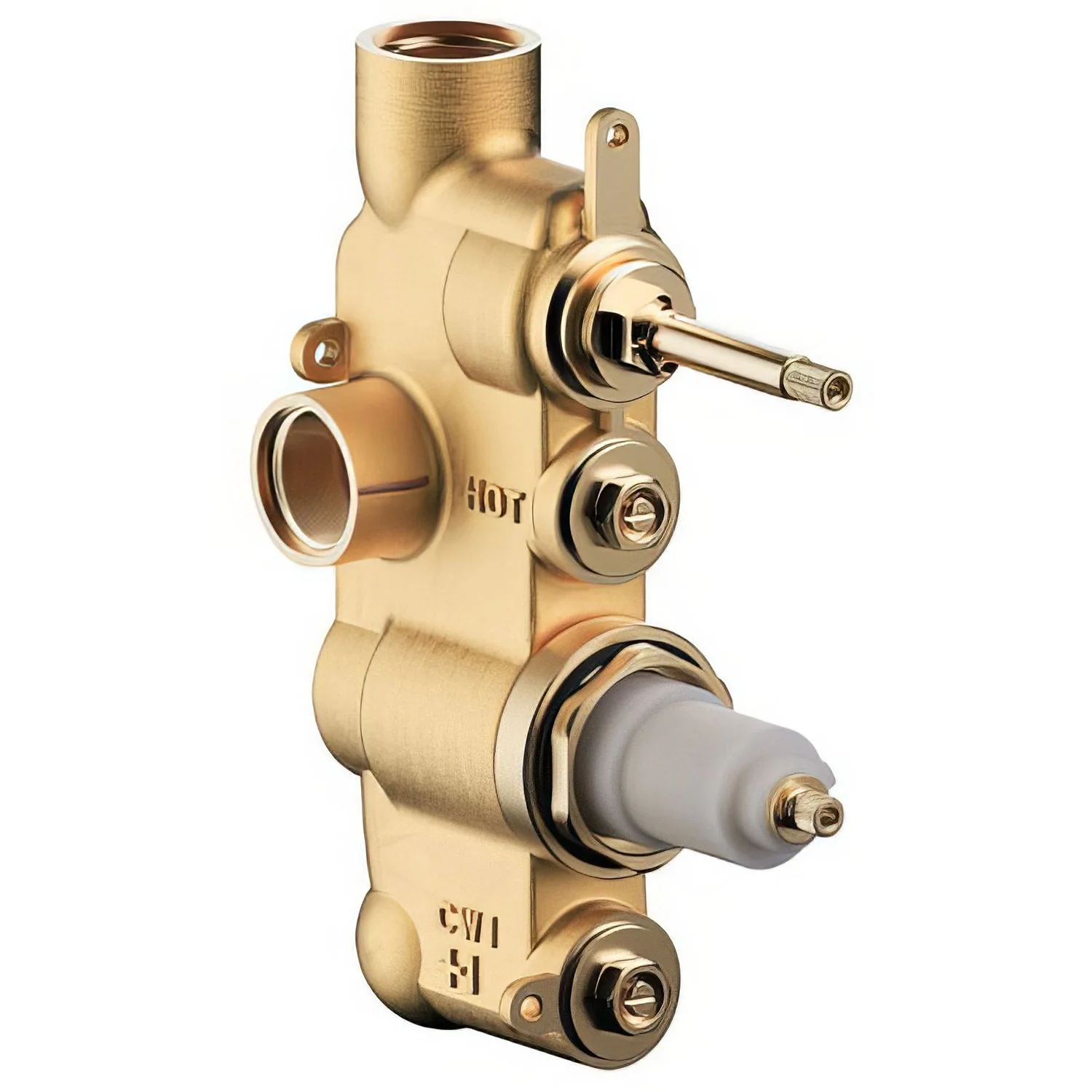

- Shower Valve Size: Width 66 x Depth 132 x Height 183mm
- Shower Valve Inlet and Outlet Connection: G3/4 Inch
- Diverter and Thermostatic Cartridge
- WRAS: 2203300, KIWA Reg 4: 2201704 KIWA and TMV2:- 2203756
- Standard BS EN 1111:2017
- Suitable for Medium Pressure Water System
- Slide rail comes with handset holder
- Shower Handset Size: Ø102 x Height 265mm
- Shower Handset Suitable for high-pressure water systems
- Shower Handset Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
- Shower Handset Comes with Shower Hose
- WRAS Approved: Shower Handset
- 3 Function Shower Handset
- Shower Handset G1/2" Inlet Connection
- Outlet Elbow Size: Ø51 x Depth 23mm
Assembling instruction for Shower Valve
Assembling instruction for shower kit
Technical Drawing

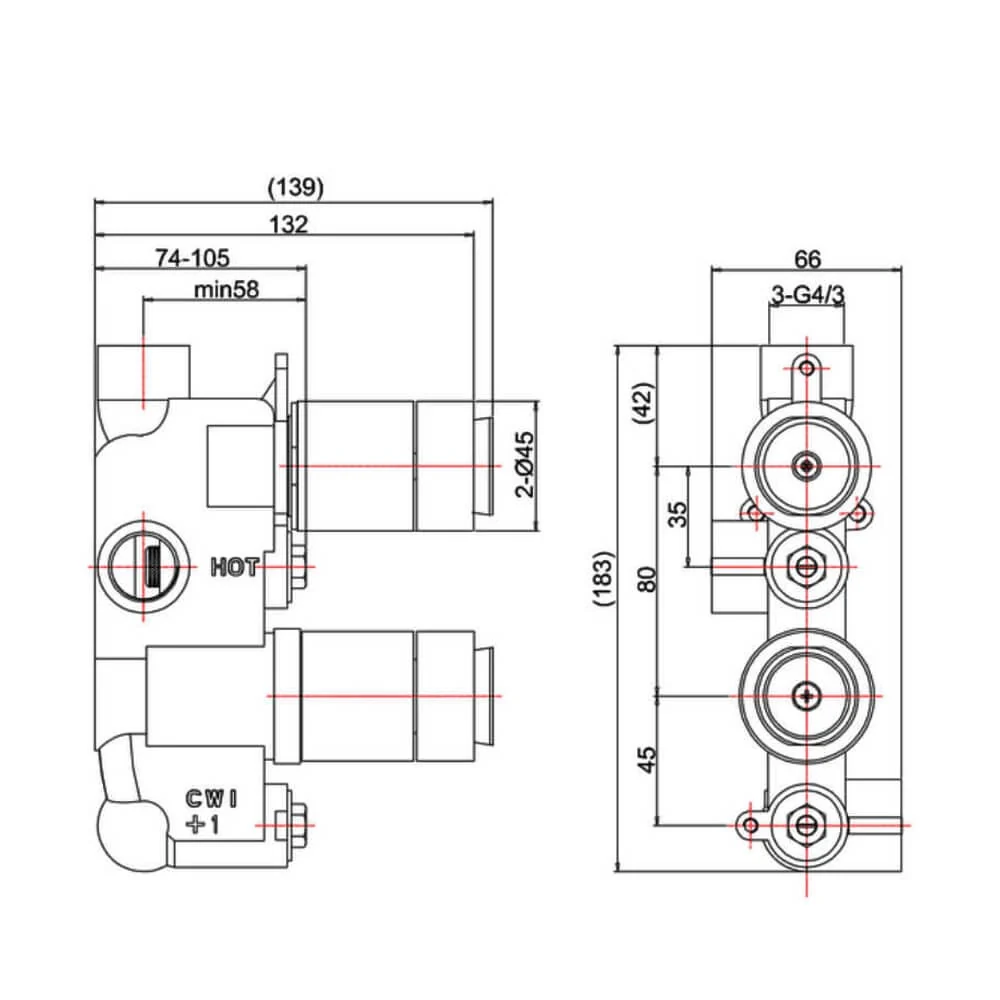

Shower Valve

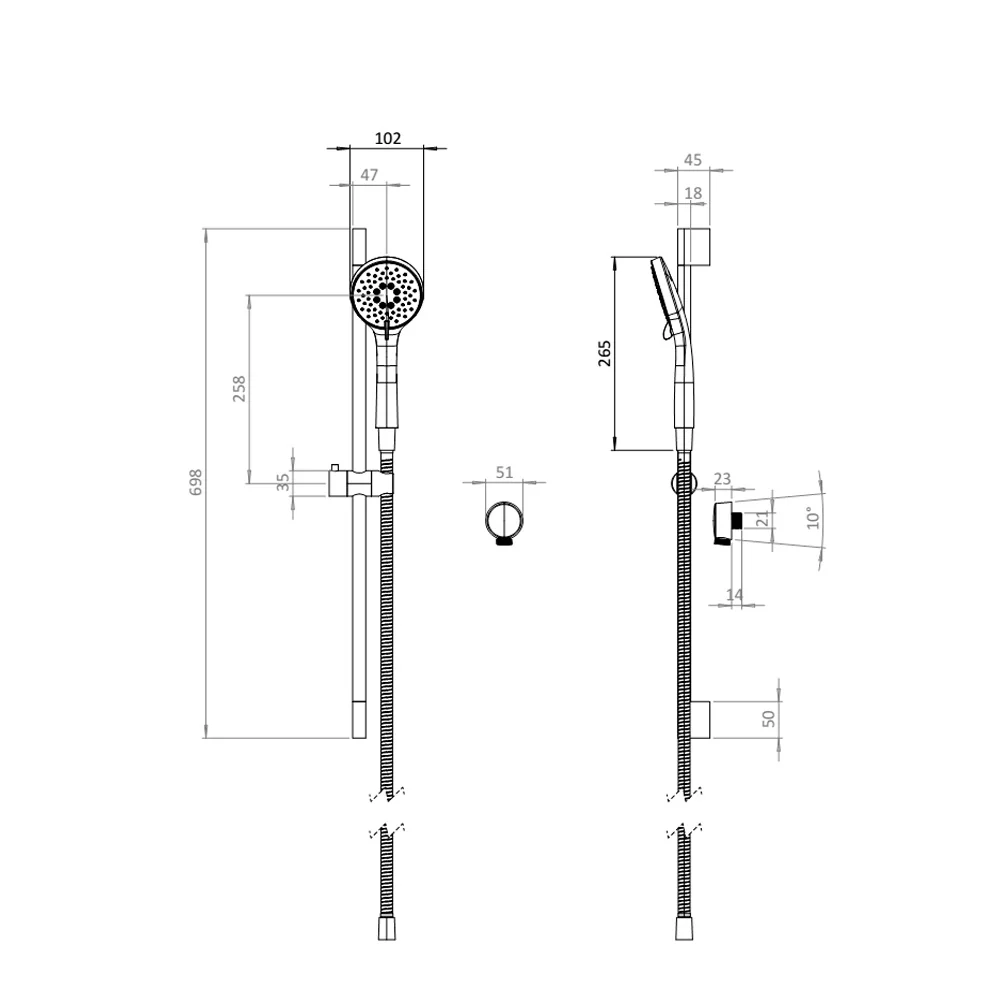

Shower Kit
