Crosswater Design Shower Set 3

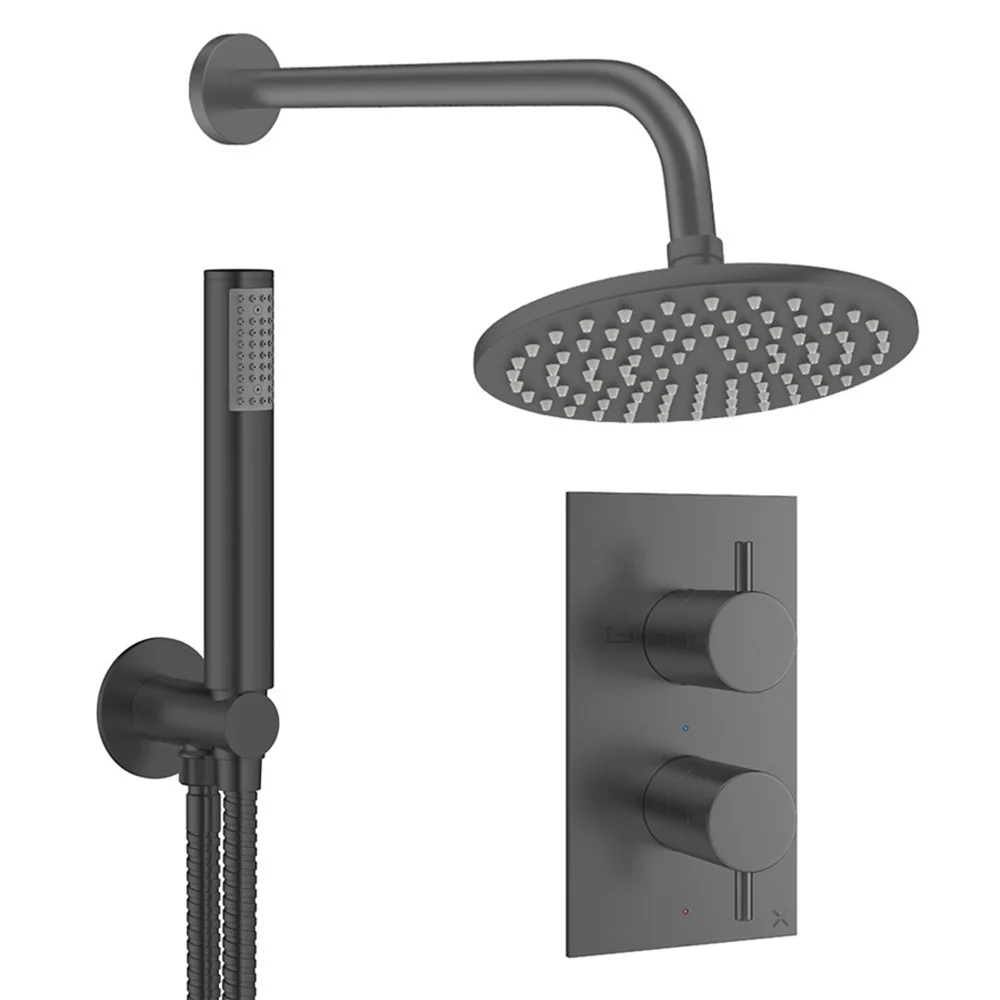

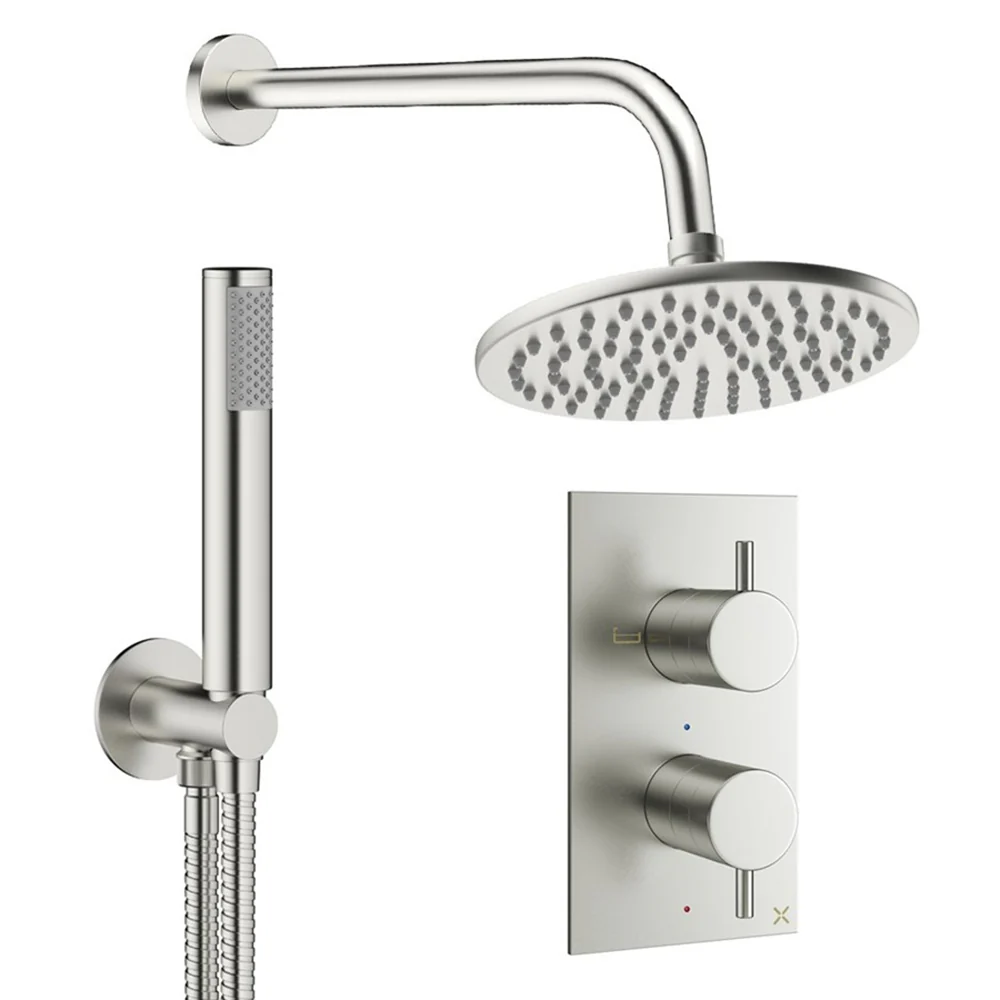

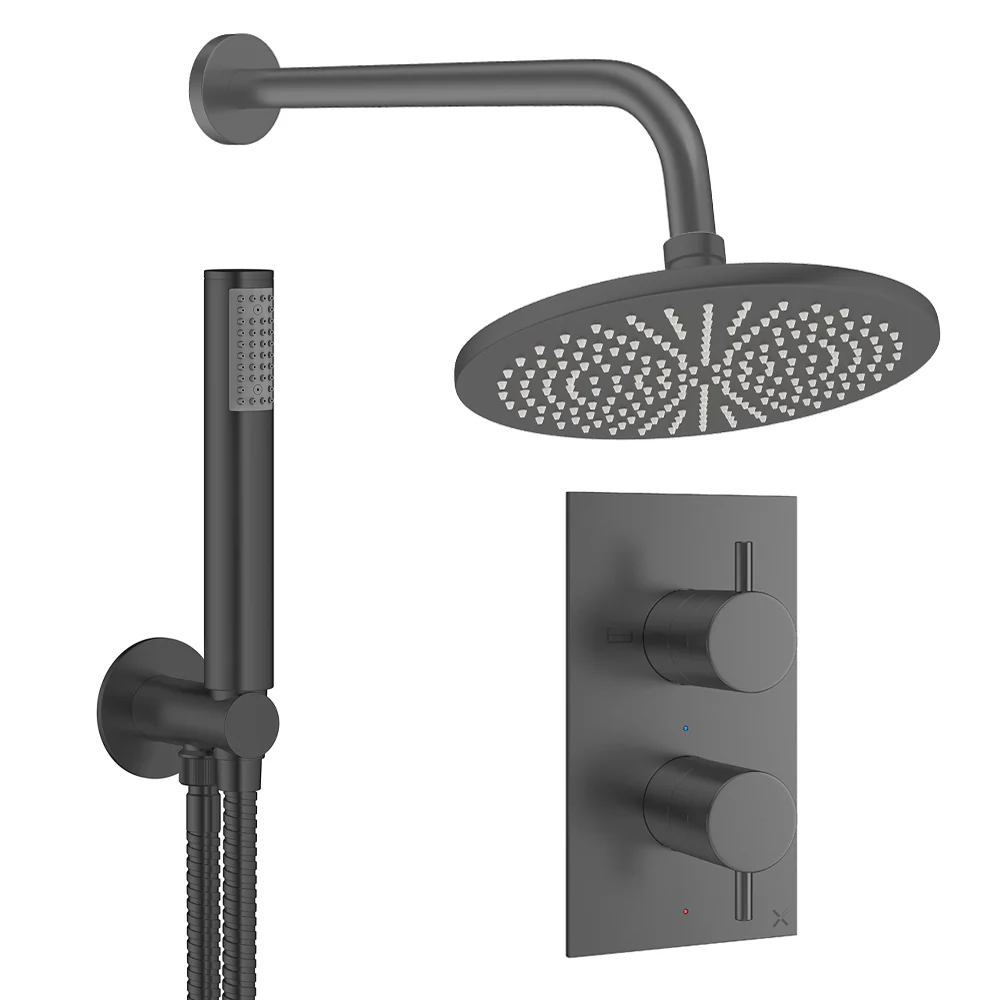

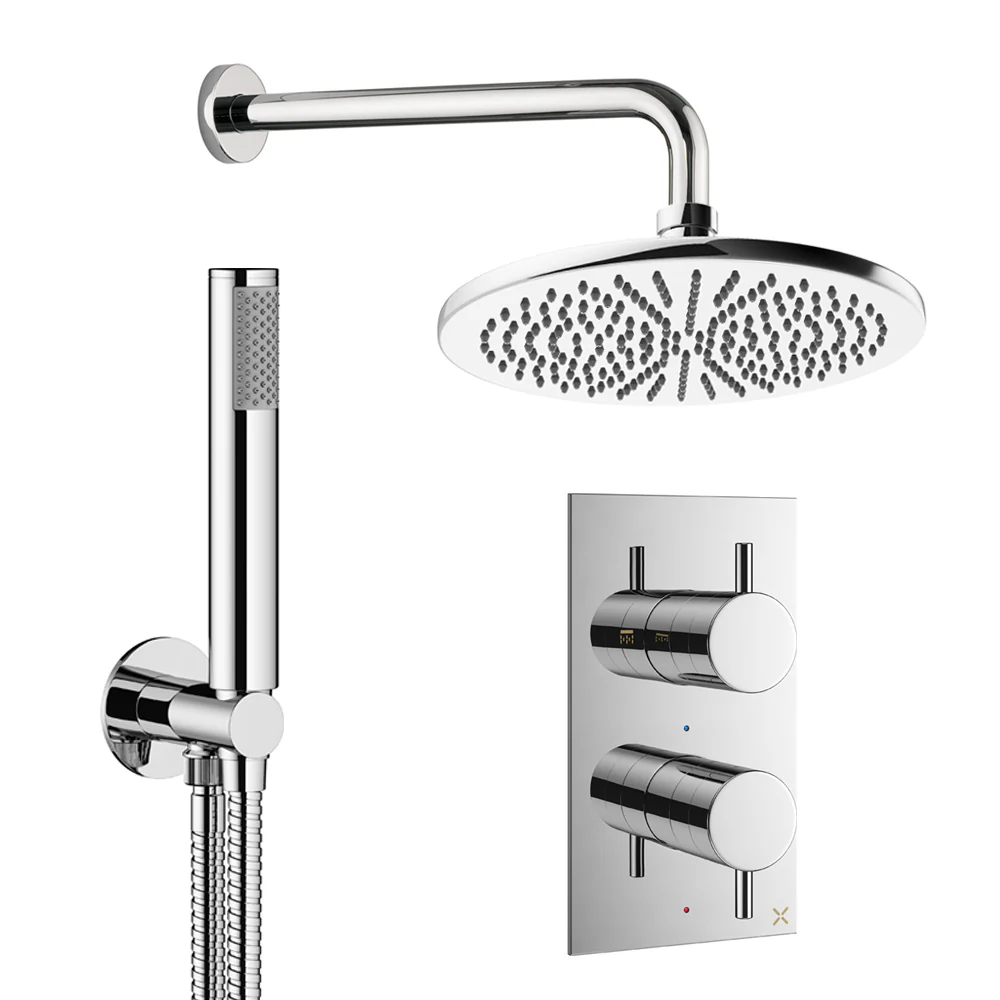

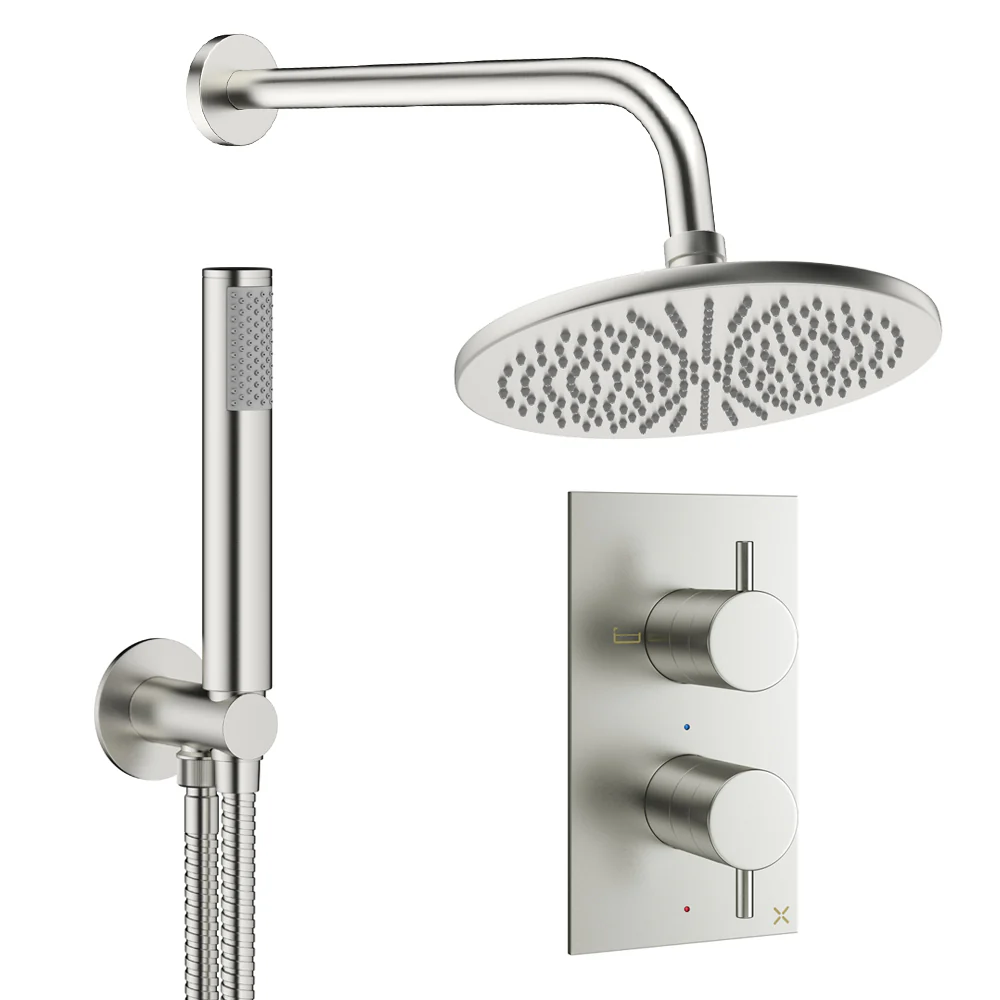

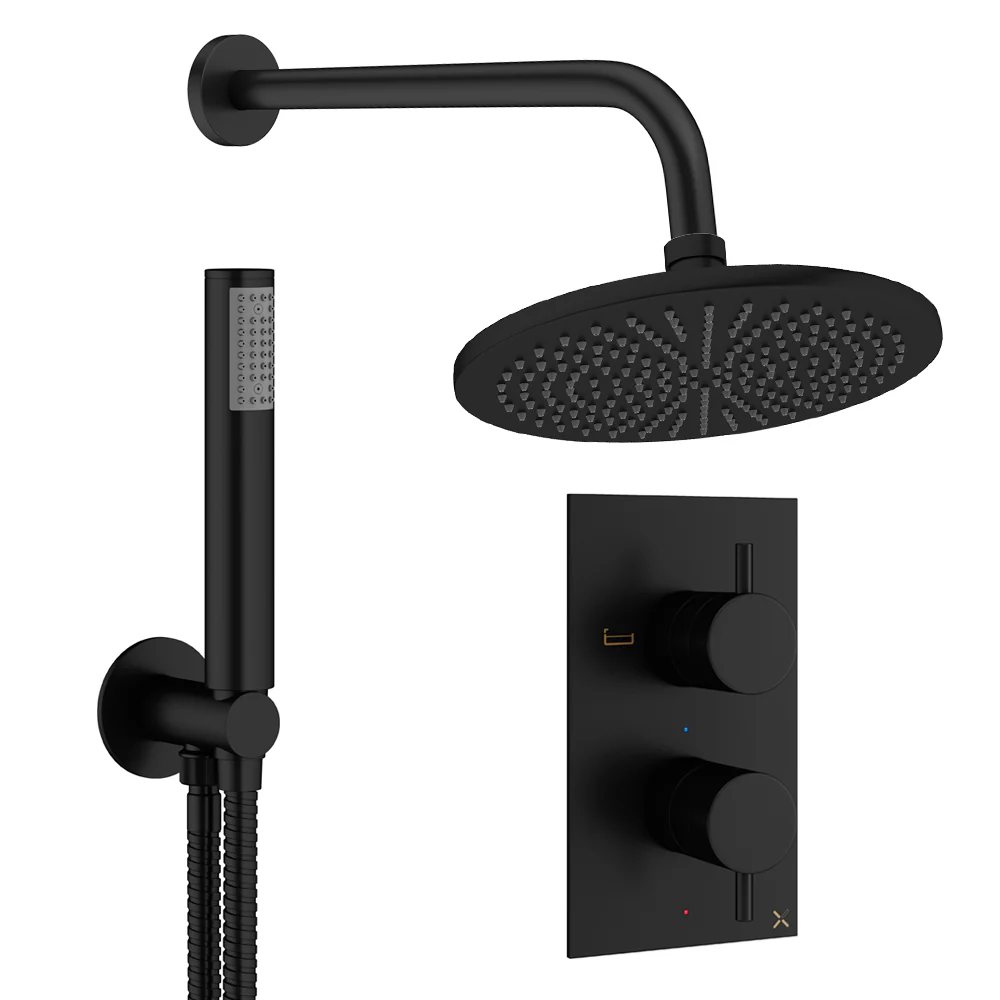

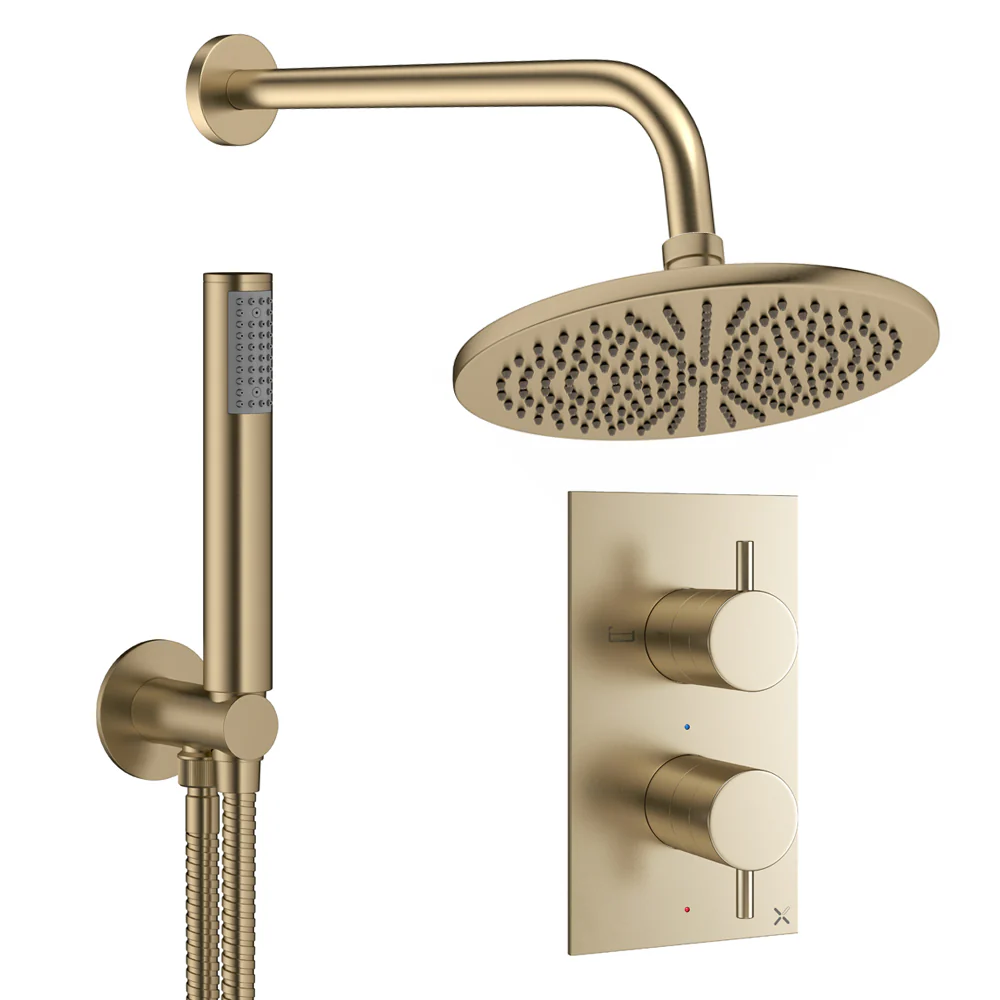

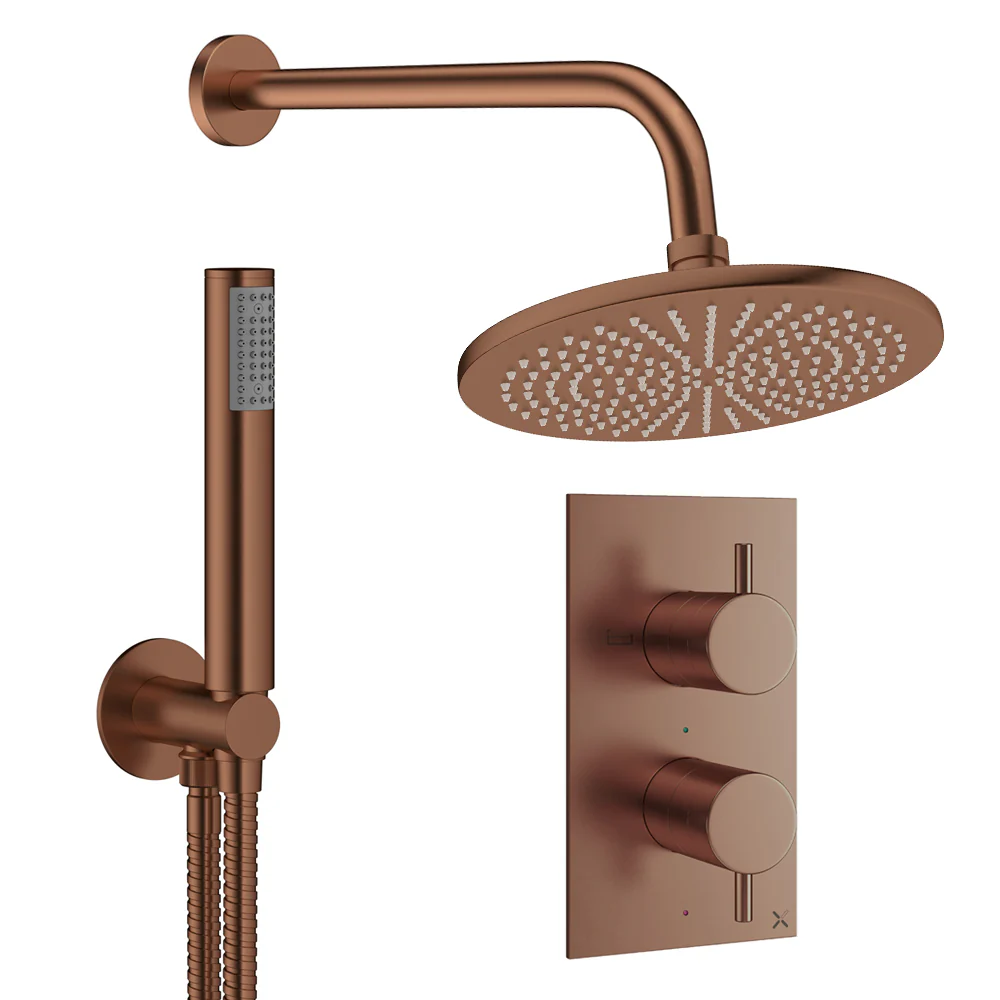

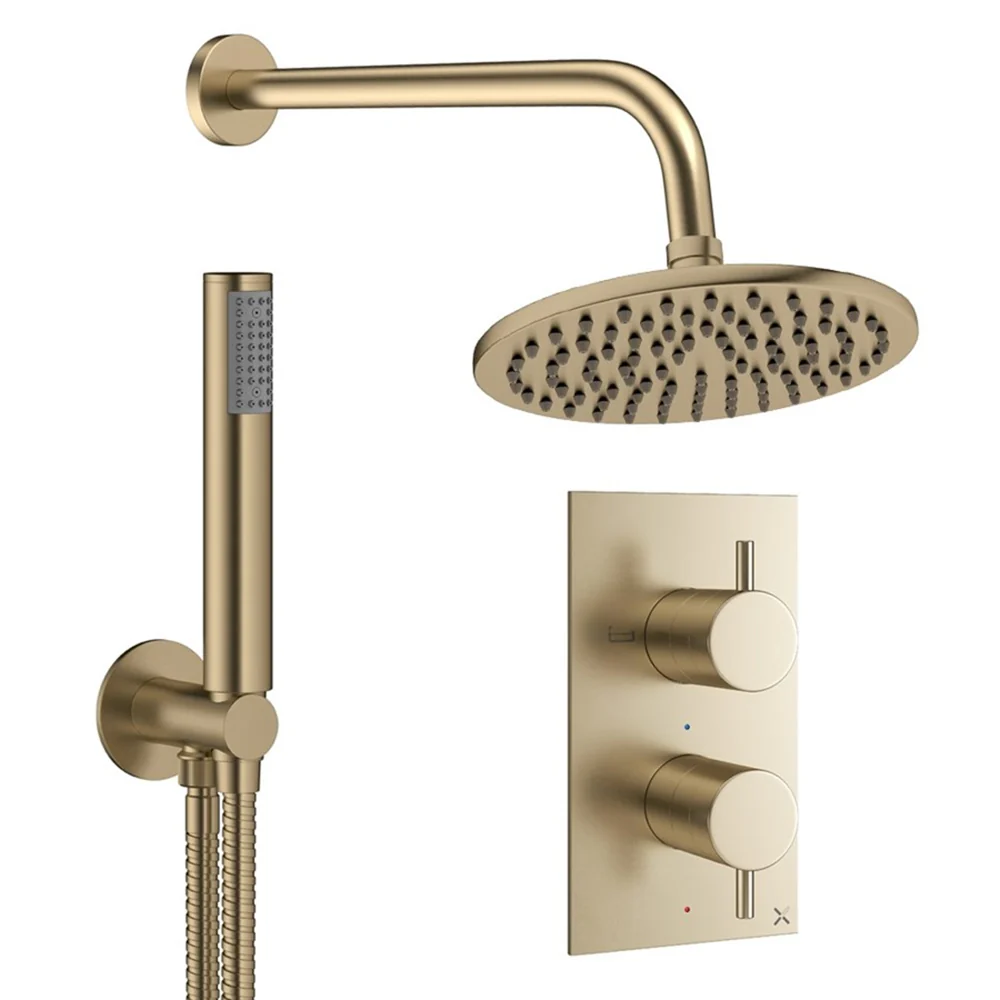

The Crosswater Design Shower Set 3 is a sophisticated thermostatic shower solution created to deliver both style and high-performance functionality in modern bathrooms. Featuring a sleek contemporary design, this complete shower set is crafted from durable brass and ABS materials, ensuring long-lasting reliability and a refined finish. Part of the Crosswater Design collection, this shower system includes everything needed for a premium shower experience. The set comes with a trim set, valve body, shower arm, overhead shower head, hand shower and hose, allowing for flexible and comfortable showering. With two outlets and dual knob handles, it provides smooth and precise control over both water flow and temperature. The built-in thermostatic temperature control ensures consistent comfort during every shower. It maintains a stable water temperature while offering protection against scalding and sudden temperature changes, enhancing safety for everyday use. The integrated two-way diverter allows you to easily switch between the overhead shower and the hand shower for added convenience. Designed for practicality as well as performance, the valve system features front access for easy servicing and maintenance. The shower valve measures 66mm in width, 132mm in depth and 184mm in height, with G3/4 inch inlet and outlet connections. The backplate measures 120mm by 215mm, creating a clean and modern wall-mounted installation.
The shower arm extends 330mm, supporting the overhead shower head which features a G1/2 inch inlet connection and a height of 58mm. The shower head is available in sizes with thicknesses of 5.8mm for the 200mm version and 8mm for the 300mm version, and it is KIWA approved for quality assurance. The hand shower measures Ø28mm in diameter and 201mm in height and includes a shower hose. It is WRAS approved and designed for medium-pressure water systems, requiring a minimum operating pressure of 0.5 bar. This shower set operates within a water pressure range of 0.5 to 5 bar, making it suitable for medium-pressure water systems. Manufactured to meet the BS EN 1111:2017 standard, it provides dependable thermostatic performance and efficient water control. With its elegant design, advanced safety features and complete shower setup, the Crosswater Design Shower Set 3 is an excellent choice for those seeking a modern, reliable and comfortable showering solution. It is backed by a 15 year warranty for added peace of mind. Images are shown for illustration purposes only.
Specifications:
- Warranty: 15 Years
- Brand: Crosswater
- Collection: Design
- Style: Modern
- Material: Brass/ABS
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 0.5 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Trim Set, Valve Body, Shower Arm, Shower Head, Hand Shower and Hose
- Easy and accurate control of water flow and temperature is provided for consistent comfort
- Protection against scalding and sudden temperature changes is built in for added safety
- Front access is provided to allow easy servicing and maintenance

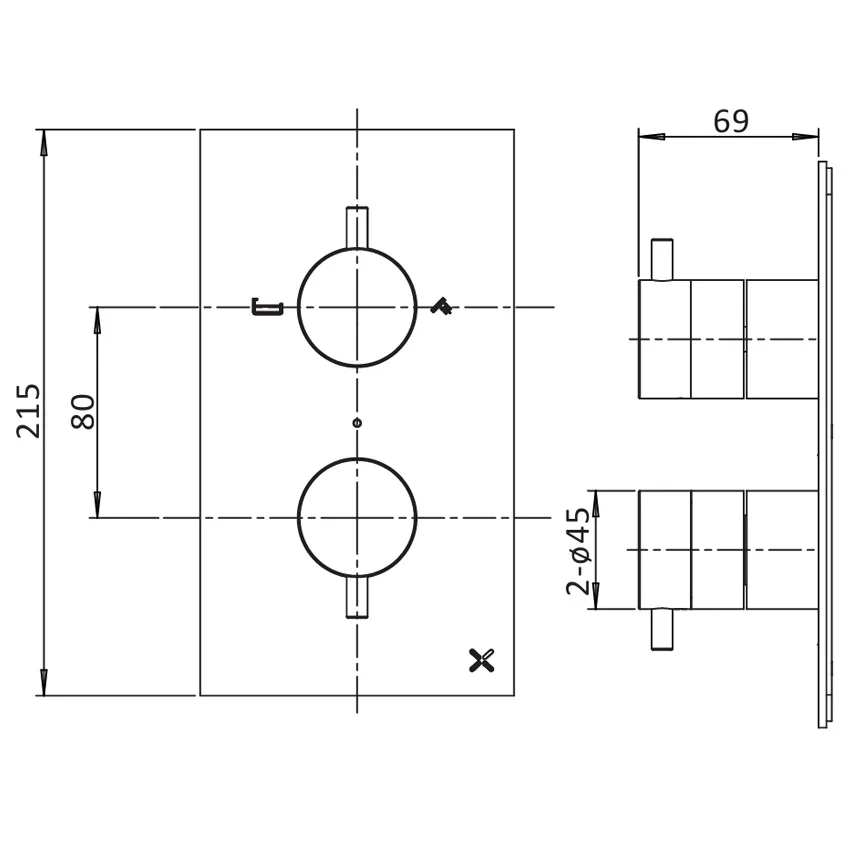

- Size of Backplate: 120 x 215mm
- Thermostatic Temperature Control
- Comes with Collar

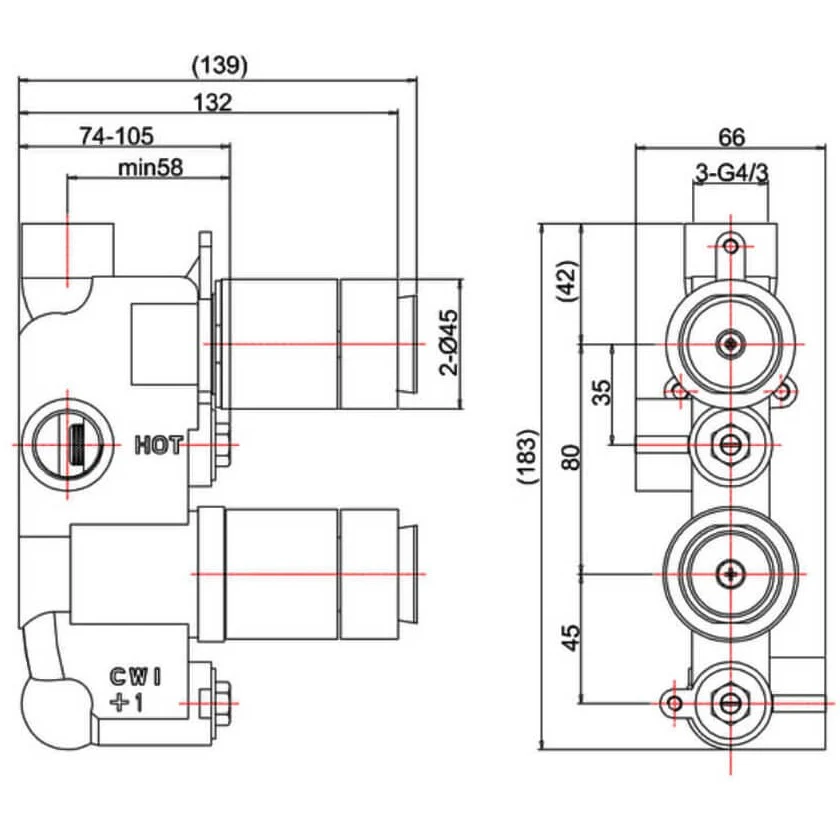

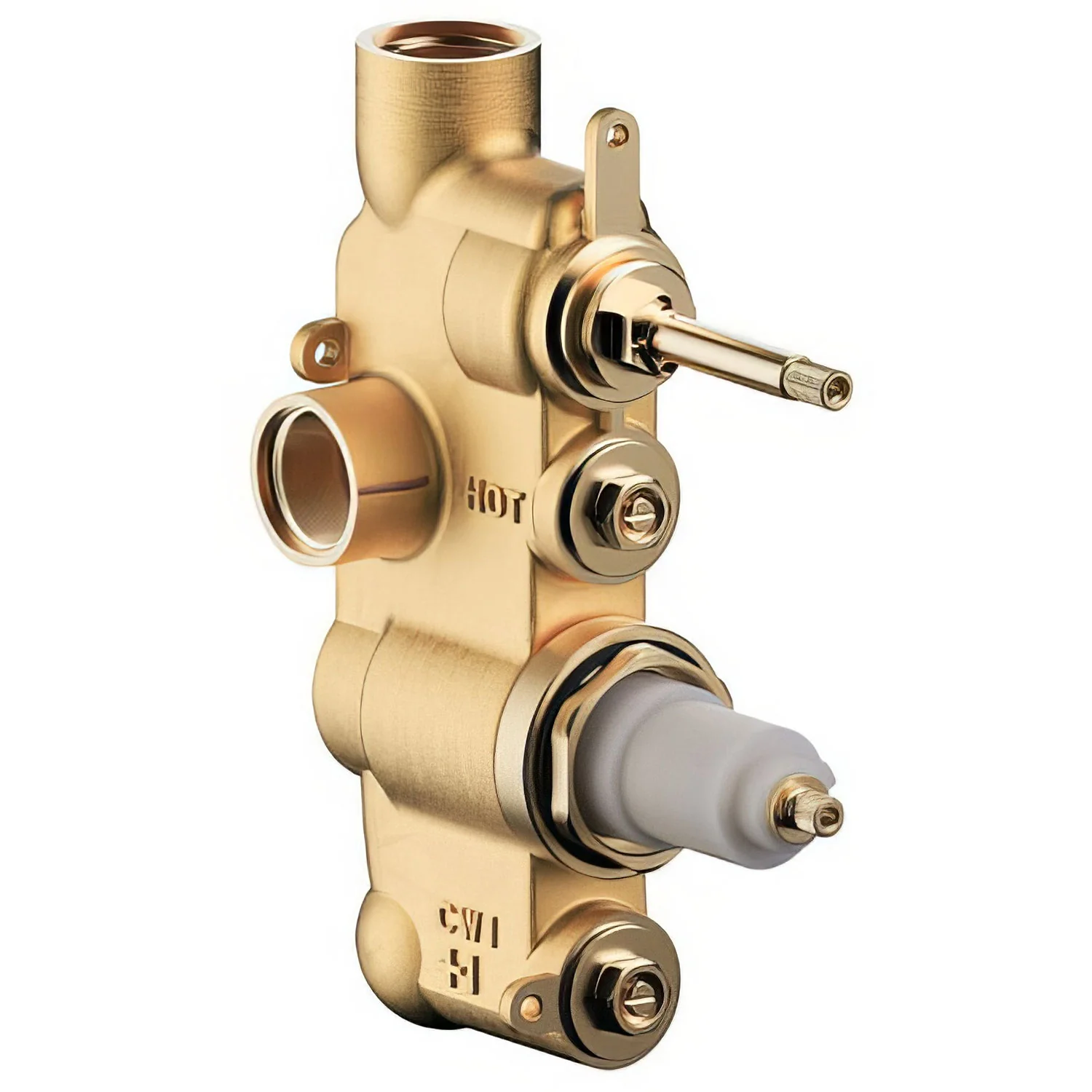

- Shower Valve Size: Width 66mm x Depth 132mm x Height 184mm
- Shower Valve Inlet and Outlet Connection: G3/4 Inch
- 2-Way Diverter and Thermostatic Cartridge
- Standard BS EN 1111:2017

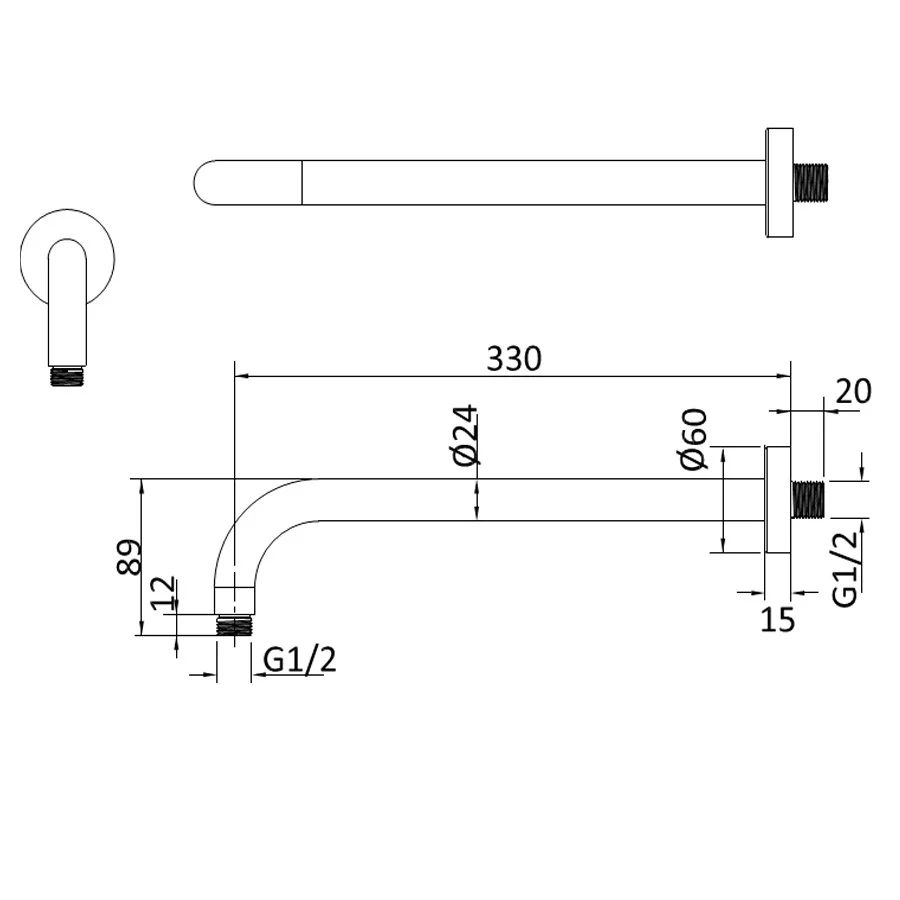

- Shower arm length: 330mm
- Suitable for Medium Pressure Water System
- Shower Head G1/2" Inlet Connection
- Shower Head Height: 58mm
- Shower Head Thickness: 200mm: 5.8 and 300mm: 8mm
- Shower Head KIWA Approved: 2312748

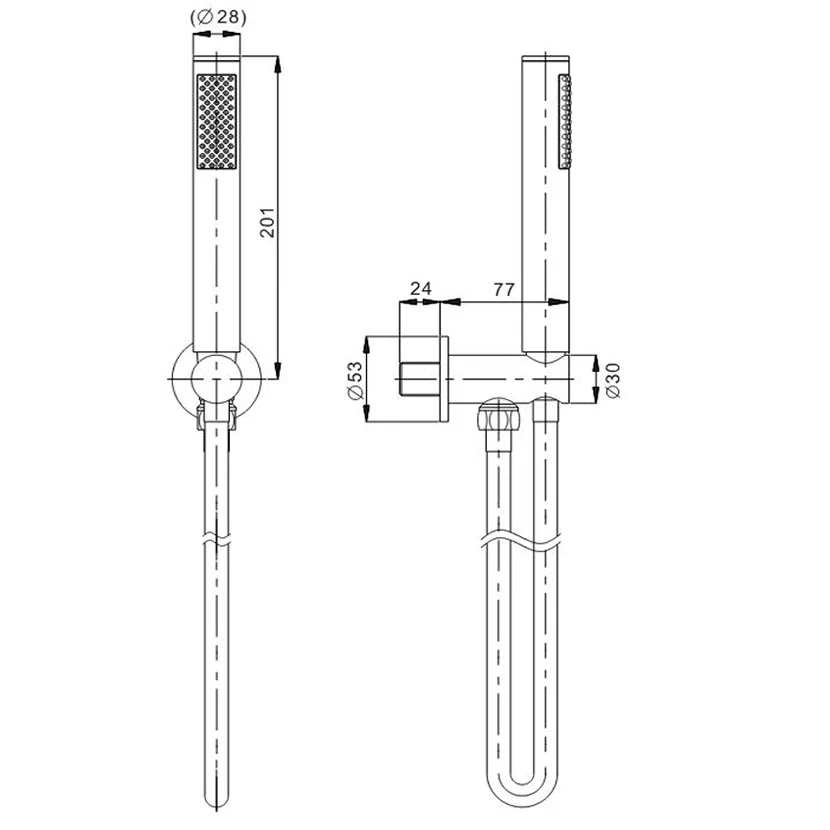

- Shower Handset Size: Size: Ø28 x Height 201mm
- Shower Handset Suitable for Medium-pressure water systems
- Shower Handset Requires a Minimum 0.5 Bar Operating Water Pressure
- Shower Handset Comes with Shower Hose
- WRAS Approved: Shower Handset
Assembling instruction for 200mm Shower Head
Assembling instruction for 300mm Shower Head
Assembling instruction for Shower Valve
Assembling instruction for Shower Kit
Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Technical Drawing
Shower Valve
