Crosswater Design Shower Set 6

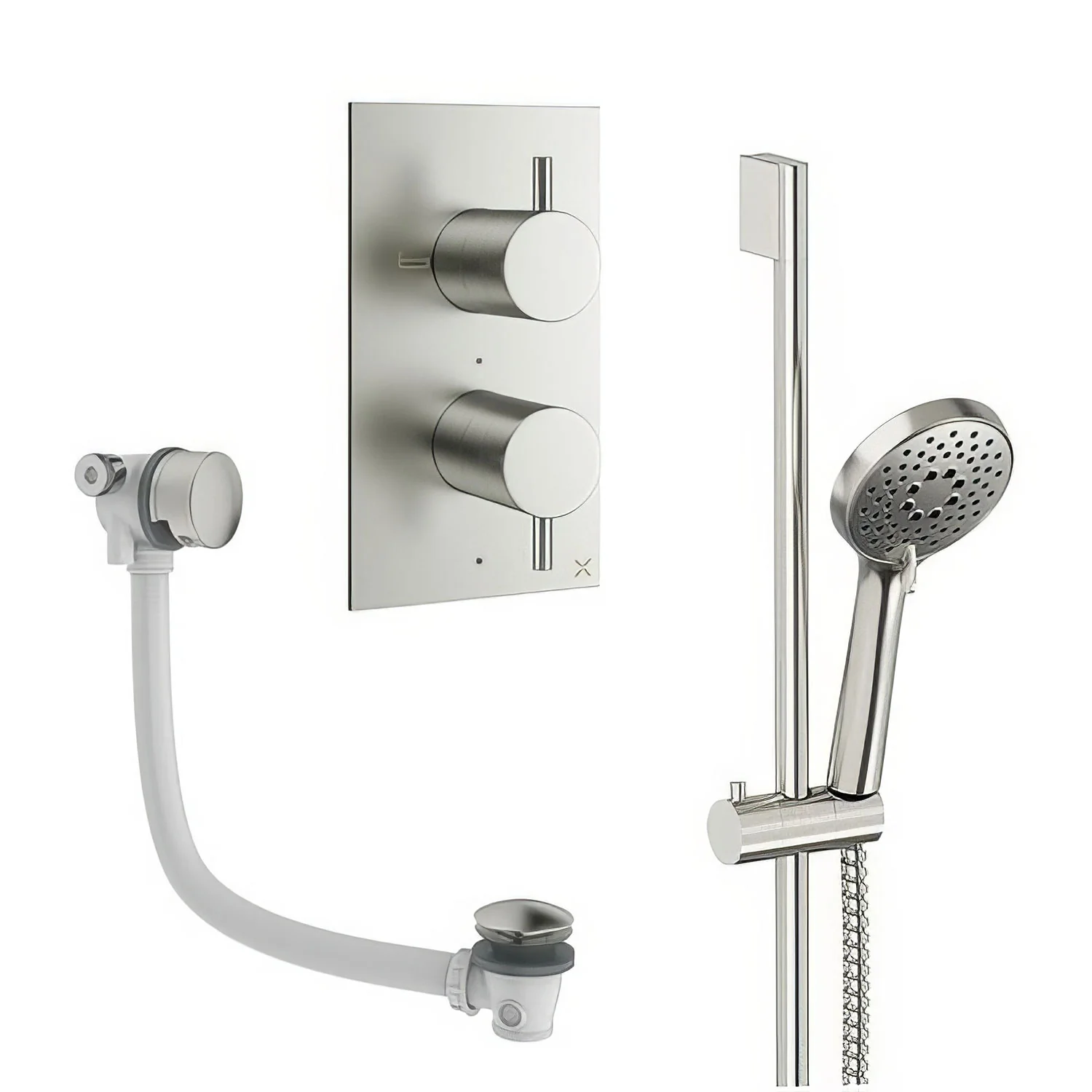

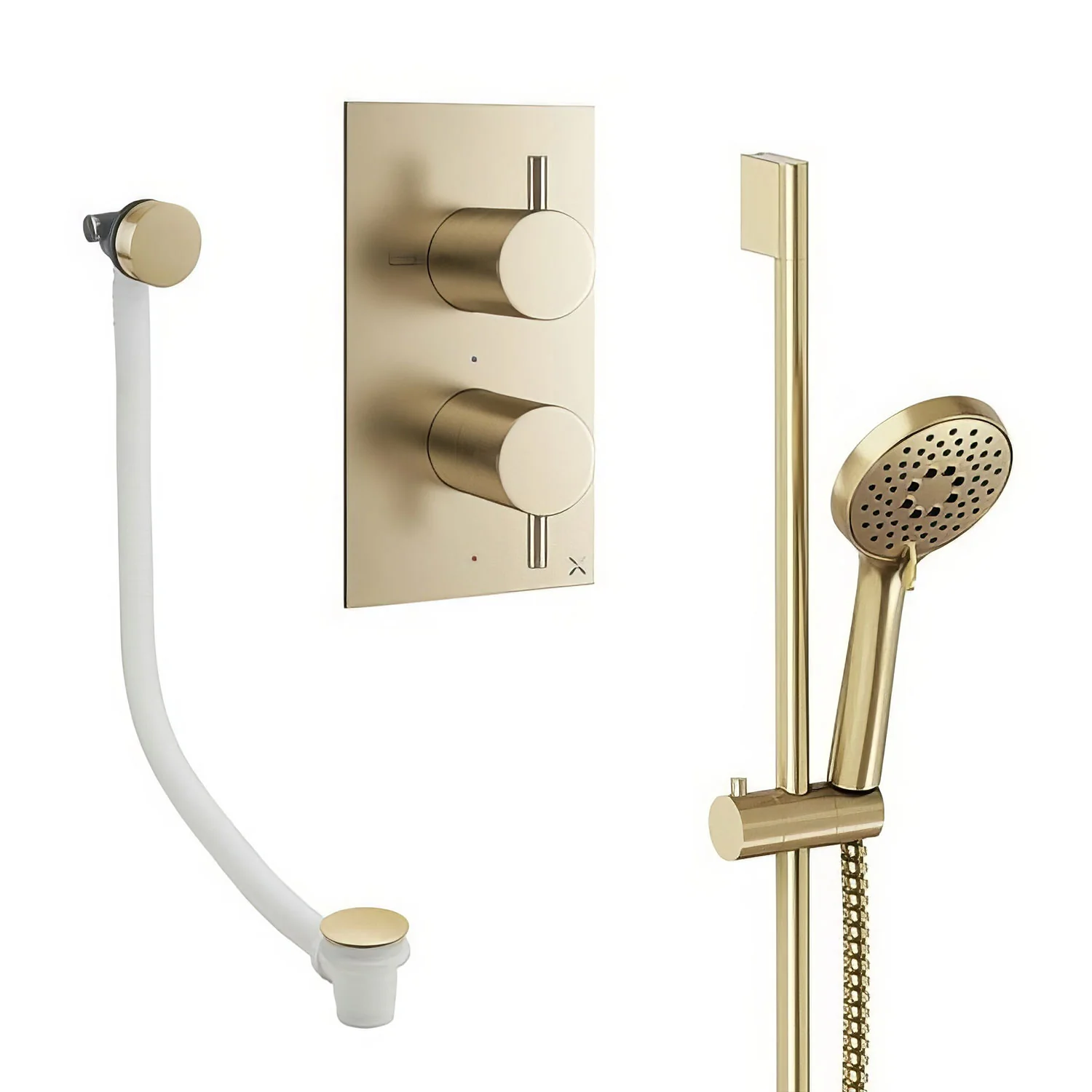

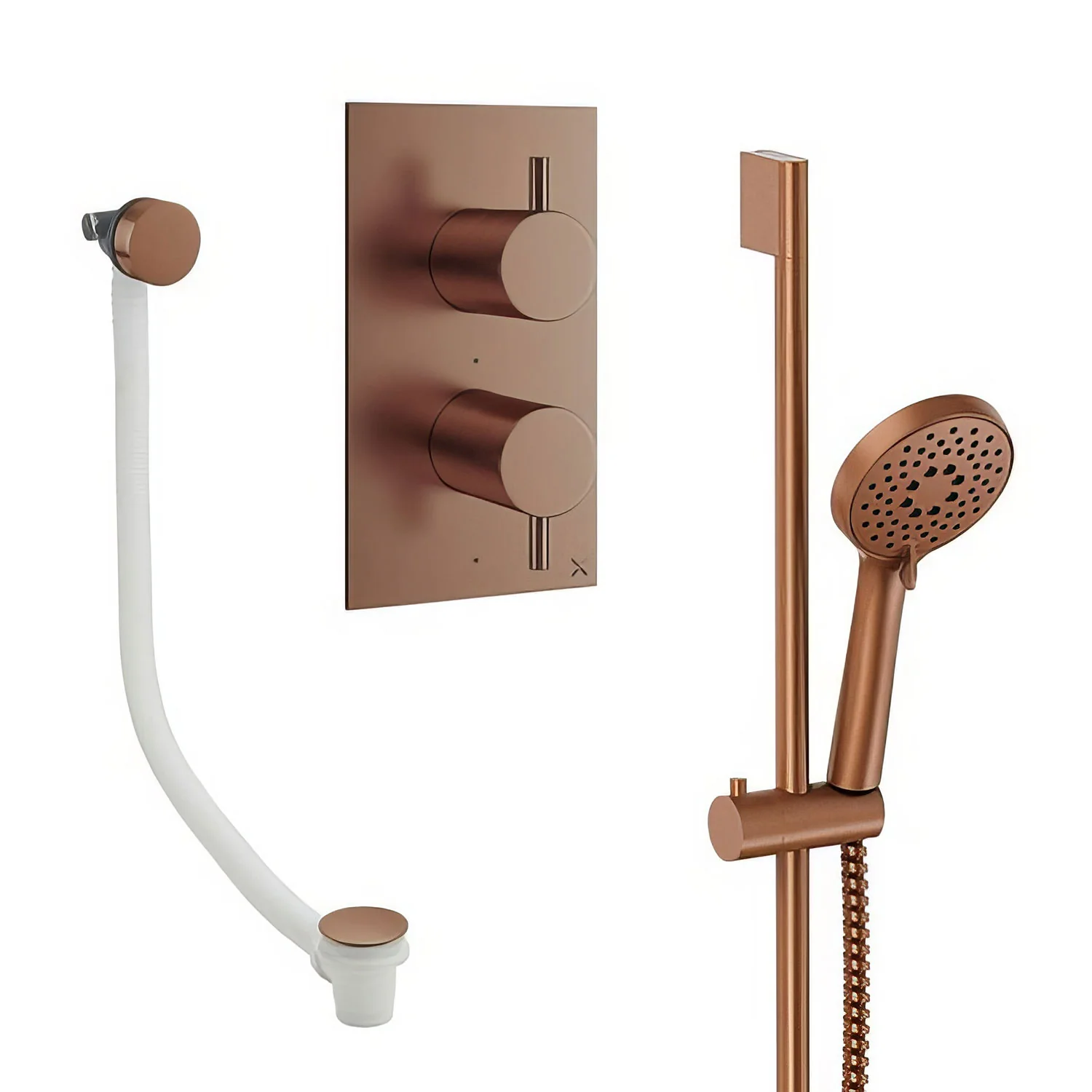

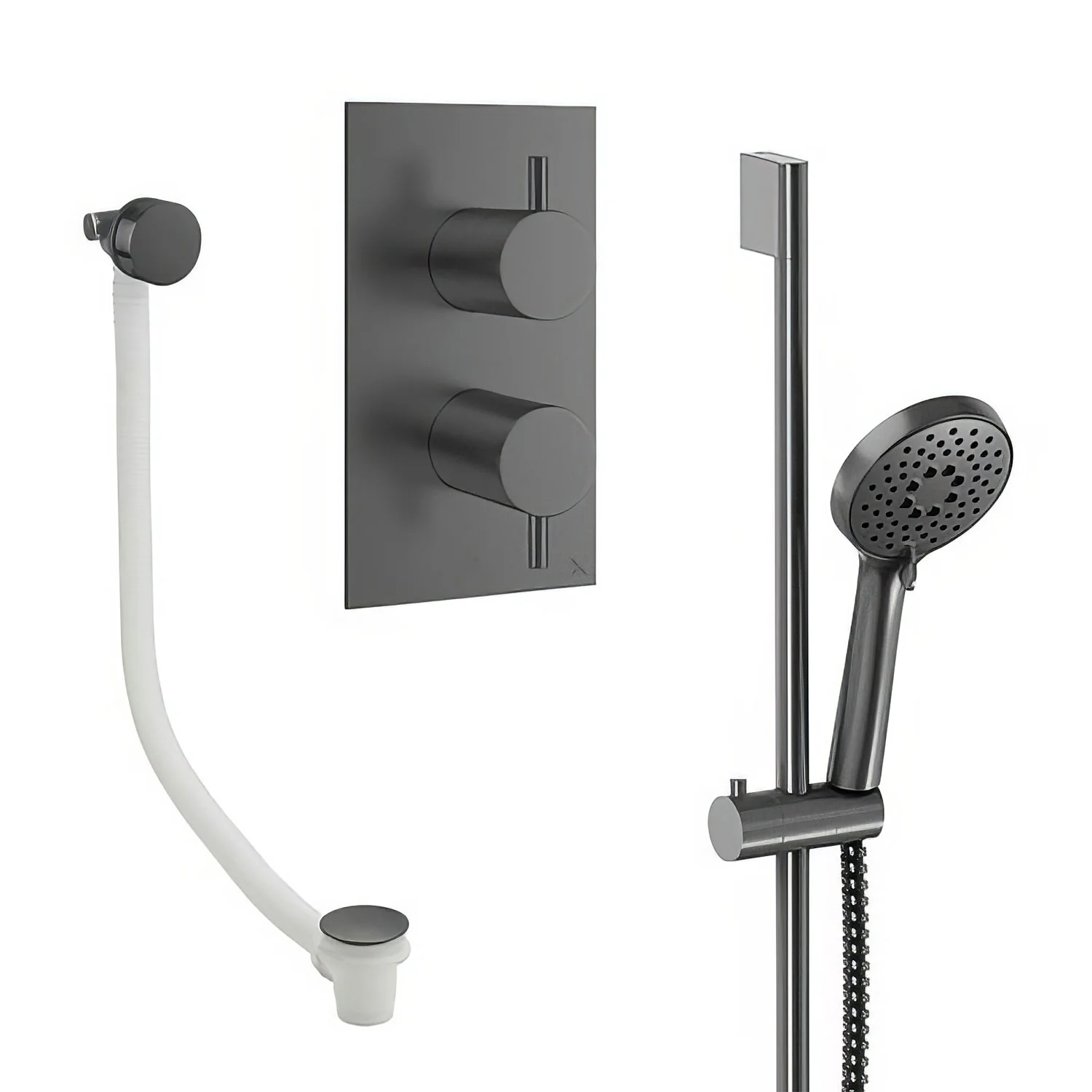

The Crosswater Design Shower Set 6 is a complete and stylish bathing solution designed to bring modern functionality and comfort to contemporary bathrooms. Crafted from high-quality brass and ABS materials, this shower set combines durability with a sleek and refined appearance, making it a practical and elegant choice for everyday use. Part of the Crosswater Design collection, this versatile shower set includes a trim set, valve body, slide rail, round hand shower with hose, outlet elbow, bath filler and a click clack waste. This all-in-one configuration provides both showering and bathing functionality, offering convenience and efficiency in a single coordinated system. The system features two knob handles and two outlets, allowing smooth switching between functions while delivering precise control over water flow and temperature. Thermostatic temperature control ensures a consistent and comfortable showering experience while built-in safety protection helps prevent scalding and sudden temperature changes. Designed for ease of use and maintenance, the valve includes front access, allowing convenient servicing without extensive installation work. The backplate measures 120mm in width and 215mm in height, giving the installation a clean and streamlined finish on the wall.

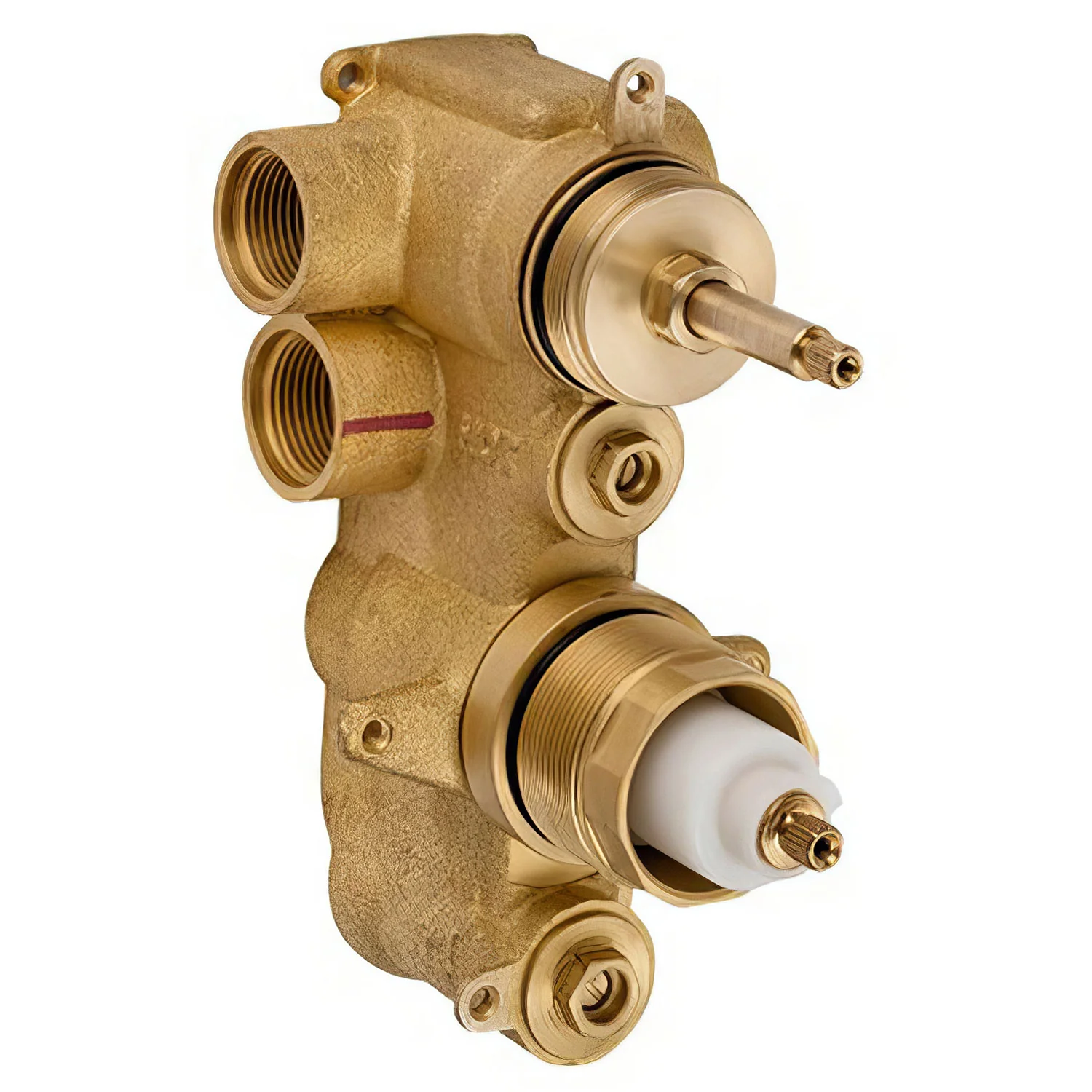

The shower valve has a vertical orientation and measures 66mm in width, 132mm in depth and 184mm in height. It uses G3/4 inch inlet and outlet connections and includes a 2-way diverter with a thermostatic cartridge for efficient water control. The system complies with the BS EN 1111:2017 standard and operates within a minimum water pressure of 0.5 bar and a maximum of 5 bar. The slide rail measures 45mm in depth and 698mm in height, allowing easy adjustment of the hand shower position to suit different users. The round hand shower measures 102mm in diameter and 265mm in height and offers three spray functions for a more flexible and enjoyable showering experience. It features a G1/2 inch inlet connection and is WRAS approved, ensuring reliable performance and quality standards. An outlet elbow measuring 51mm in diameter with a depth of 23mm is also included, providing a secure and neat connection for the shower hose. Completing the set is a 3-in-1 bath filler supplied with a click clack waste, offering a practical solution for filling the bath with ease. The bath filler measures 332mm in width and 130mm in height, with a length of 250mm and a spout projection of 41mm. It connects via a 1/2 inch inlet and is designed to integrate seamlessly with the shower system for a coordinated bathroom installation. With its modern design, advanced thermostatic control and comprehensive set of components, the Crosswater Design Shower Set 6 delivers both style and performance. Backed by a 15 year warranty, it offers long-lasting reliability and comfort for everyday bathroom use.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Design
- Style: Modern
- Material: Brass/ABS
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 0.5 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Trim Set, Valve Body, Slide Rail, Round Hand Shower with Hose, Outlet Elbow, Bath Filler and Click Clack Waste
- Easy and accurate control of water flow and temperature is provided for consistent comfort
- Protection against scalding and sudden temperature changes is built in for added safety
- Front access is provided to allow easy servicing and maintenance
- Size of Backplate In [mm]: 120mm x 215mm [Width x Height]
- Thermostatic Temperature Control
- Shower Handset and hose are included

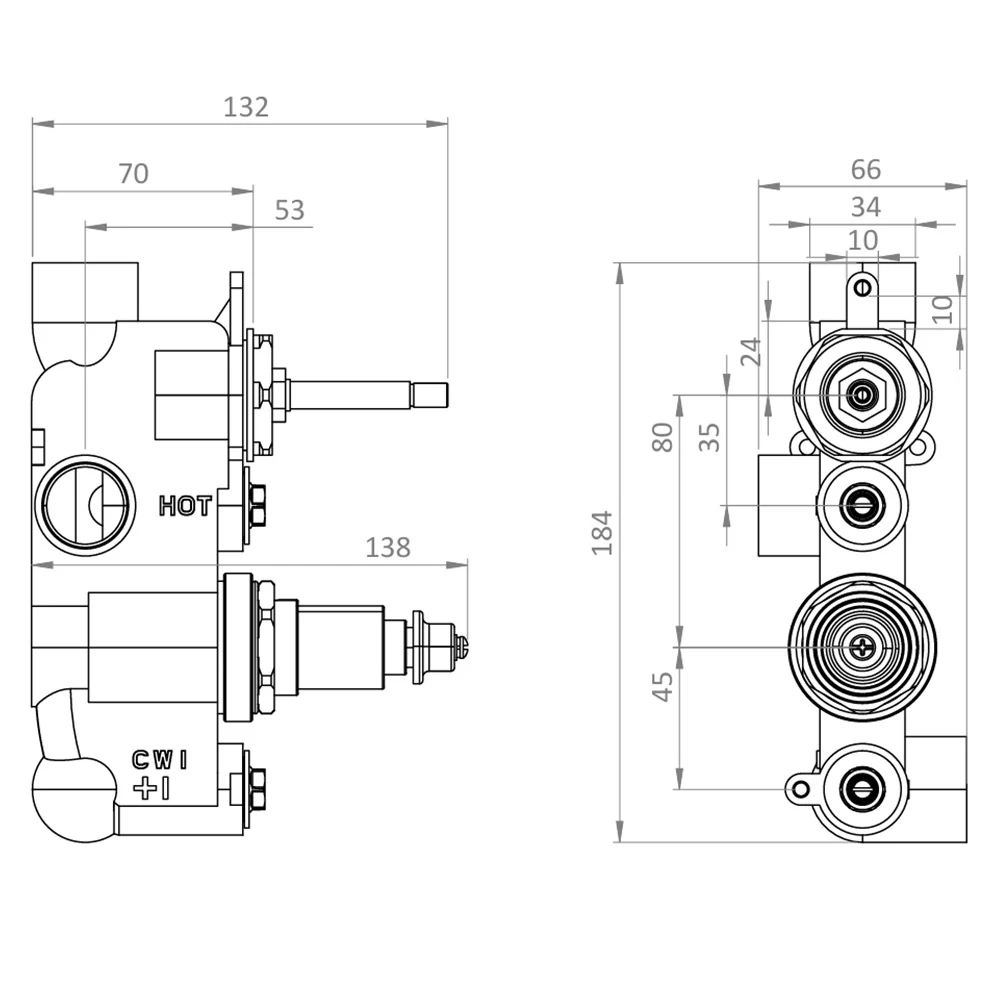

- Shower Valve Size: Width 66mm x Depth 132mm x Height 184mm
- Shower Valve Orientation: Vertical
- Shower Valve Inlet and Outlet Connection: G3/4 Inch
- 2-Way Diverter and Thermostatic Cartridge
- Standard BS EN 1111:2017

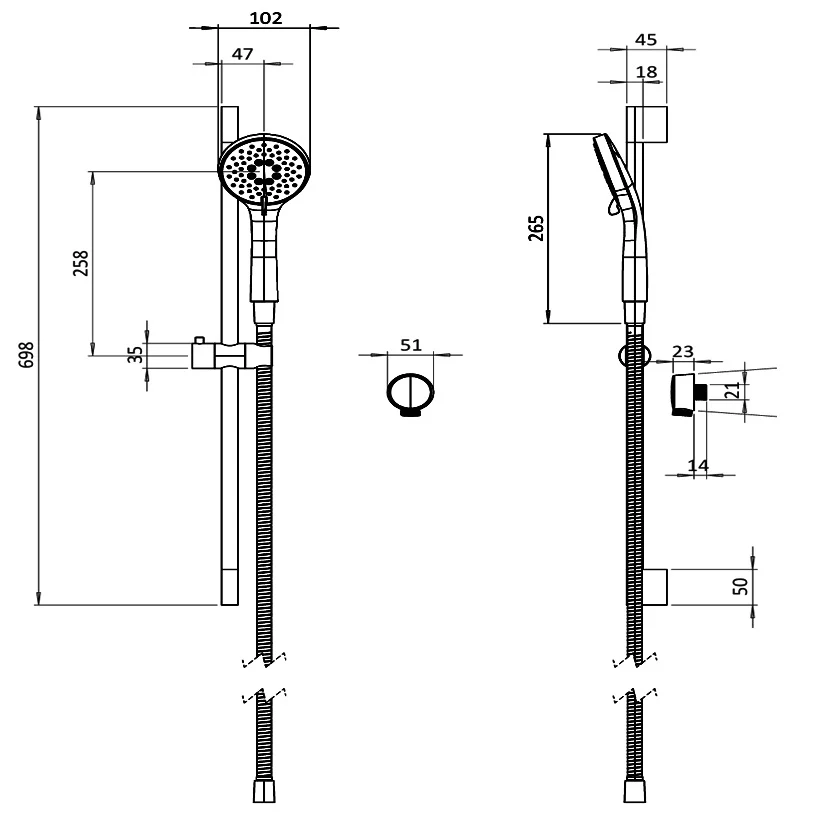

- Size of Slide Rail: Depth 45 x Height 698mm
- Shower Handset Size: Ø102 x Height 265mm
- Shower Handset WRAS Approved: 240688010
- Shower Handset Function: 3
- Shower Handset G1/2" Inlet Connection
- Outlet Elbow Size: Ø51 x Depth 23mm
- 3-In-1 Bath Filler
- Supplied with Click Clack Waste
- Bath Filler Size (mm) Width 332 x Height: 130mm
- Bath Filler Length: 250mm
- Bath Filler Spout Projection: 41mm
- Bath Filler Inlet Connection: 1/2"
Assembling instruction for shower valve
Assembling instruction for Shower kit
Assembling instruction for Bath Filler waste
Datasheet for bath filler waste
Technical Drawing
Shower Valve
